Low & Intermediate Servo: Disassembly

  1. Remove the spring retainer.

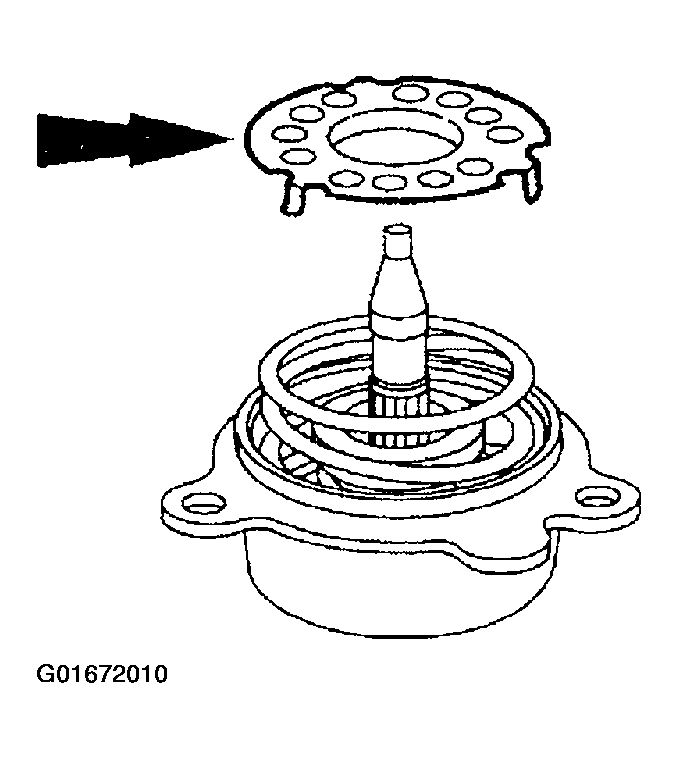

    2. Fig 1: Removing Spring Retainer
    G01672010Courtesy of FORD MOTOR CO.
  2. Remove the spring.

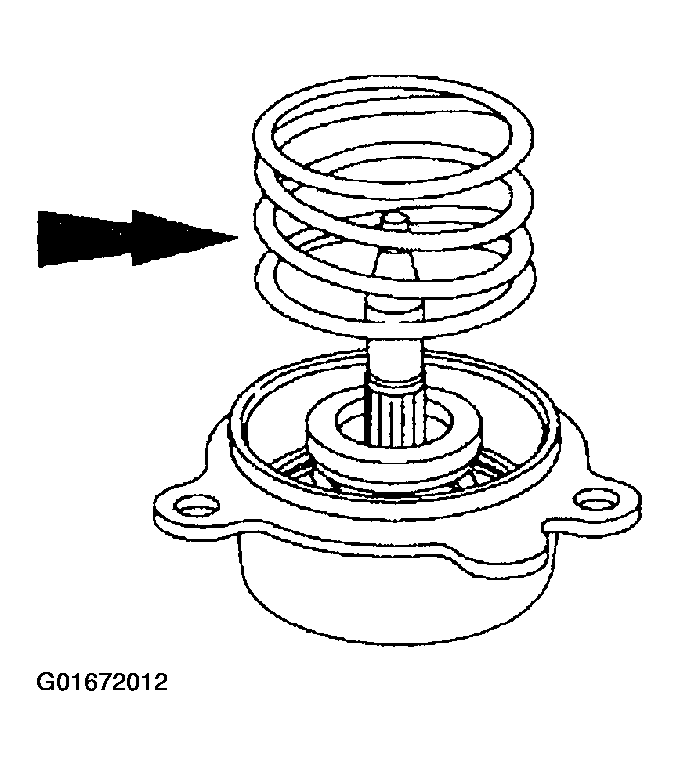

    3. Fig 2: Removing Low & Intermediate Servo Spring
    G01672011Courtesy of FORD MOTOR CO.
  3. Remove the servo and rod from the cover.
    4. Fig 3: Removing Servo & Rod From Cover
    G01672012Courtesy of FORD MOTOR CO.
  4. Remove the retaining clip.

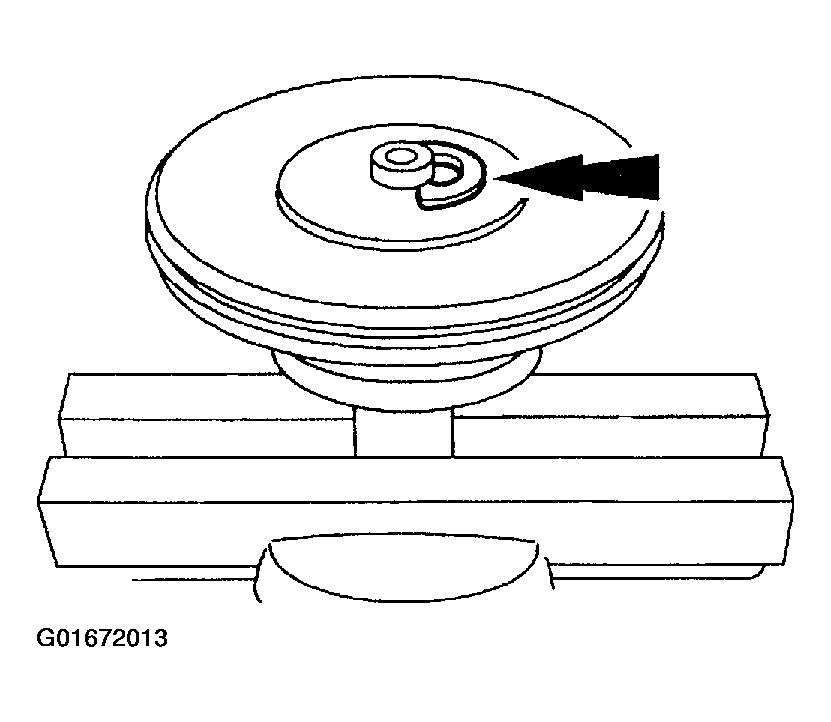

    5. Fig 4: Removing Retaining Clip
    G01672013Courtesy of FORD MOTOR CO.
  5. Remove the servo piston and spring.

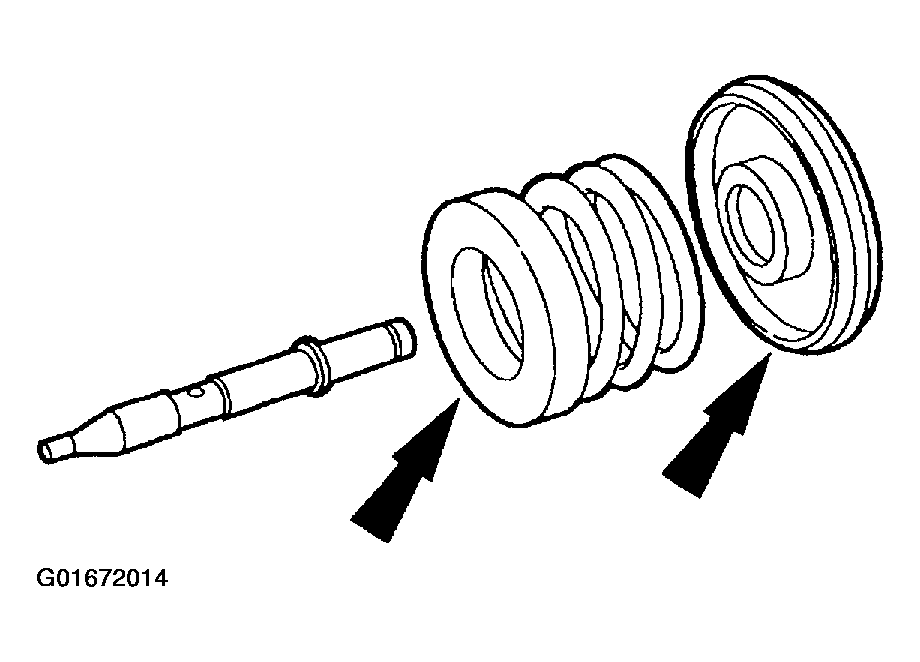

Fig 5: Remove Servo Piston & Spring
G01672014Courtesy of FORD MOTOR CO.
