Low & Intermediate Servo: Assembly

    NOTE: During the assembly procedure lubricate the seals with petroleum jelly.
  1. To assemble, reverse the disassembly procedure. Install a new servo piston seal, cover seal, and gasket.

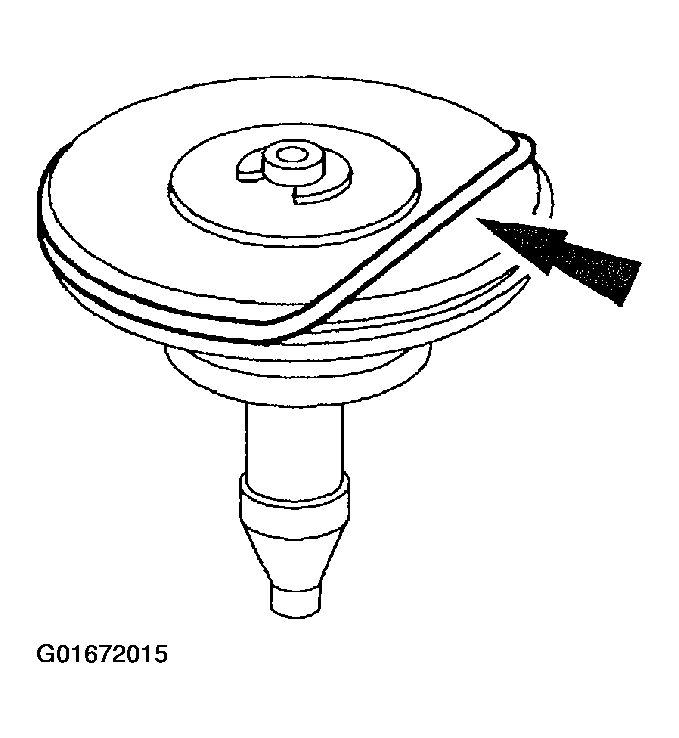

Fig 1: Installing Servo Piston Seal
G01672015Courtesy of FORD MOTOR CO.

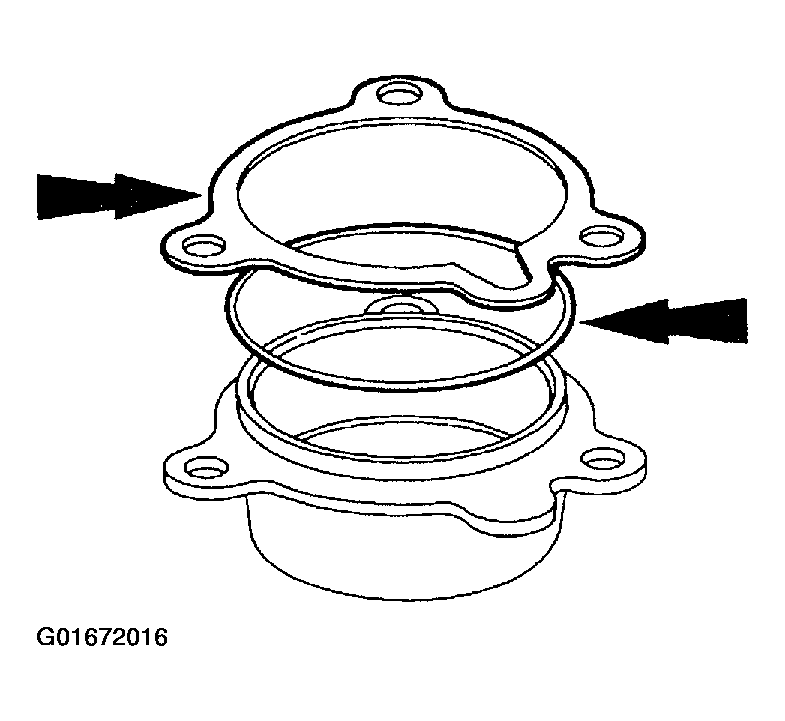

Fig 2: Installing Cover Seal & Gasket
G01672016Courtesy of FORD MOTOR CO.
