Forward Clutch Cylinder: Notes

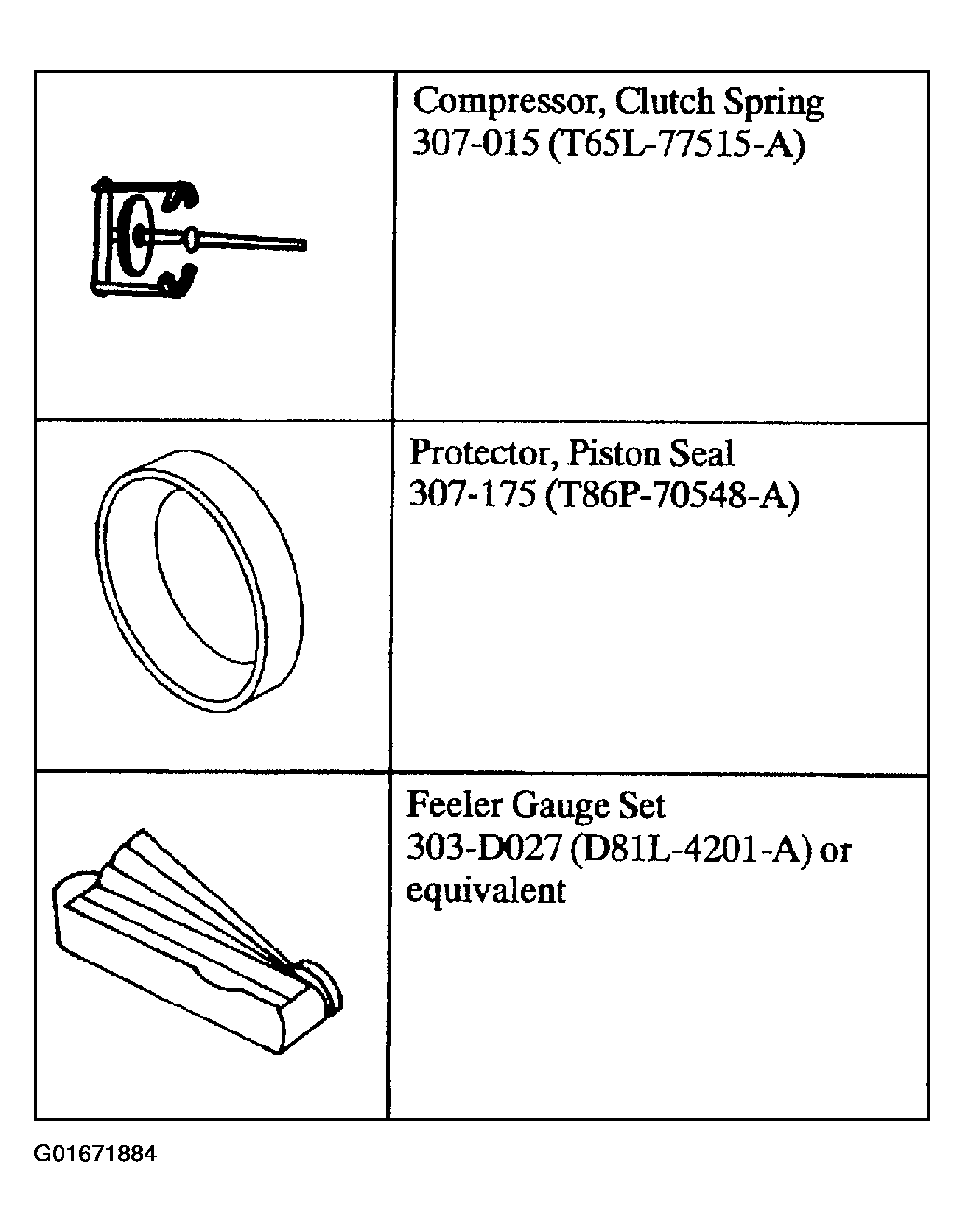

Fig 1: Identifying Special Tools
G01671884Courtesy of FORD MOTOR CO.

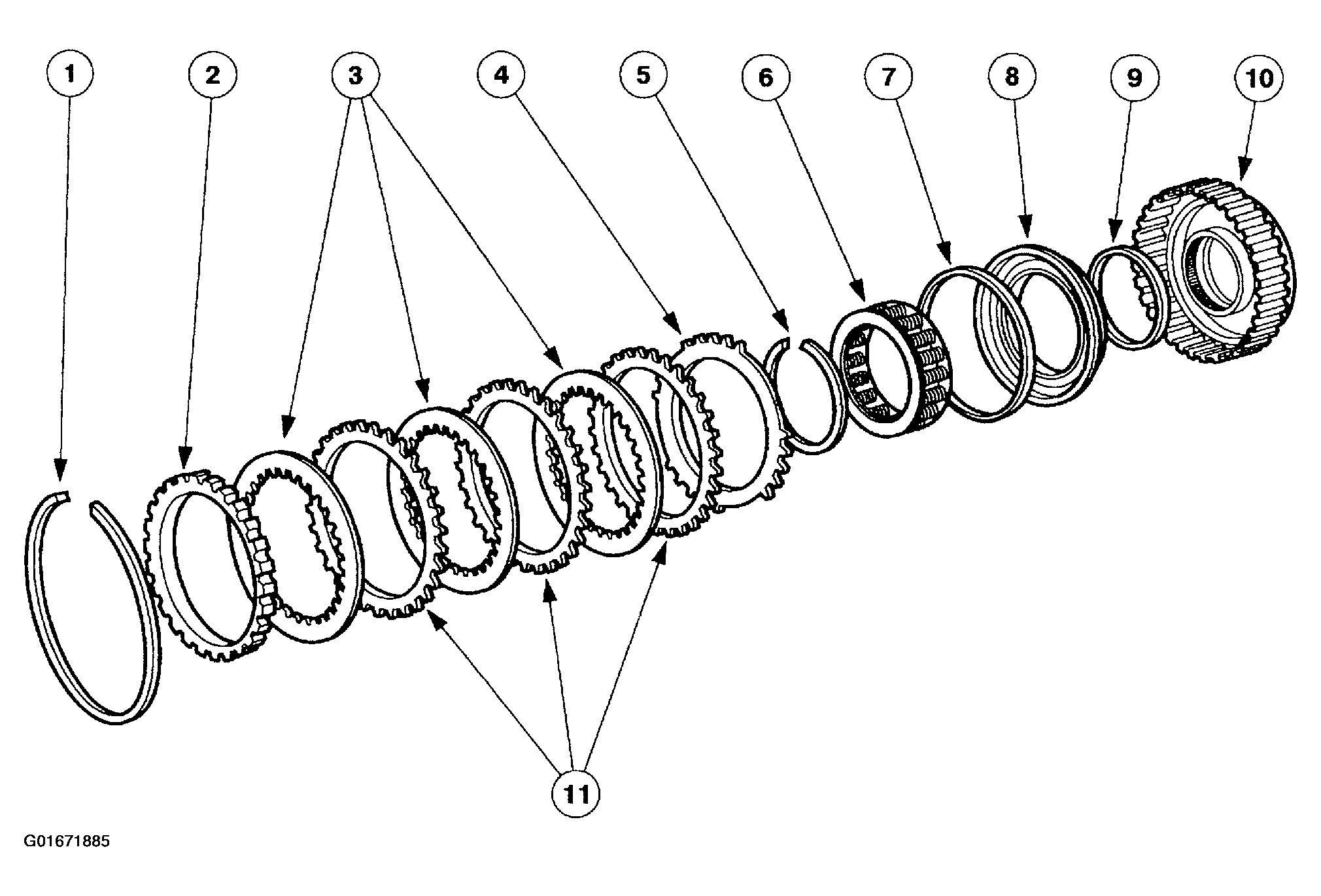

Fig 2: Identifying Forward Clutch Assembly Components (1 Of 3)
G01671885Courtesy of FORD MOTOR CO.

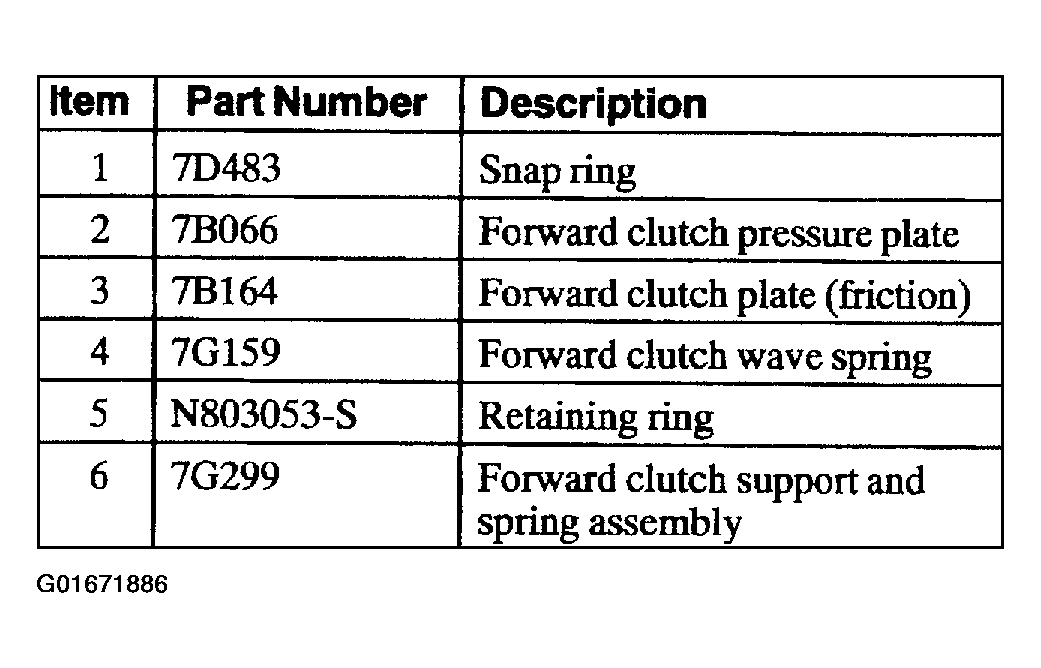

Fig 3: Identifying Forward Clutch Assembly Components (2 Of 3)
G01671886Courtesy of FORD MOTOR CO.

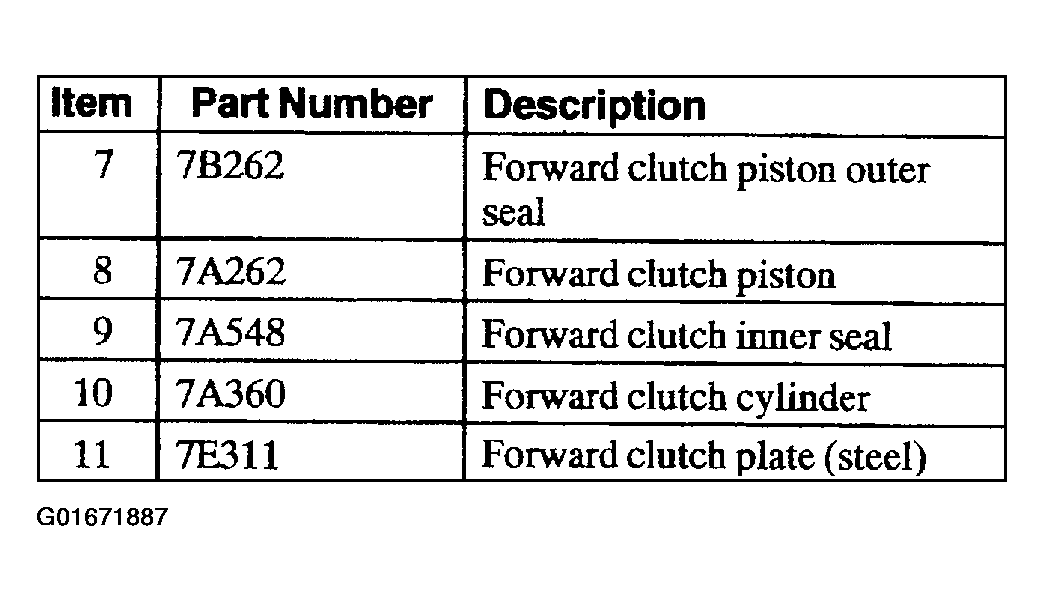

Fig 4: Identifying Forward Clutch Assembly Components (3 Of 3)
G01671887Courtesy of FORD MOTOR CO.
