End Play Check

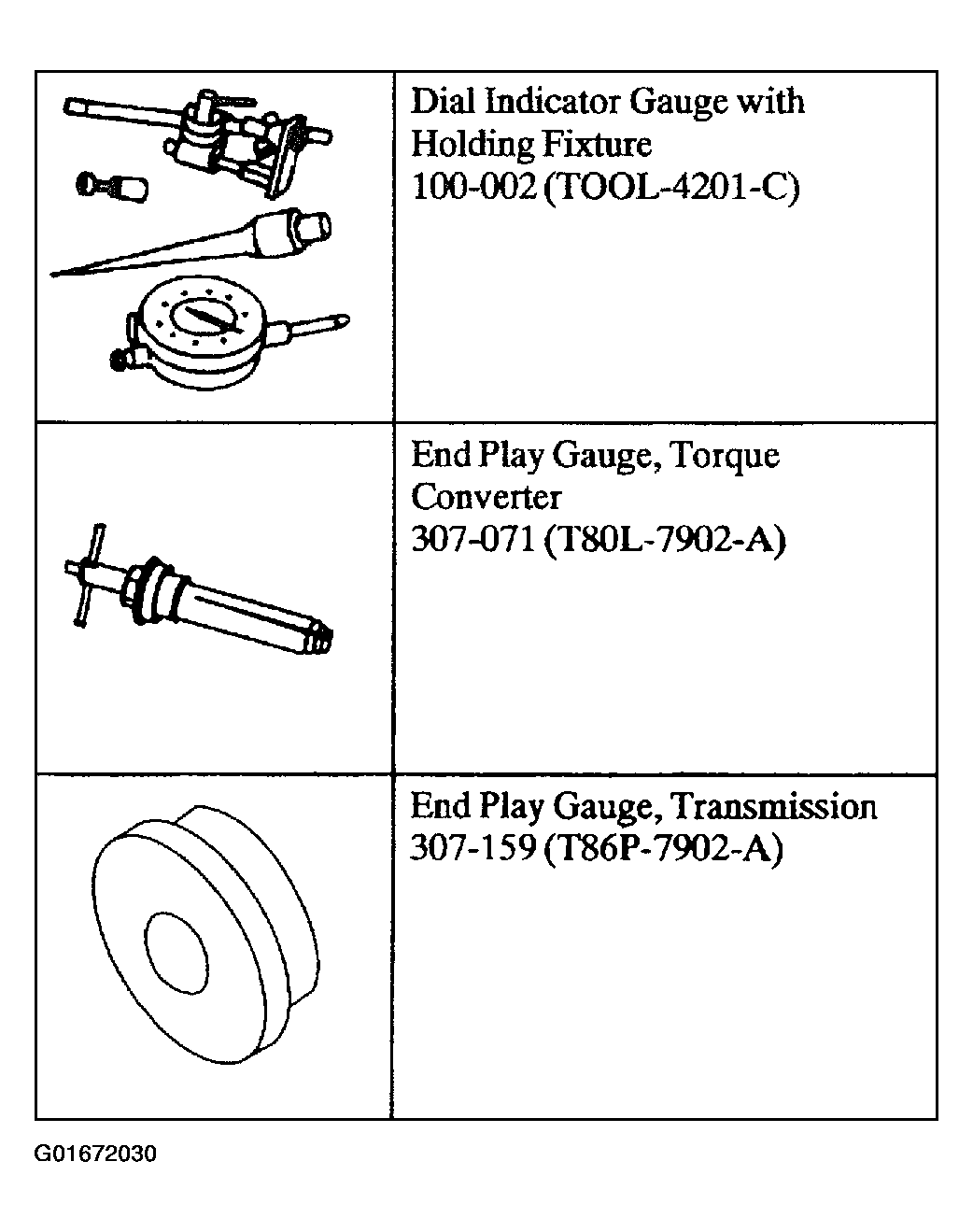

Fig 1: Identifying Special Tools

Courtesy of FORD MOTOR CO.

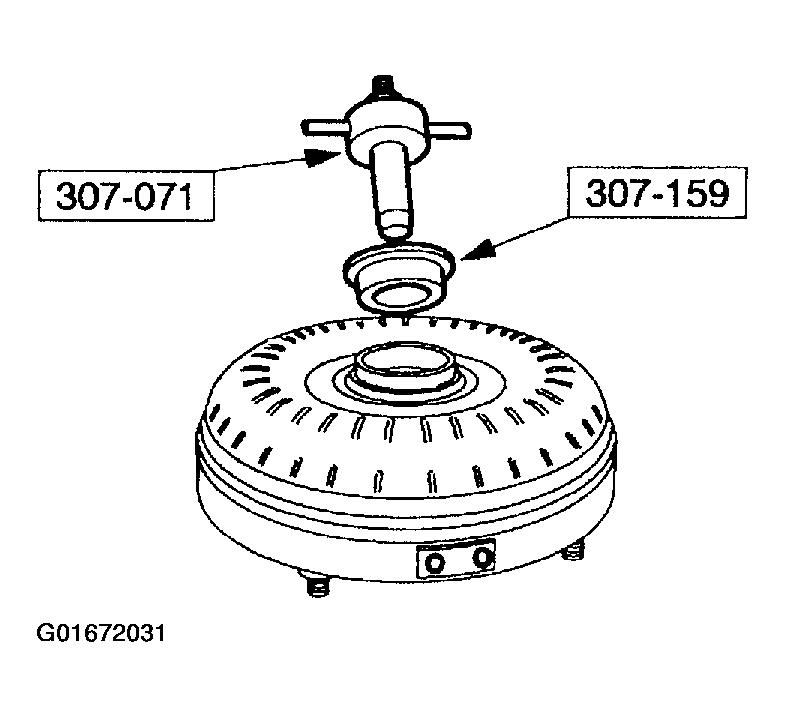

Fig 2: Installing Special Tools Into Torque Converter

Courtesy of FORD MOTOR CO.

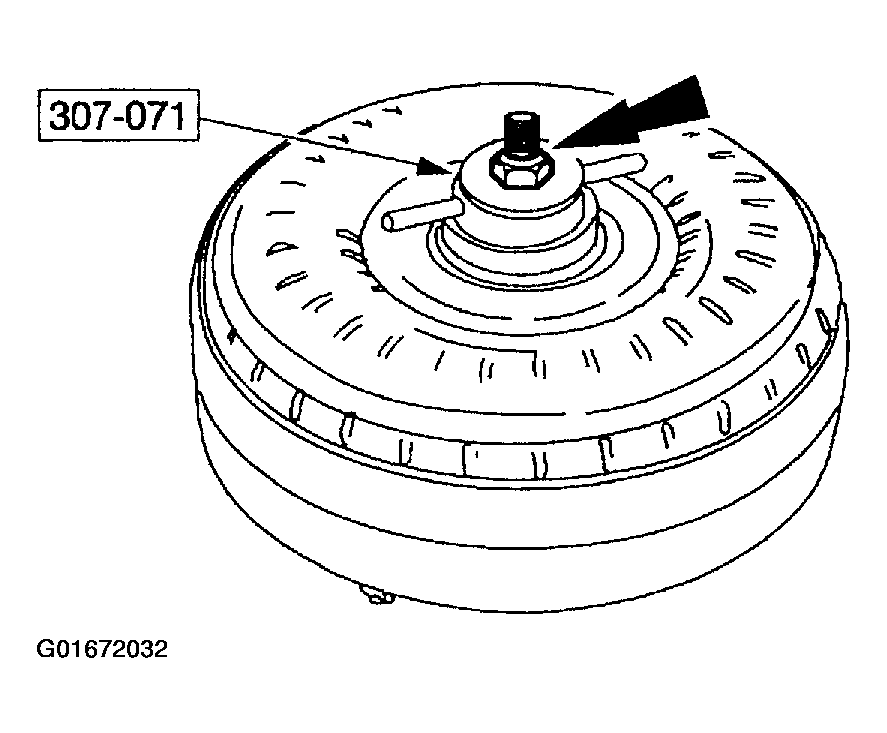

Fig 3: Tightening Nut

Courtesy of FORD MOTOR CO.

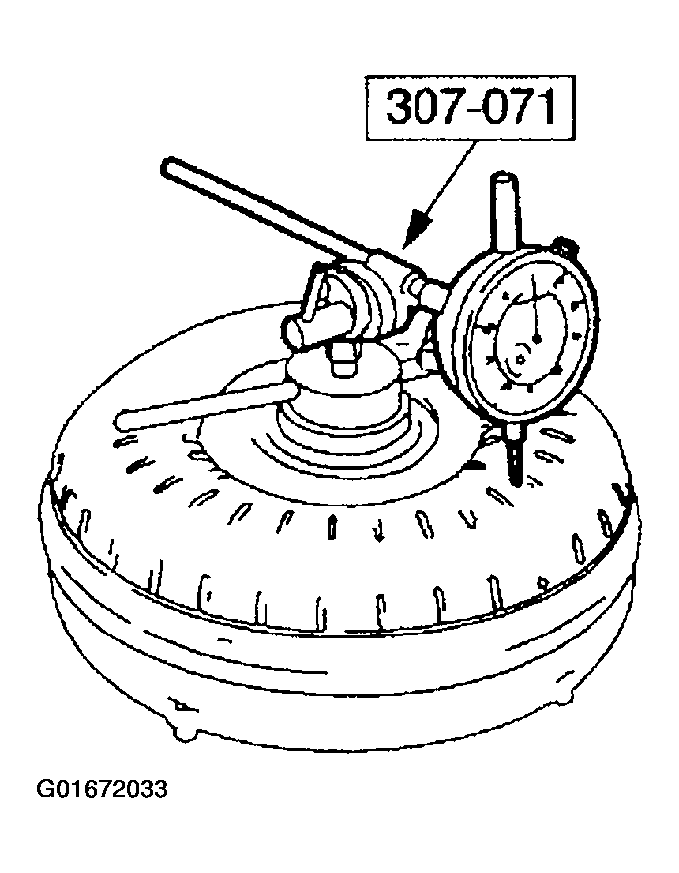

Fig 4: Installing Dial Indicator Gauge

Courtesy of FORD MOTOR CO.

NOTE: If the indicator reading is above specification, install a new or remanufactured torque converter.

With the stylus contacting the converter shell and the dial indicator set to zero lift up on the handles of the checking tool.

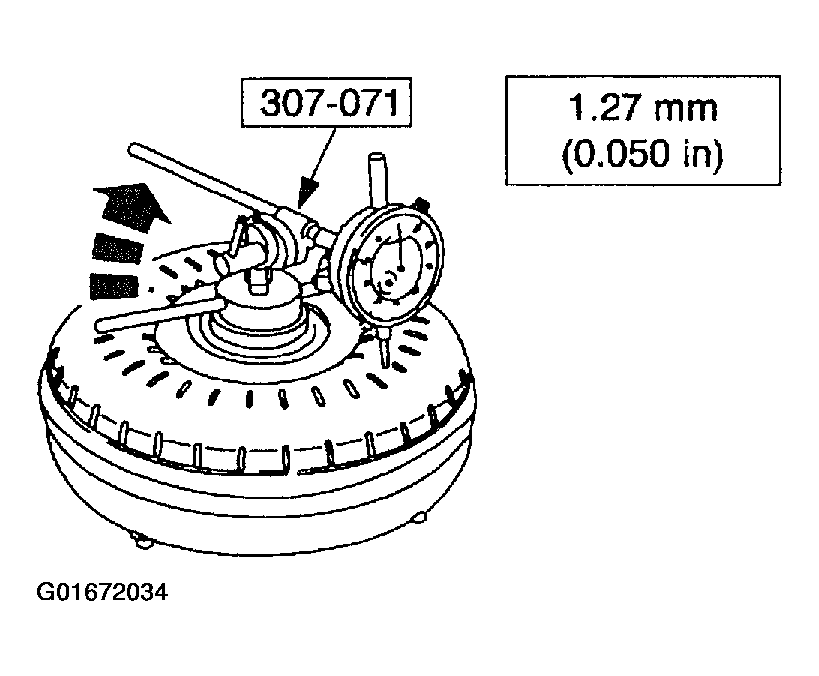

Fig 5: Checking End Play

Courtesy of FORD MOTOR CO.
