Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | On left front of engine compartment. |
| Central Security Module | Behind upper right side of dash. |
| Daytime Running Lamps (DRL) Module | Left side of lower radiator support. |
| Four Wheel Drive Control Module | In right kick panel. |
| Generic Electronic Module (GEM) | Behind center of dash. |
| Instrument Panel Dimming Module | Top left side of dash. See Figure . |
| Passive Anti-Theft Transceiver | On bottom of steering column. |
| Powertrain Control Module (PCM) (2.3L) | Right rear of engine compartment, through firewall. See Figure . |
| Powertrain Control Module (PCM) (3.0L) | Right rear of engine compartment, through firewall. |
| Powertrain Control Module (PCM) (4.0L) | Right rear of engine compartment, through firewall. |
| Remote Anti-Theft Personality (RAP) Module | In left rear corner of cab. |
| Restraints Control Module | In center of vehicle, under dash. See Figure . |

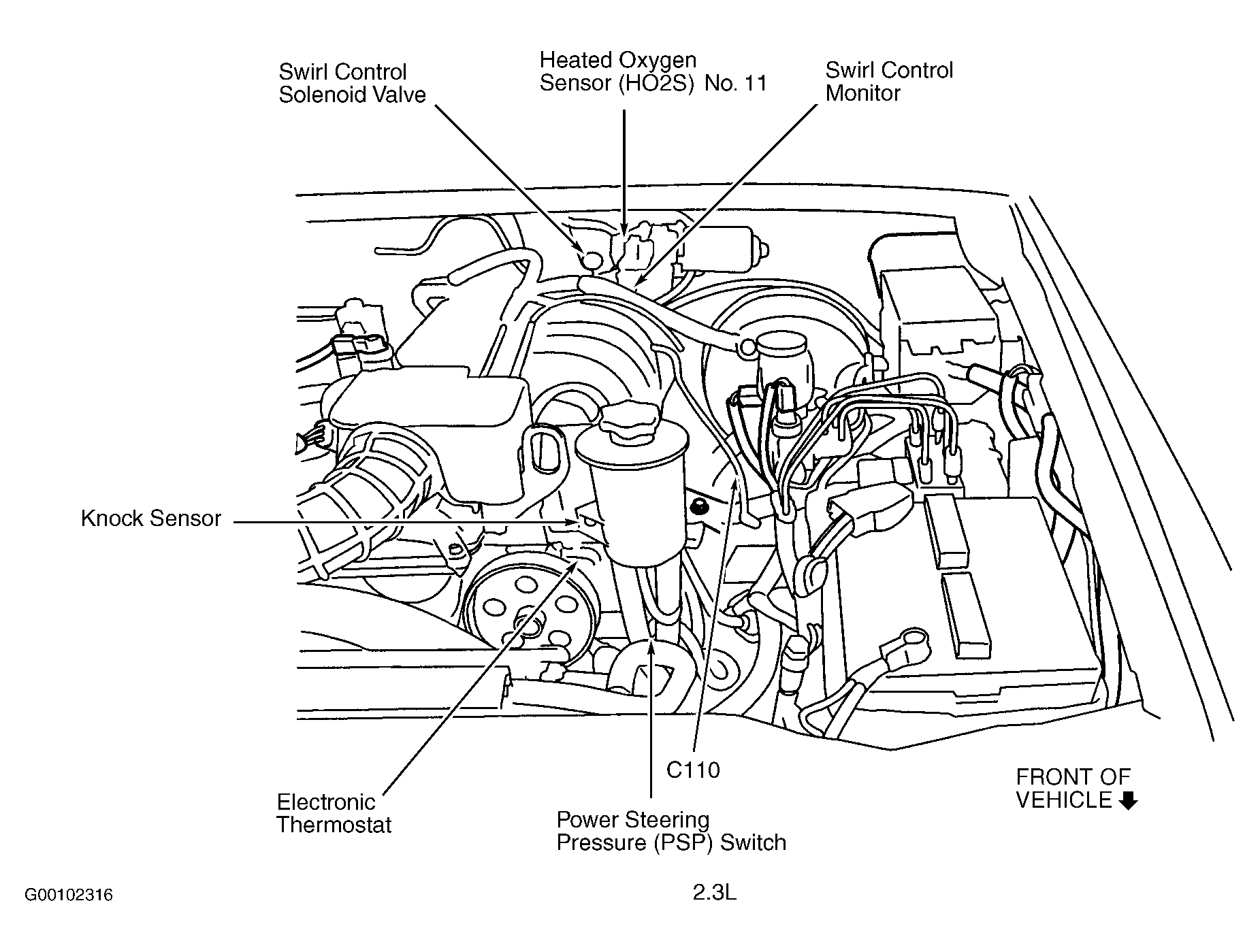

| Swirl Control Monitor (2.3L) | In rear of engine compartment. See Figure . |
