Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

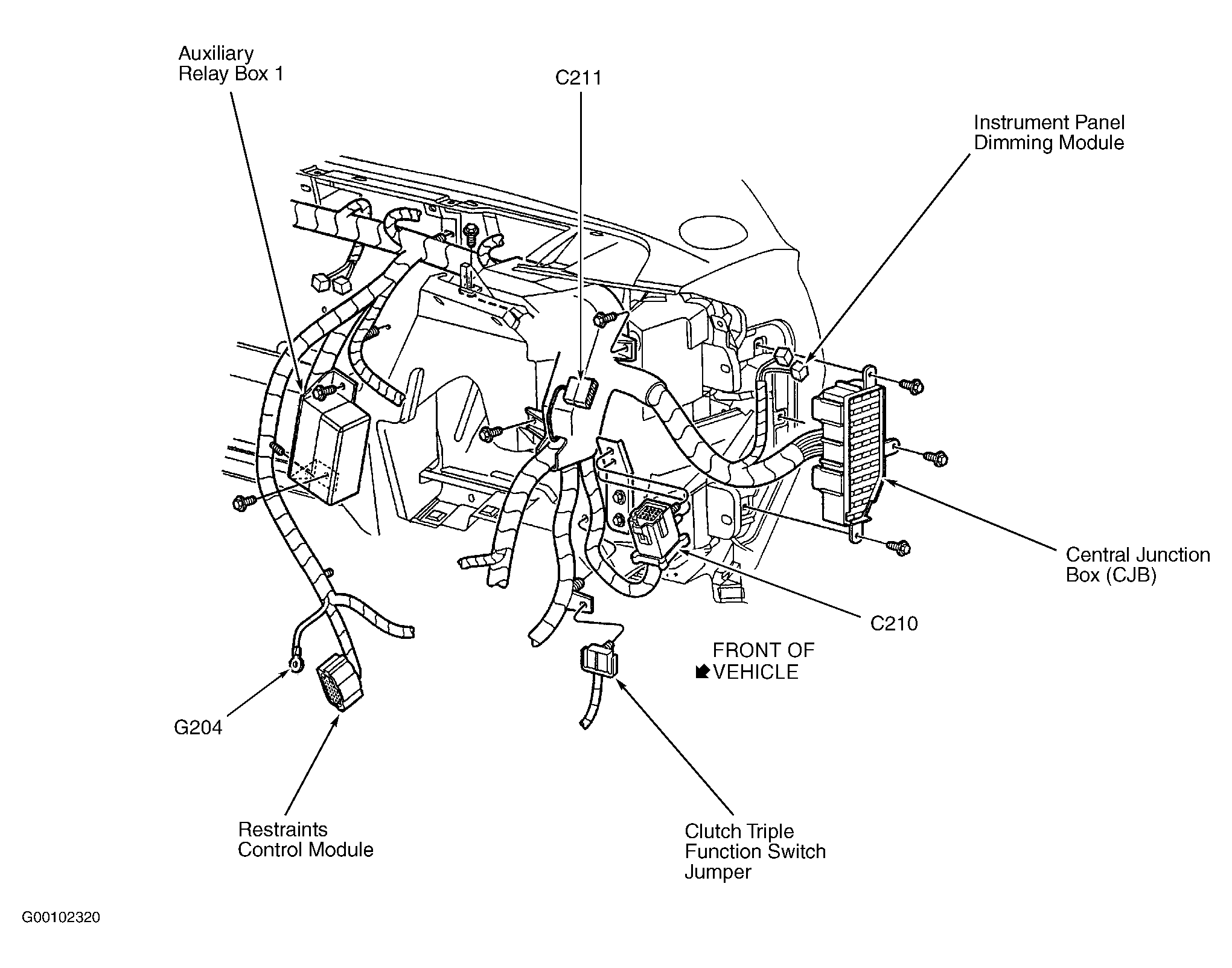

| Auxiliary Relay Box 1 | Behind dash, right of steering column. See Figure . |
| Battery Junction Box (BJB) | Left rear of engine compartment. |
| Central Junction Box (CJB) | Behind left side of dash. See Figure . |
| Fusible Link "A" | At left front side of engine compartment. |
| Fusible Link "B" | At left front side of engine compartment. |
| Fusible Link "C" | At left front side of engine compartment. |
