Anti-Lock Brake System (Abs) Module: Removal

  1. Disconnect the battery ground cable.
  2. Remove the hydraulic control unit bolts.
    Fig 1: Removing Hydraulic Control Unit Bolts
    G03434978Courtesy of FORD MOTOR CO.
  3. Disconnect the electrical connectors.

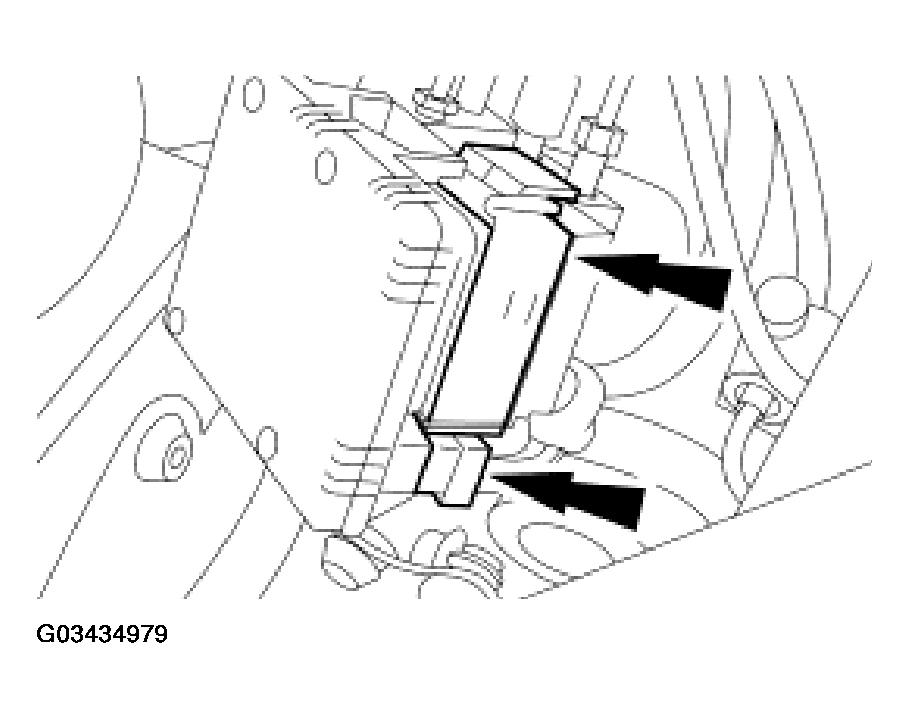

    Fig 2: Disconnecting Electrical Connectors
    G03434979Courtesy of FORD MOTOR CO.
  4. Remove the anti-lock brake control module.
    1. Remove the bolts.
    2. Remove the anti-lock brake control module.

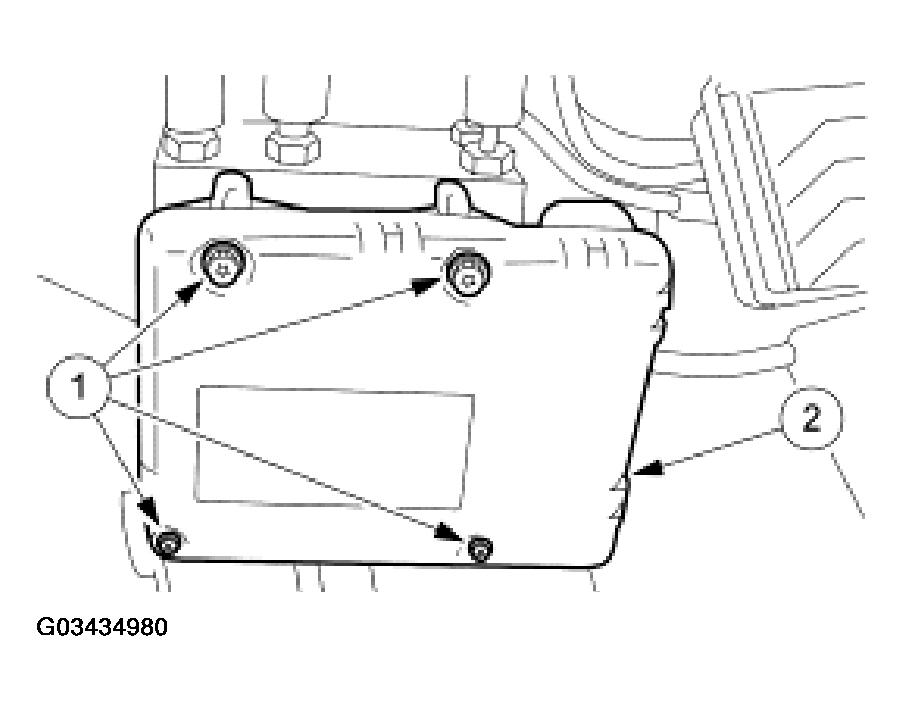

    Fig 3: Removing Anti-Lock Brake Control Module
    G03434980Courtesy of FORD MOTOR CO.
