Hydraulic Control Unit: Installation

    NOTE: The brake system must be bled after the HCU is installed or replaced. Refer to BLEEDING BRAKE SYSTEM .
    Fig 1: Installing HCU Bracket Nuts To HCU
    G03400424Courtesy of FORD MOTOR CO.

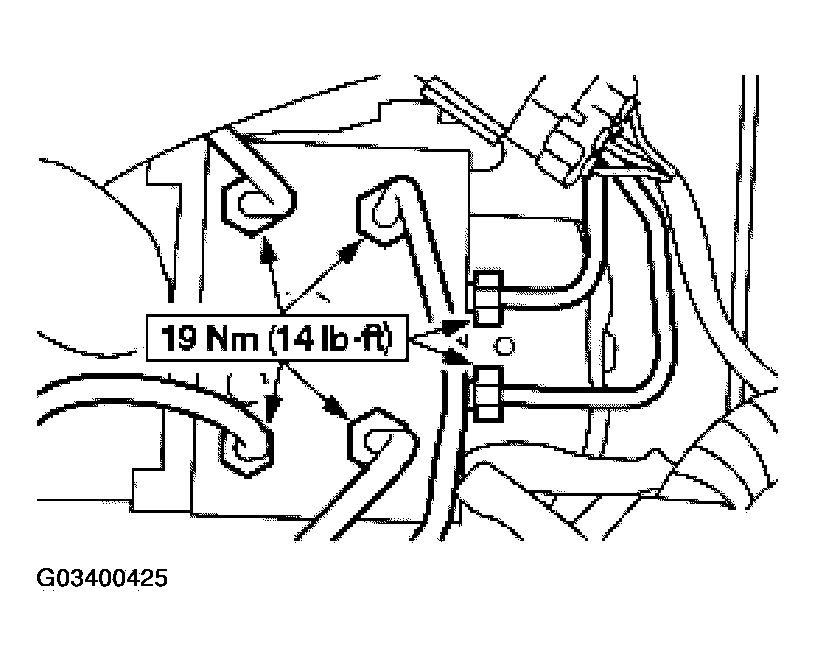

    Fig 2: Connecting Brake Lines From Hydraulic Control Unit (Hcu)
    G03400425Courtesy of FORD MOTOR CO.
  1. To install, reverse the removal procedure.
