Automatic Transmission
>>
Description And Operation
>>
Main Components And Functions
>>
Transmission Main Components - Sectional View
Transmission Main Components - Sectional View

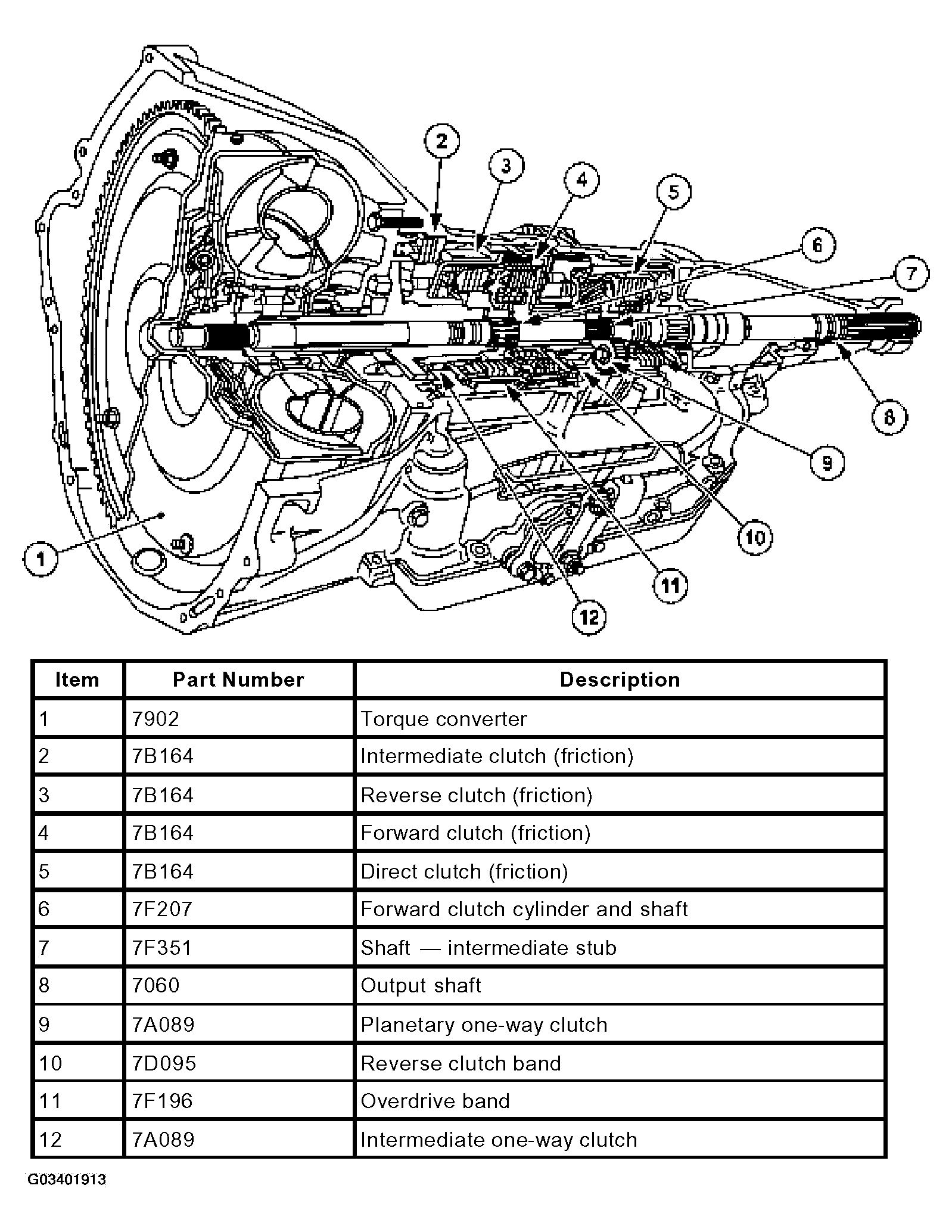

Fig 1: Identifying Transmission Main Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
