Pinpoint Test J: Poor Vehicle Tracking During Anti-Lock Function

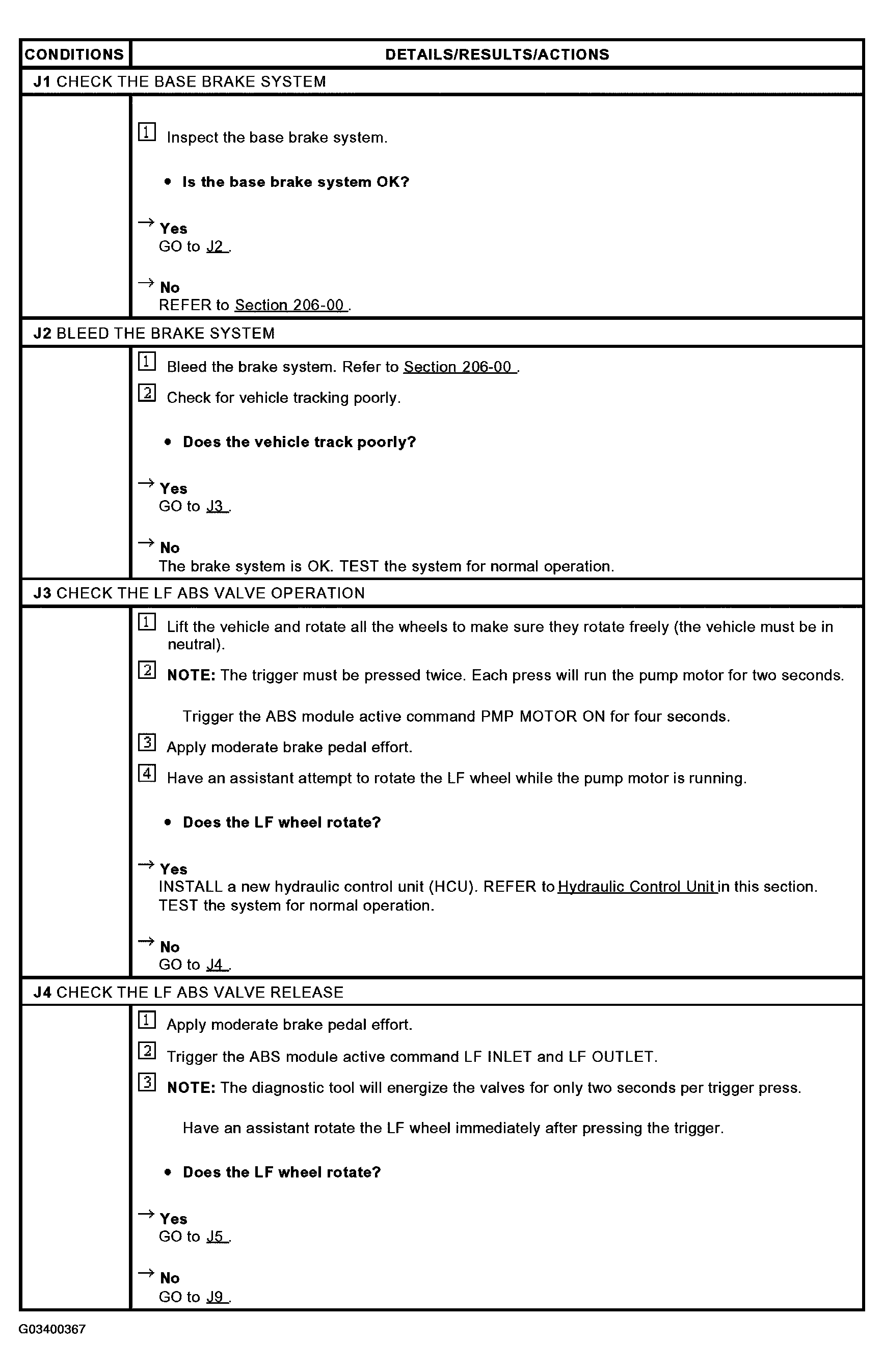

Fig 1: Identifying Pinpoint Test Chart J: Poor Vehicle Tracking During Anti-Lock Function (J1-J4)
G03400367Courtesy of FORD MOTOR CO.

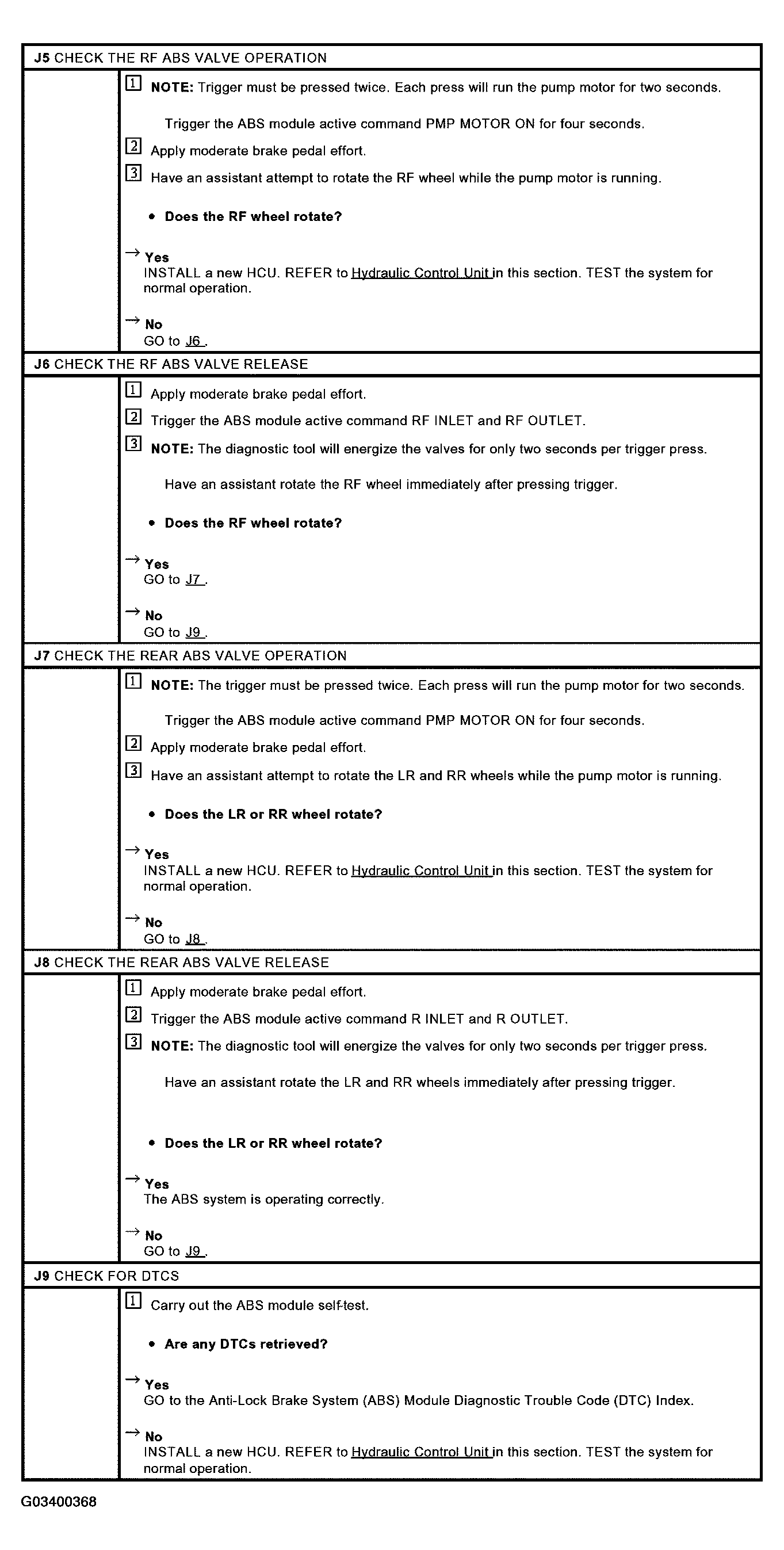

Fig 2: Identifying Pinpoint Test Chart J: Poor Vehicle Tracking During Anti-Lock Function (J5-J9)
G03400368Courtesy of FORD MOTOR CO.
