In-Vehicle Repair: Seal: Installation

  1. Using the special tool, install the extension housing fluid seal.

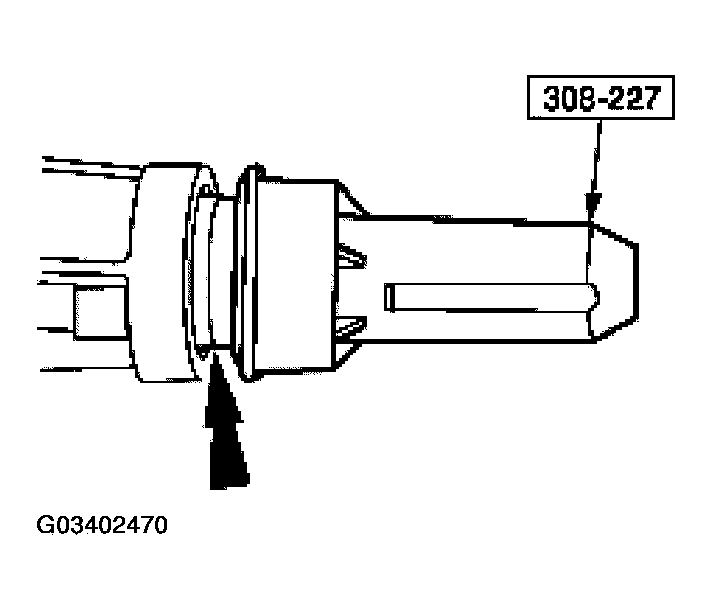

    Fig 1: Installing Extension Housing Fluid Seal
    G03402470Courtesy of FORD MOTOR CO.
    2. CAUTION: Align the index marks.
  2. Install the driveshaft. For additional information, refer to DRIVE SHAFTS .
  3. Check the transmission fluid level, add fluid if necessary.
  4. Lower the vehicle.
