Removal & Installation: Flywheel: Installation

To install, reverse the removal procedure. Tighten the flywheel bolts in the sequence to specification. See Fig 1 . See TORQUE SPECIFICATIONS  .

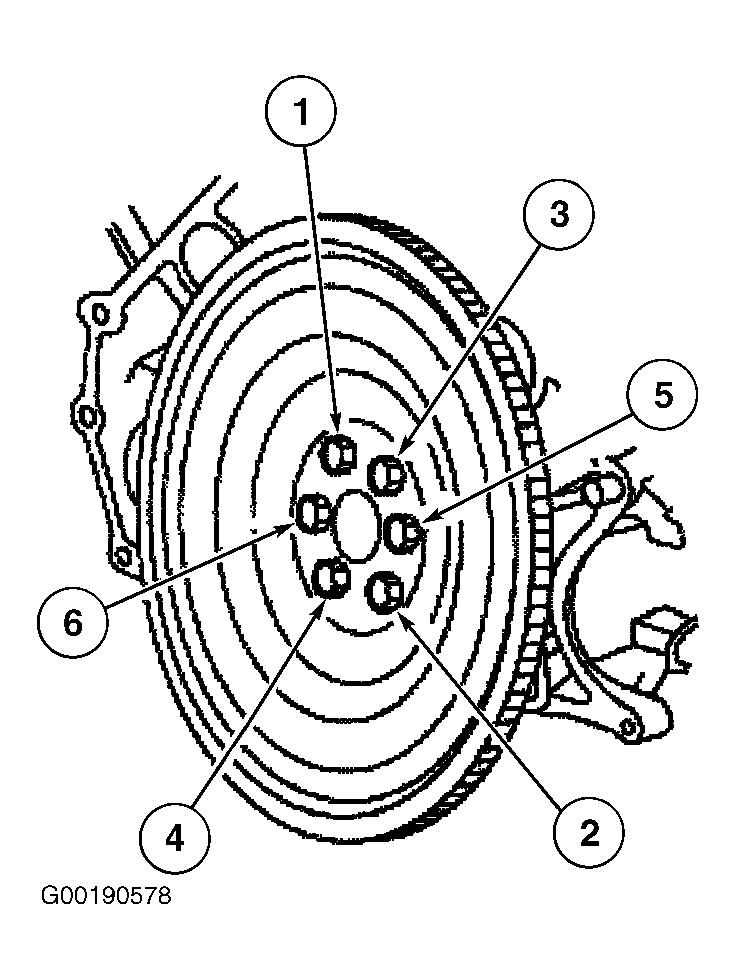

Fig 1: Identifying Flywheel Torque Sequence

Courtesy of FORD MOTOR CO.
