MULTIFUNCTION Switch

WARNING: This page is about a different car, the 2002 Mercury Sable, 2002 Ford Taurus, 2001 Mercury Sable, and 2001 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch to LOCK position. Disconnect multifunction switch connectors. Set hazard flasher switch to OFF position unless specified otherwise. Check resistance between appropriate terminals with switch in specified position. See MULTIFUNCTION SWITCH RESISTANCE table. See Fig 1. If resistance is not as specified, replace multifunction switch. See MULTIFUNCTION SWITCH under REMOVAL & INSTALLATION.

MULTIFUNCTION SWITCH RESISTANCE

Switch Position

Between Terminals No.

Ohms

Flash-To-Pass On ⁽¹⁾

2 & 3; 5 & 7

⁽²⁾

Hazard Switch ⁽³⁾

4 & 11; 5 & 16; 6 & 10; 2 & 6

⁽²⁾

Off

1 & 11; 9 & 10; 2 & 9

⁽²⁾

Turn Signals ⁽³⁾⁽⁴⁾

Left Turn

6 & 8

⁽²⁾

Right Turn

5 & 6

⁽²⁾

Washer ⁽¹⁾

4 & 6

⁽²⁾

Off

4 & 6

⁽⁵⁾

Wipers ⁽¹⁾

Off

1 & 4

953

Low Speed

1 & 4

402

High Speed

1 & 4

⁽²⁾

Interval

1 & 4

1.91K

Interval Delay ⁽¹⁾

Detent 1 (MAX)

4 & 6

2.67K

Detent 2

4 & 6

1.91K

Detent 3

4 & 6

1.37K

Detent 4

4 & 6

953

Detent 5

4 & 6

634

Detent 6

4 & 6

402

Detent 7 (MIN)

4 & 6

249

⁽¹⁾	Listed terminals are found in (component side) multifunction switch connector C202b. See Fig 1.

⁽²⁾	Resistance should be 5 ohms or less.

⁽³⁾	Listed terminals are found in (component side) multifunction switch connector C202a. See Fig 1.

⁽⁴⁾	Hazard switch MUST be OFF.

⁽⁵⁾	Resistance should be greater than 10 k/ohms.

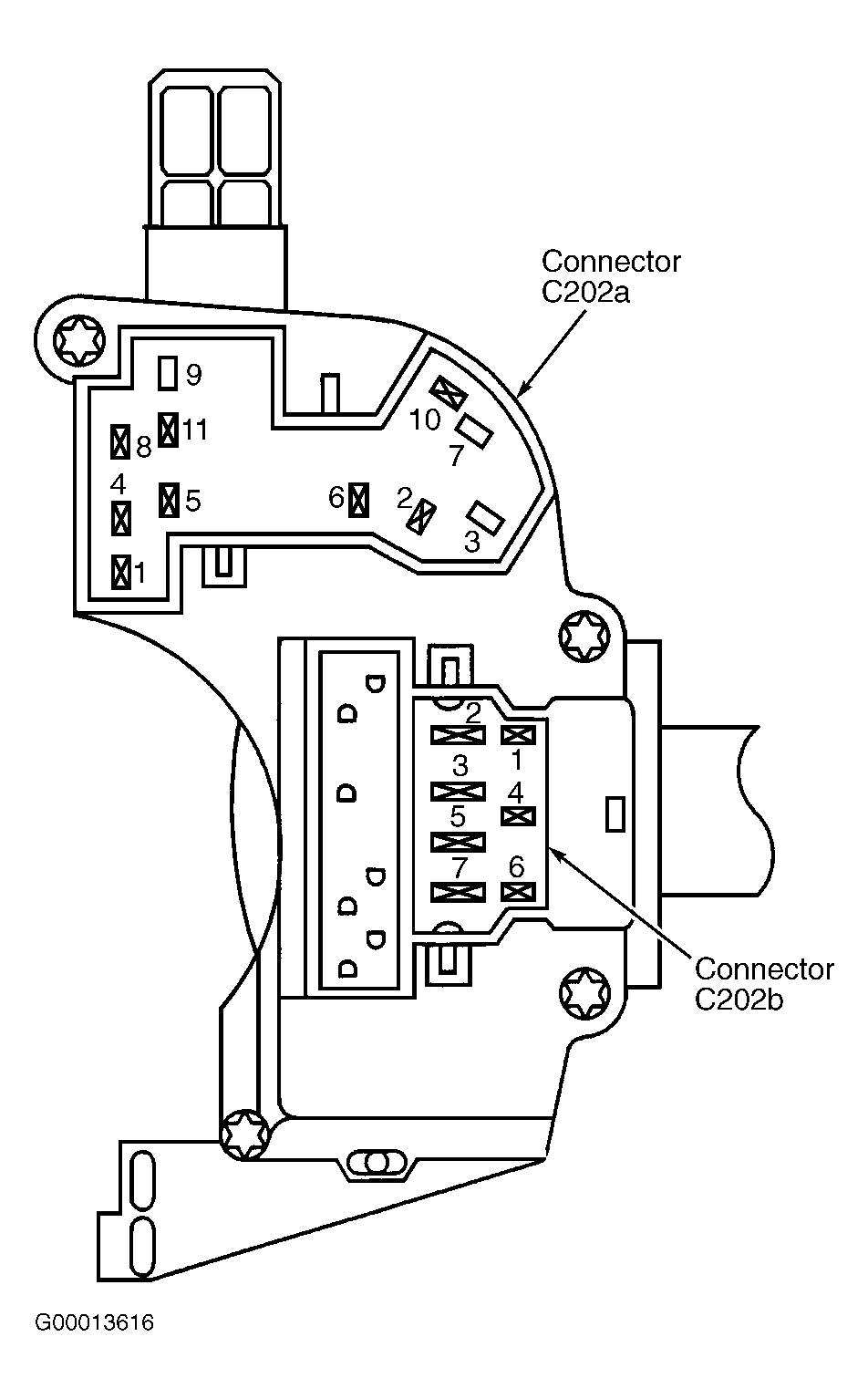

Fig 1: Identifying Multifunction Switch Connector Terminals

Courtesy of FORD MOTOR CO.
