Oil Pump: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the timing drive components. For additional information, refer to TIMING DRIVE COMPONENTS .
  2. Remove the oil pan. For additional information, refer to OIL PAN .

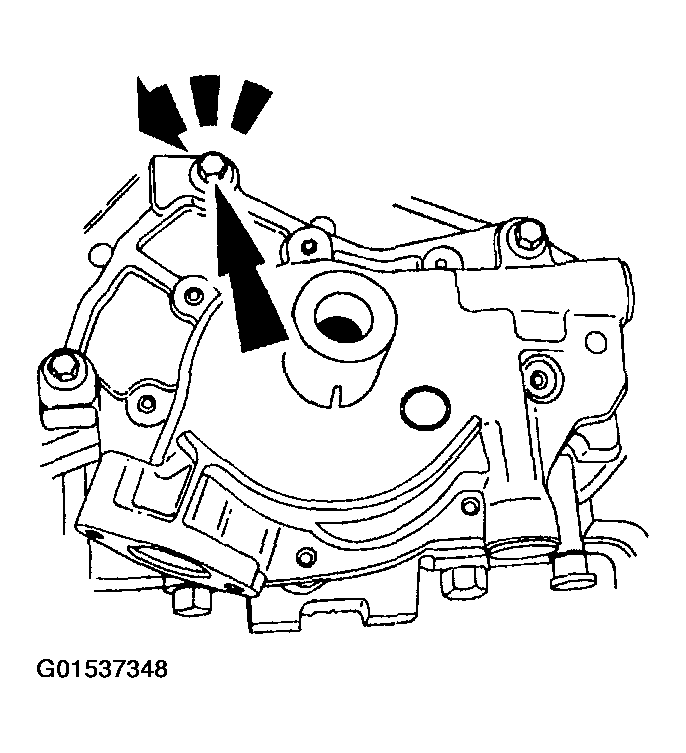

    Fig 1: Removing Oil Pump
    G01537348Courtesy of FORD MOTOR CO.
  3. Remove the bolts and the oil pump.
