Removal and Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: It is not necessary to remove the transmission from the jack.

Remove the transmission. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION-4R100 .
Remove the bolts and the flexplate.

Fig 1: Removing Flexplate
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Tighten the bolts in the sequence shown.

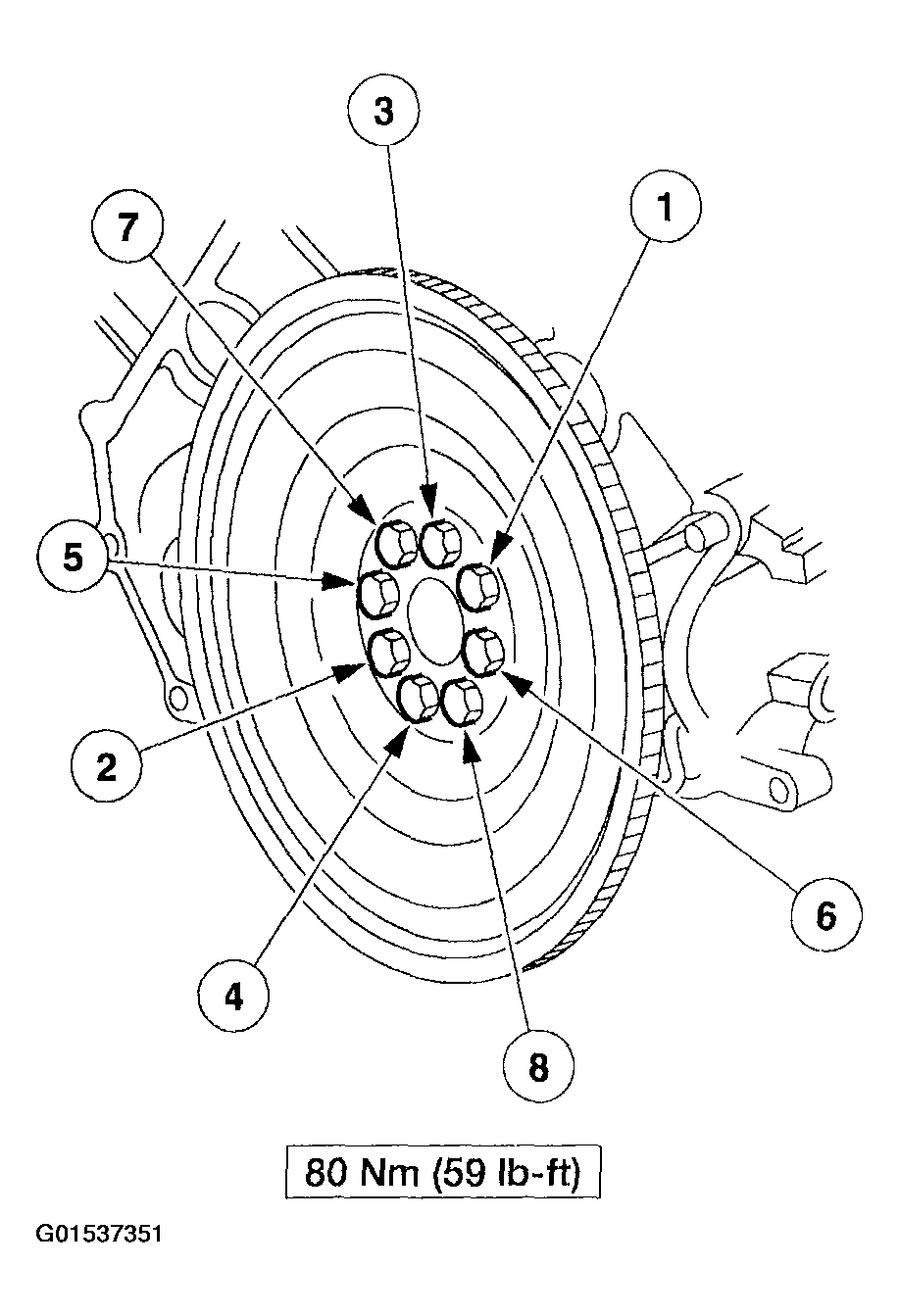

Fig 2: Identifying Tightening Sequence Of Flexplate Bolts
Courtesy of FORD MOTOR CO.
