Pinpoint Test D: DTC B1484, Brake Pedal Input Open Circuit

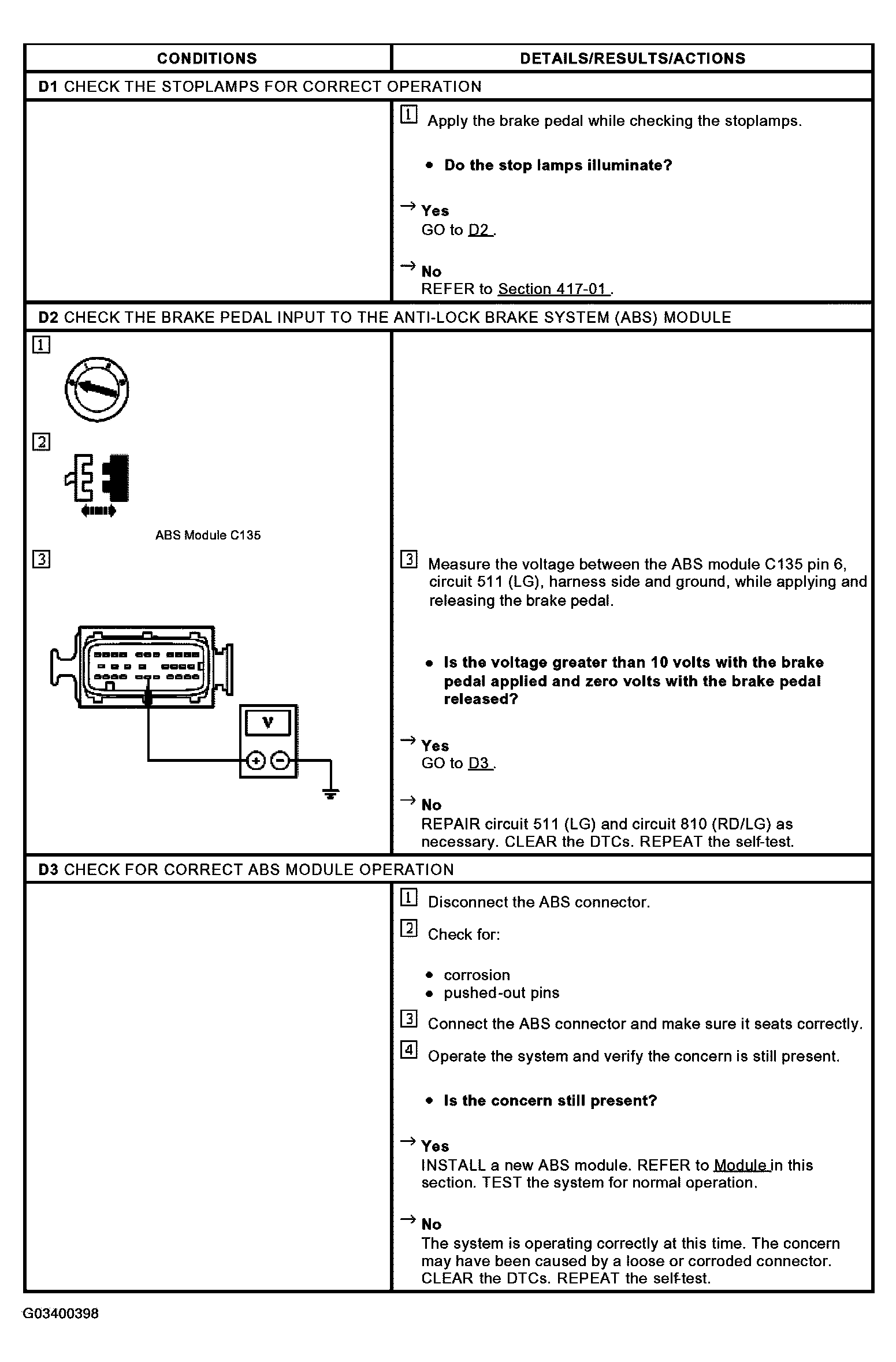

Fig 1: Identifying Pinpoint Test Chart D: DTC B1484, Brake Pedal Input Open Circuit (D1-D3)

G03400398

Courtesy of FORD MOTOR CO.
