Tie-Rod End: Installation

WARNING: Install a new tie-rod end retaining nut. Failure to follow this instruction may result in personal injury.

NOTE: Make sure the tie-rod end is secured by the same number of turns used to remove it. After installation, check the toe adjustment. For additional information, refer to TOE-IN ADJUSTMENT .

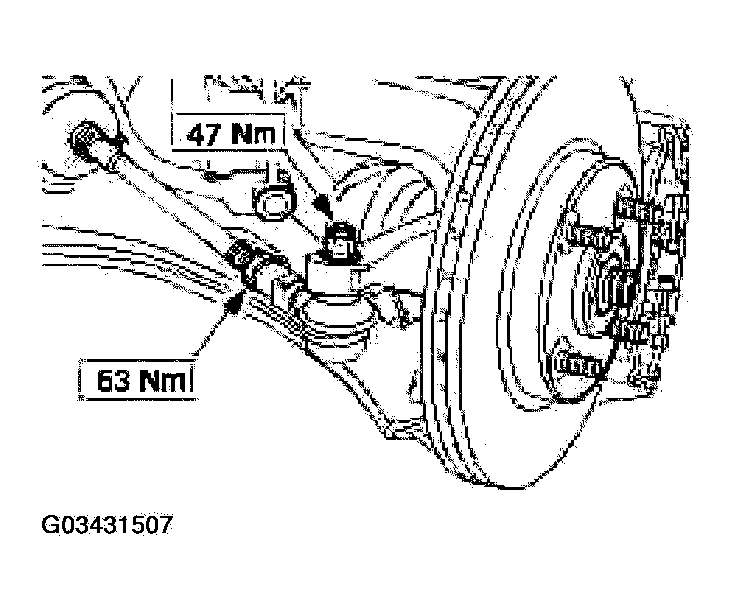

Fig 1: Retaining & Tie Rod End Lock Nut Torque Specifications

Courtesy of FORD MOTOR CO.

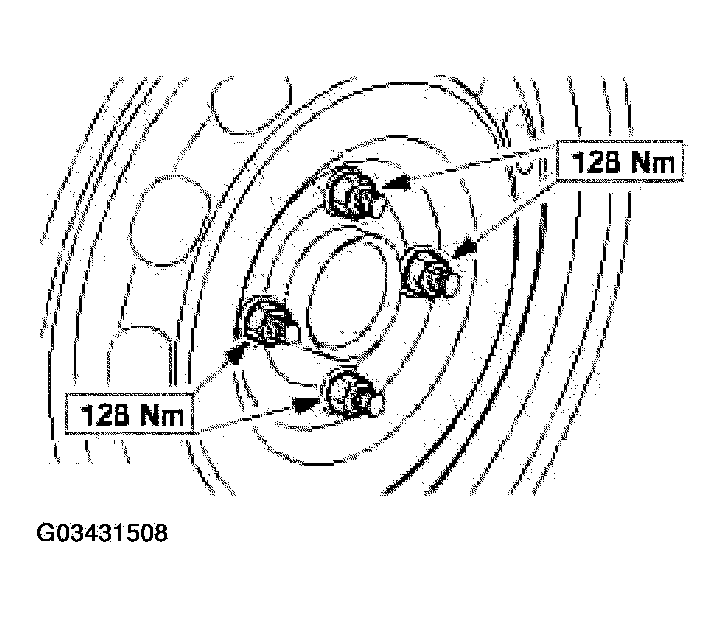

Fig 2: Lug Nut Torque Specifications

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
