Exhaust Manifold: Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: Do not use abrasive grinding discs to remove manual scrapers. Do not scratch or gouge aluminum sealing surface.

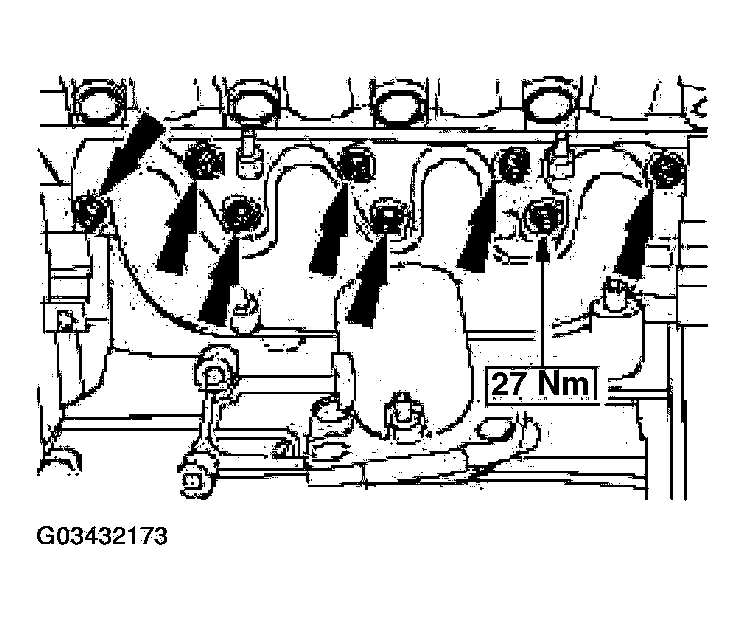

Fig 1: Installing Exhaust Manifold And New Gasket With Torque Specifications

Courtesy of FORD MOTOR CO.

Install the exhaust manifold and a new gasket.
Raise and support the vehicle.
Install the TWC.
Install the EGR - tube and install the nuts.

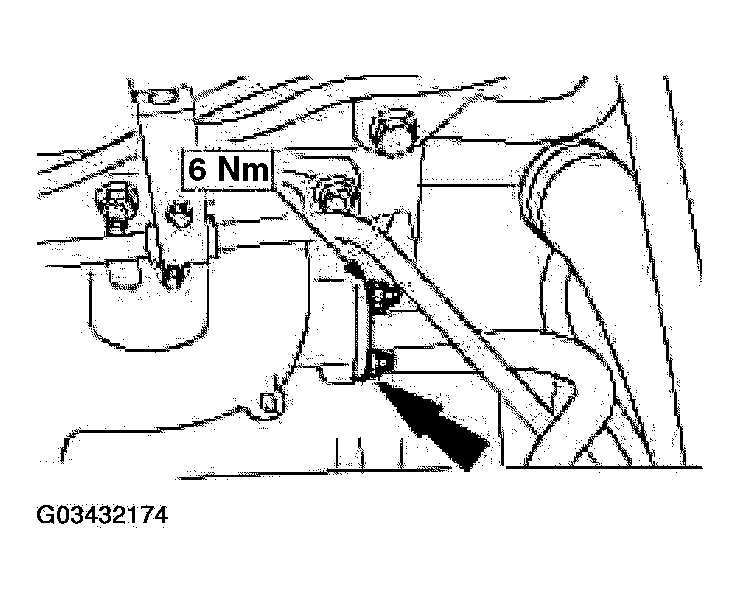

Fig 2: Installing EGR Tube With Torque Specifications
Courtesy of FORD MOTOR CO.
Tighten the EGR - Tube nut.

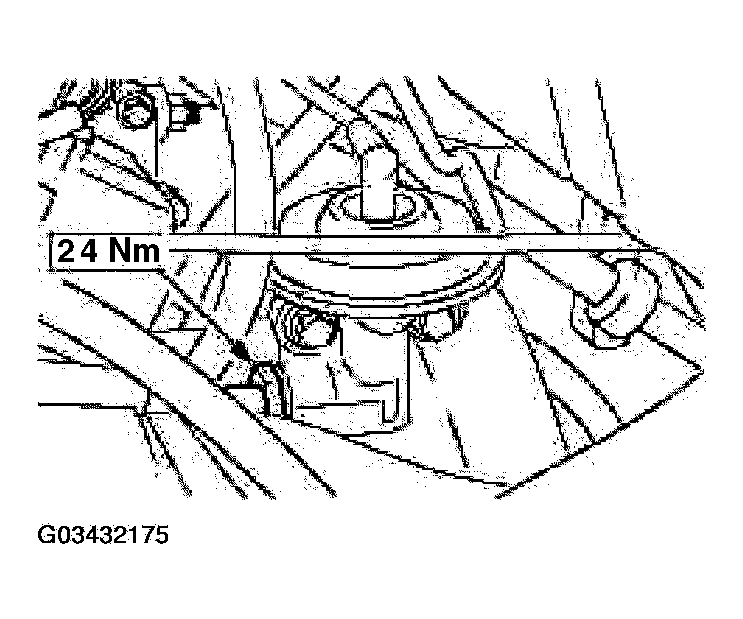

Fig 3: Tightening EGR Tube Nut With Torque Specifications
Courtesy of FORD MOTOR CO.
Install the heat shield.
1. Position the heat shield and install the nuts.
2. Install the power steering pressure tube and install the nuts.

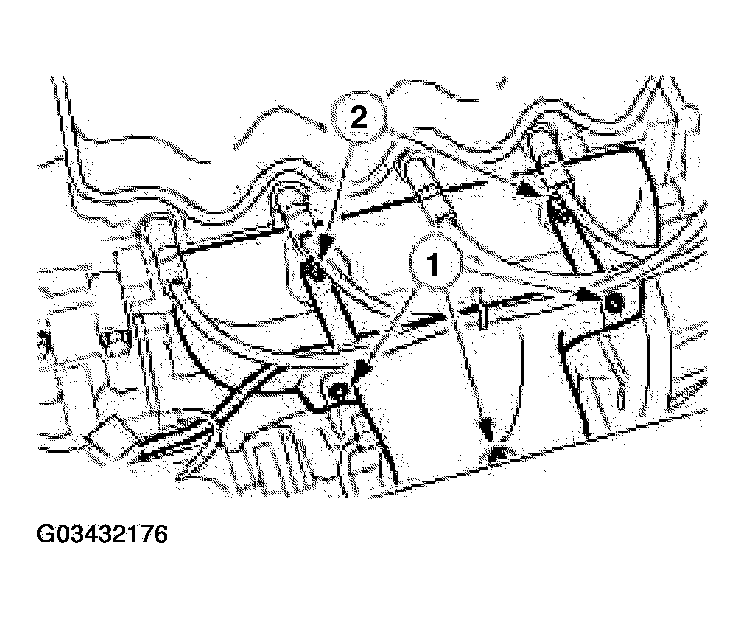

  Fig 4: Installing Heat Shield
  Courtesy of FORD MOTOR CO.
Connect the heated oxygen sensor (HO2S) electrical connector.

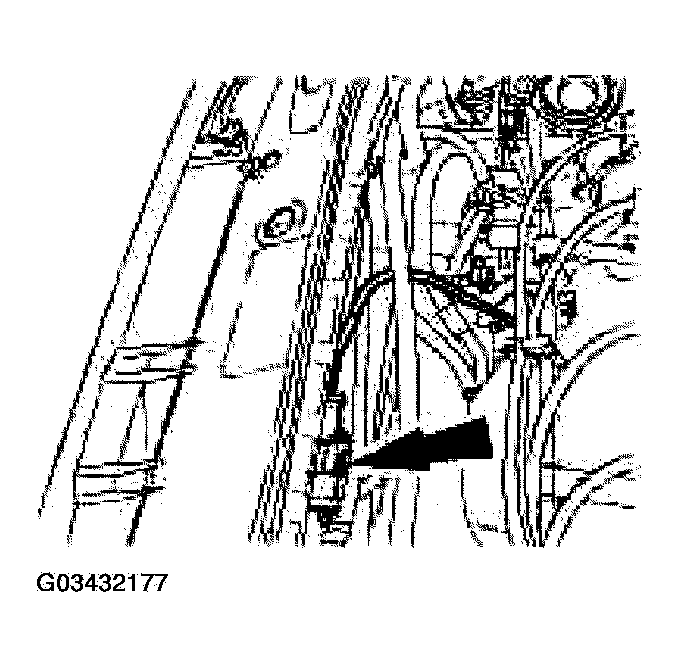

Fig 5: Connecting Heated Oxygen Sensor (Ho2S) Electrical Connector
Courtesy of FORD MOTOR CO.
Install the air cleaner housing (ACL)
1. Connect the MAF electrical connector.
2. Attach the intake hose.

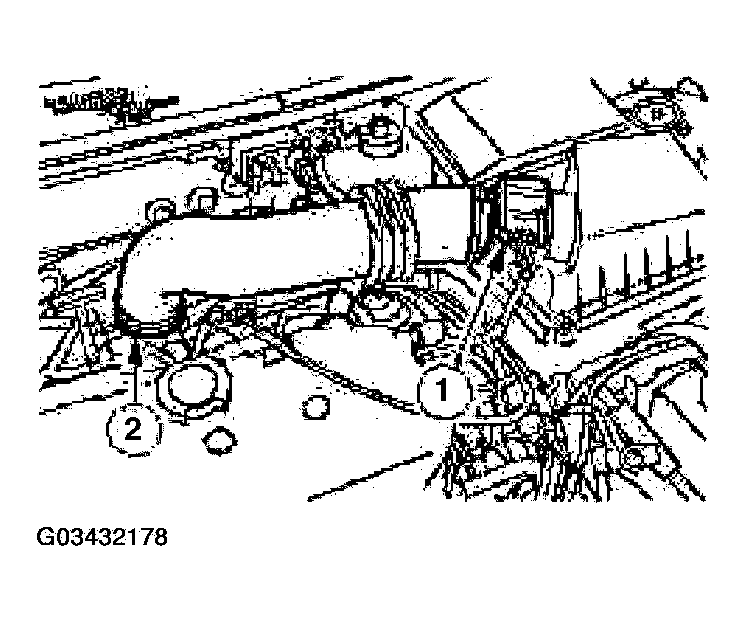

  Fig 6: Installing Air Cleaner Housing (ACL)
  Courtesy of FORD MOTOR CO.
Connect the battery ground lead.
