Stabilizer Bar: Installation

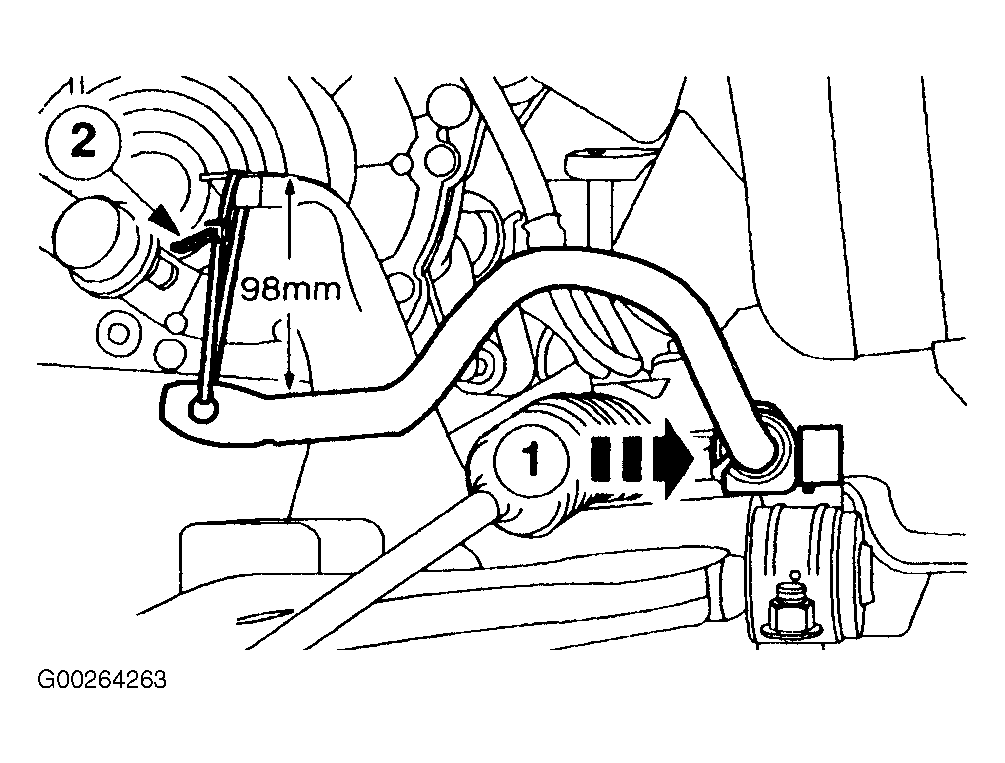

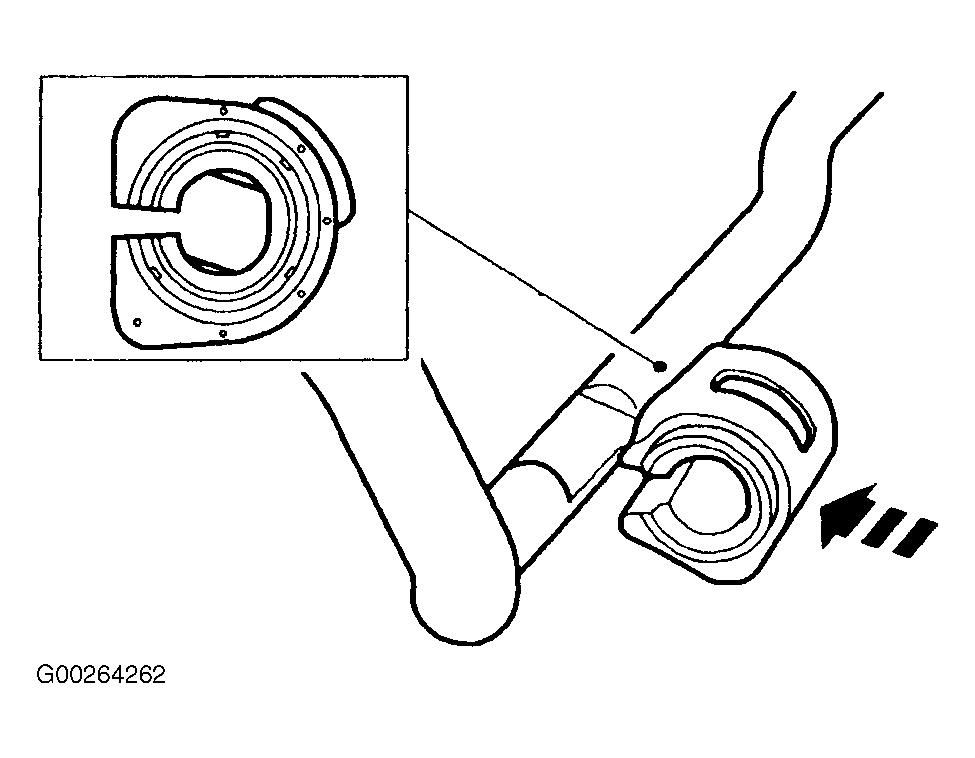

- Install insulators onto stabilizer bar. Stabilizer bar bushings must be located correctly on the flats of the stabilizer bar with no lubricant. See Fig 1 . Set stabilizer bar to design height setting, but do not install links. Support stabilizer bar with cable ties. See Fig 2 . Install clamps, and tighten bolts to specification. See TORQUE SPECIFICATIONS .

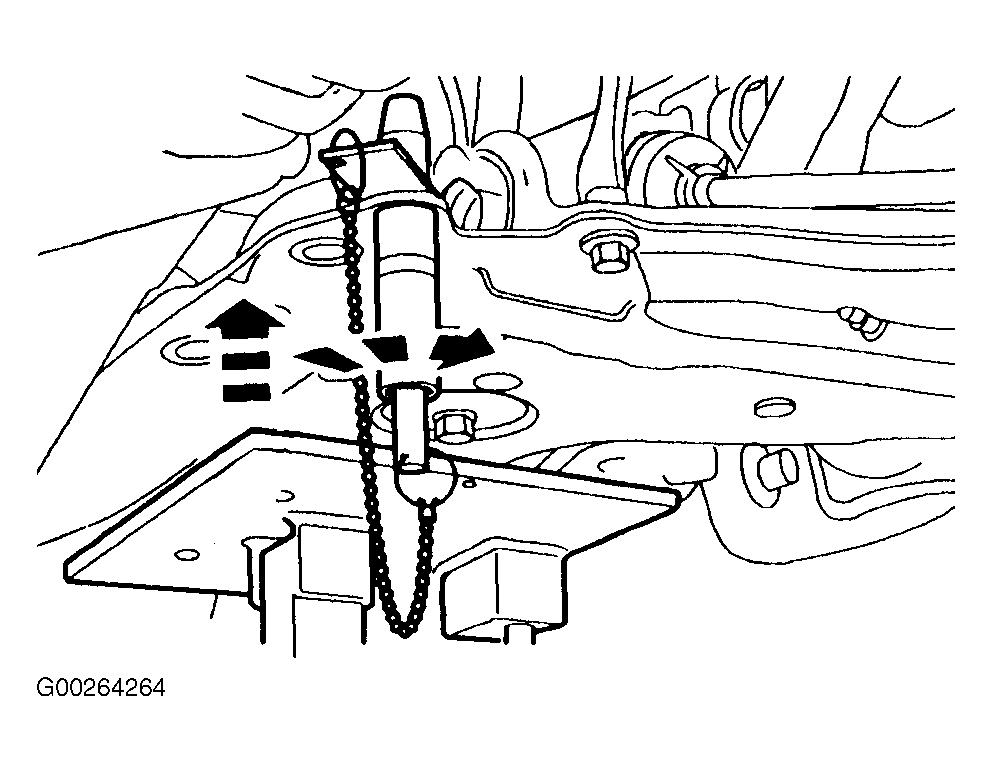

- Use Subframe Alignment Pins (502-002) to alignment crossmember. See Fig 3 . Install crossmember bolts. Remove right alignment pin and tighten bolts to specification. See Figure . Remove transaxle jack Remove left alignment pin. Install support insulator bolt, and tighten to specification.
- Install lower control arm ball joint and connecting links, and tighten to specification. See TORQUE SPECIFICATIONS . Install tie rod ends, and tighten to specification. Install wheel. Reconnect steering column shaft. Connect battery ground cable. Tighten all fasteners to specification. See TORQUE SPECIFICATIONS .
CAUTION:
Ensure the crossmember ball bearing washers and captives are installed correctly.
