Lower Control Arm: Removal

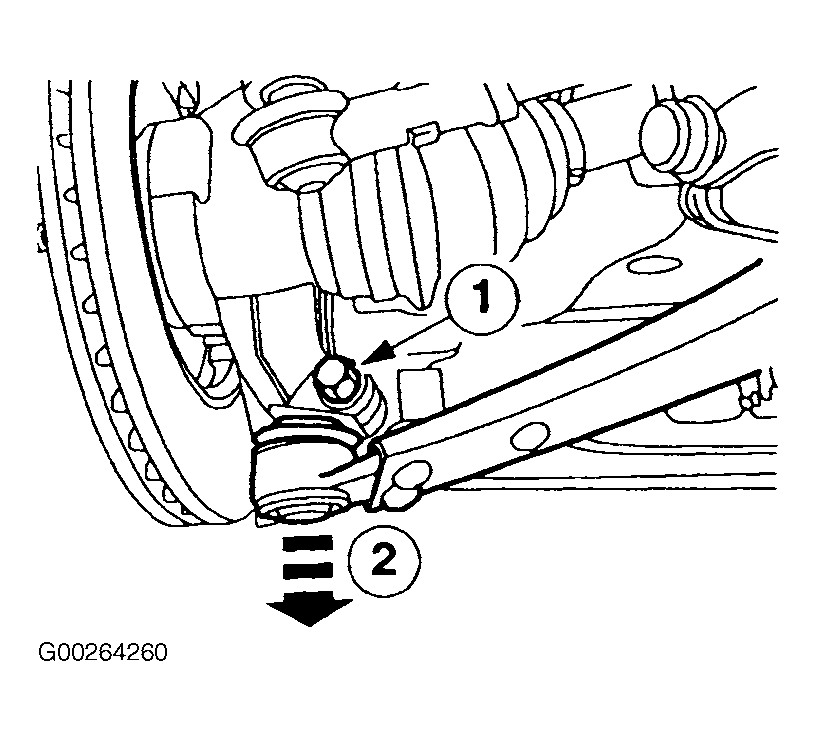

  1. Raise and support vehicle. Remove wheel assembly. Remove nut and pinch bolt securing lower ball joint to knuckle. See Figure . Separate steering knuckle from lower ball joint.
  2. Remove lower control arm pivot bolt. See Figure . Remove bolts securing lower control arm rear bushing onto chassis. Remove lower control arm.
