Selector Plate: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the selector mechanism.
    1. Fifth and reverse gear selector shaft.
    2. Selector shaft.
    3. Reverse gear selector lever.
    4. Selector plate.
    5. Fifth and reverse gear selector shaft guide sleeve.

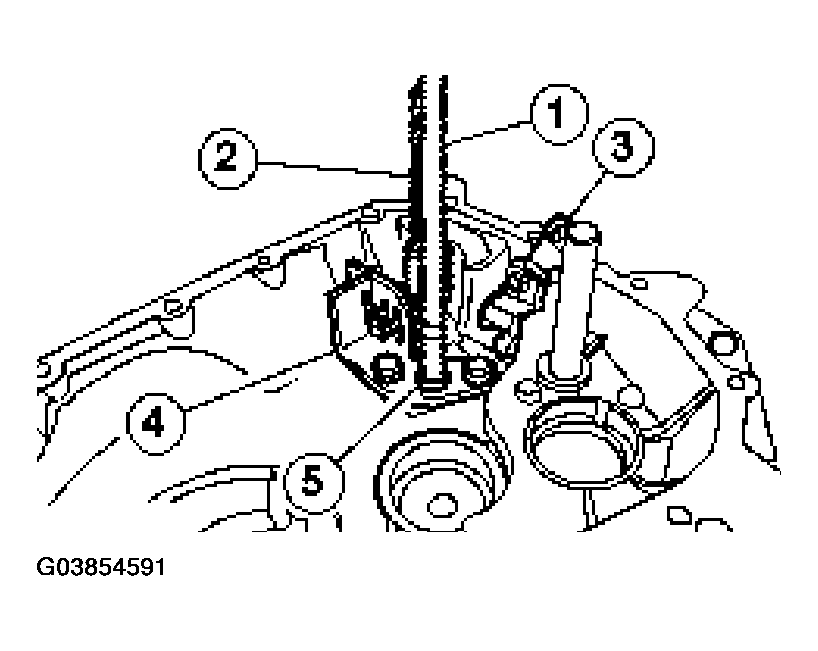

    Fig 1: Removing Selector Mechanism
    G03854591Courtesy of FORD MOTOR CO.
