Selector Plate: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Install the selector mechanism.
    1. Selector shaft.
    2. Reverse gear selector lever.
    3. Fifth and reverse gear selector shaft guide sleeve.
    4. Selector plate.

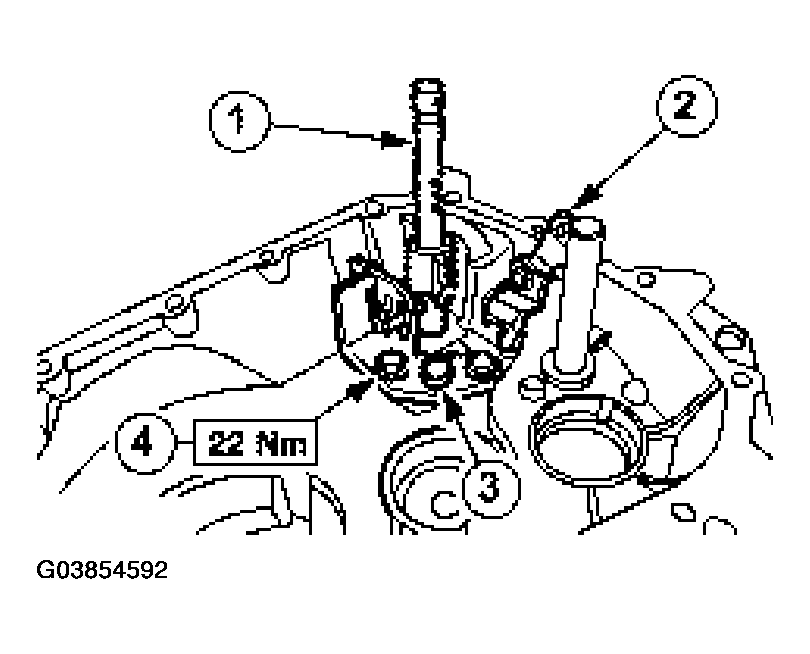

    Fig 1: Installing Selector Mechanism
    G03854592Courtesy of FORD MOTOR CO.
