Input Shaft: Disassembly

WARNING: This page is about a different variant/trim than selected.

CAUTION: Handle the synchronizer ring and synchronizer cone with care.

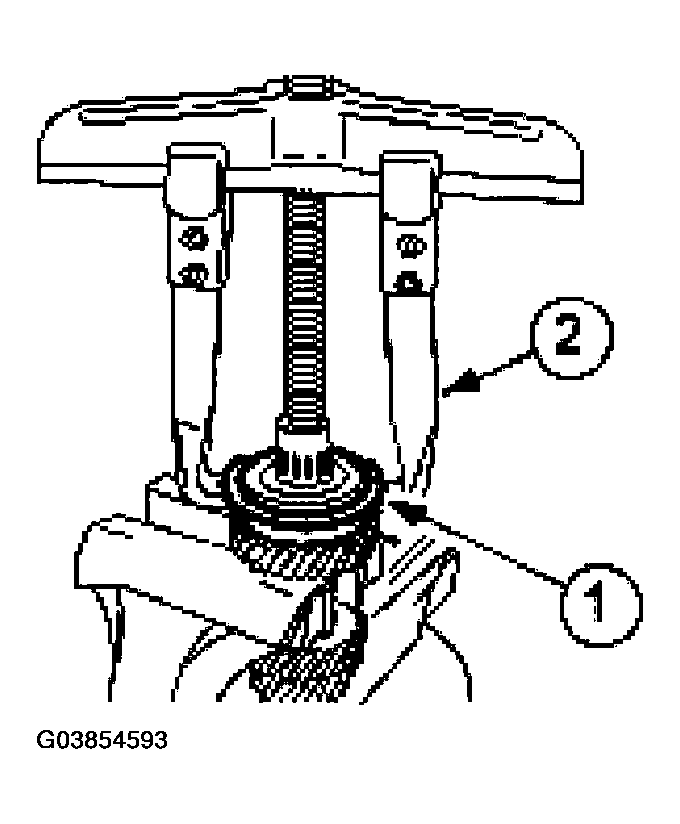

Using a puller, remove the bearing (transaxle end).
1. Install the snap-ring.
2. Install a standard puller underneath the snap-ring and pull off the bearing.
Fig 1: Removing Bearing
Courtesy of FORD MOTOR CO.

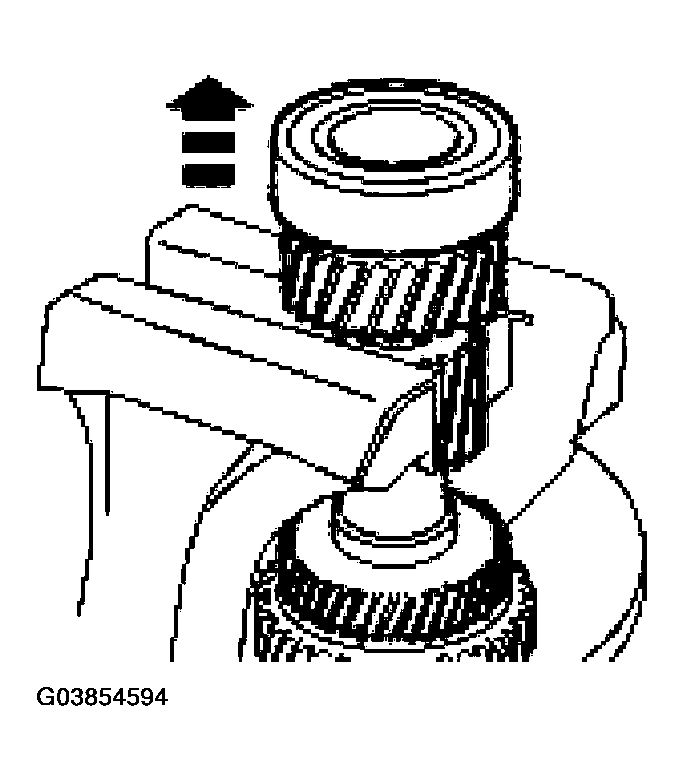

Remove the bearing (clutch end).

Fig 2: Removing Bearing (Clutch End)
Courtesy of FORD MOTOR CO.
