Input Shaft: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Carefully clean and check all parts and coat with Manual transmission fluid before reassembly.

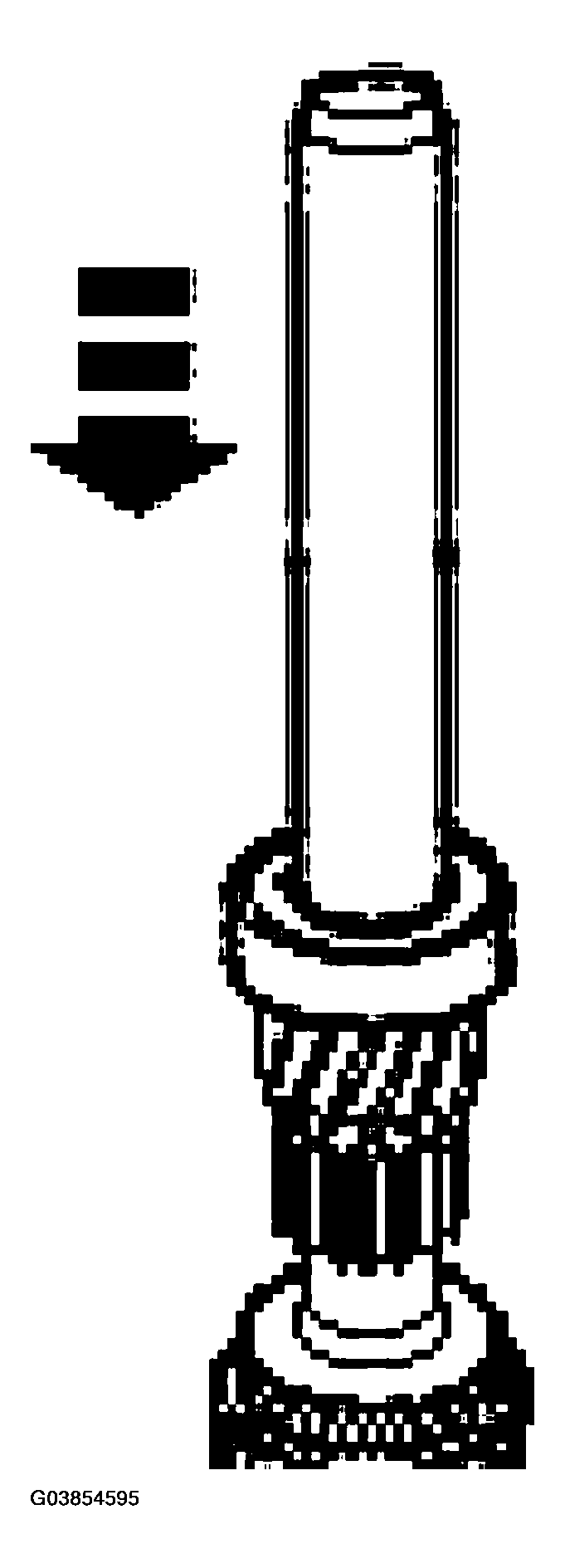

  2. Using a press and a suitable tube, install the bearing (clutch end).
    Fig 1: Installing Bearing (Clutch End)
    G03854595Courtesy of FORD MOTOR CO.
    3. NOTE: The annular groove in the bearing must face outwards.
    Fig 2: Installing Bearing (Transaxle End)
    G03854596Courtesy of FORD MOTOR CO.
  3. Using a press and a suitable tube, install the bearing (transaxle end).
