Sensor - Position, Right: Installation

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

Install the sensor.

Fig 1: Installing Sensor
Courtesy of FORD MOTOR CO.
Position and install the motor assembly.

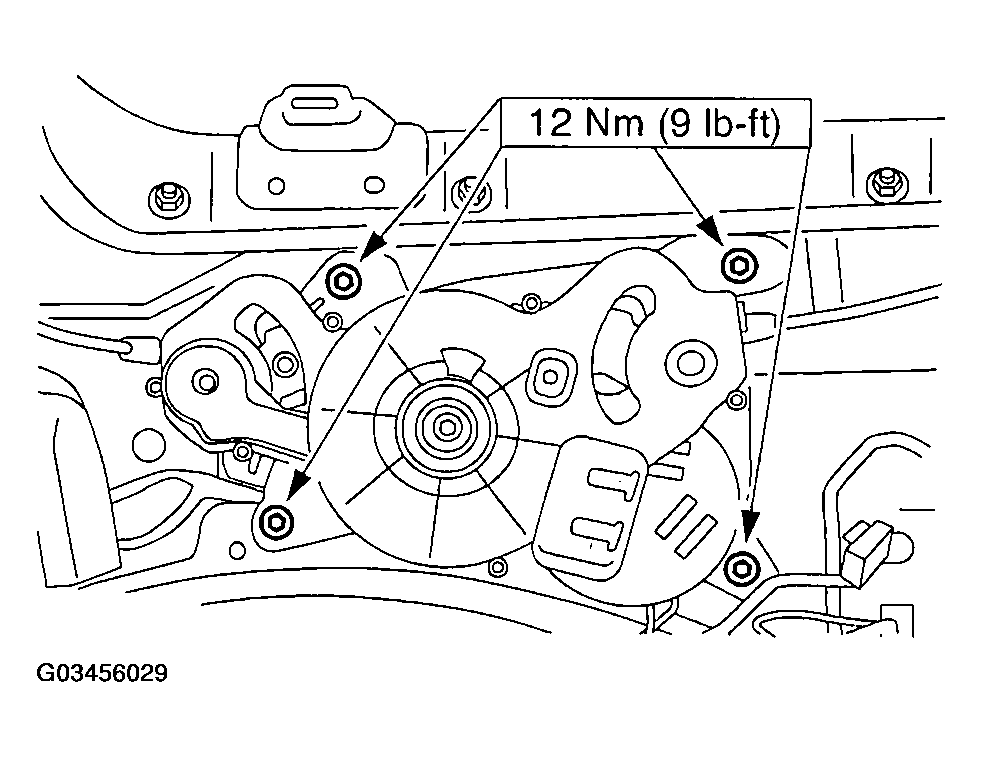

Fig 2: Positioning And Installing Motor Assembly
Courtesy of FORD MOTOR CO.
Connect the connectors.

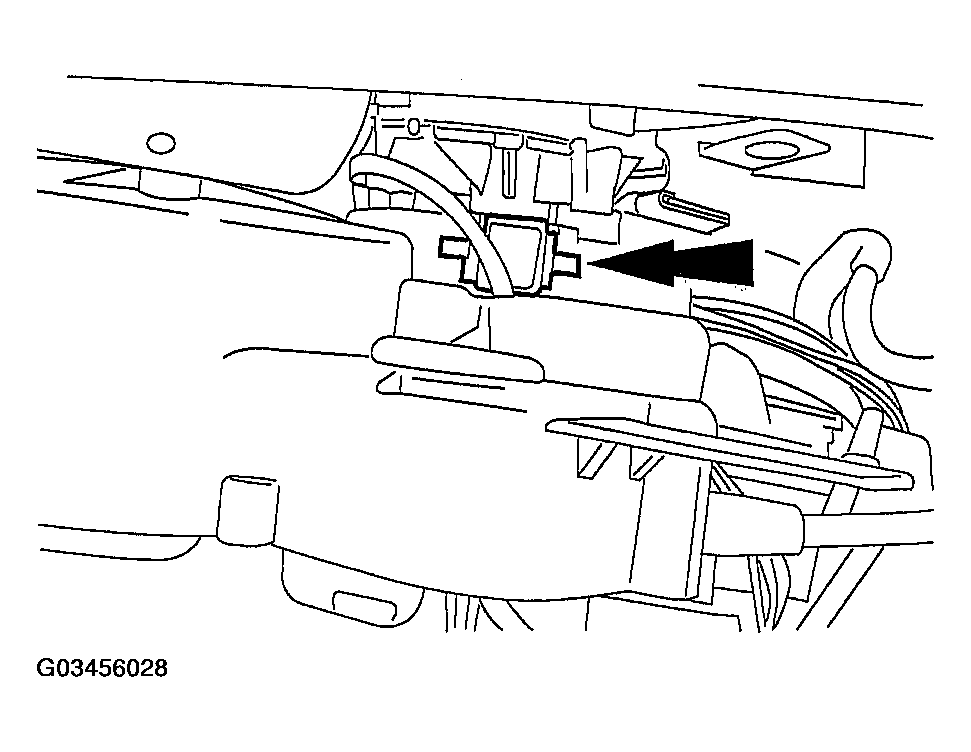

Fig 3: Connecting Connectors
Courtesy of FORD MOTOR CO.
Install the right quarter trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Install CJB fuse 6 (15A).

NOTE: Make sure that the power sliding doors are fully closed and latched.

NOTE: Make sure that the power sliding doors are unlocked.

Initialize both of the power sliding doors.
- Press the overhead console switch to open the left power sliding door to the full open position. Press the same switch to close the left power sliding door to the full closed position.
- Press the overhead console switch to open the right power sliding door to the full open position. Press the same switch to close the right power sliding door to the full close position.
