Sensor - Position, Left: Removal

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove CJB fuse 6 (15A).
  2. Remove the rear seat.
  3. Remove the left upper quarter trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  4. Remove the left lower quarter trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  5. Remove the upper and lower A/C ducts. For additional information, refer to AUXILIARY CLIMATE CONTROL .
  6. Release the position sensor from the actuator drive assembly.

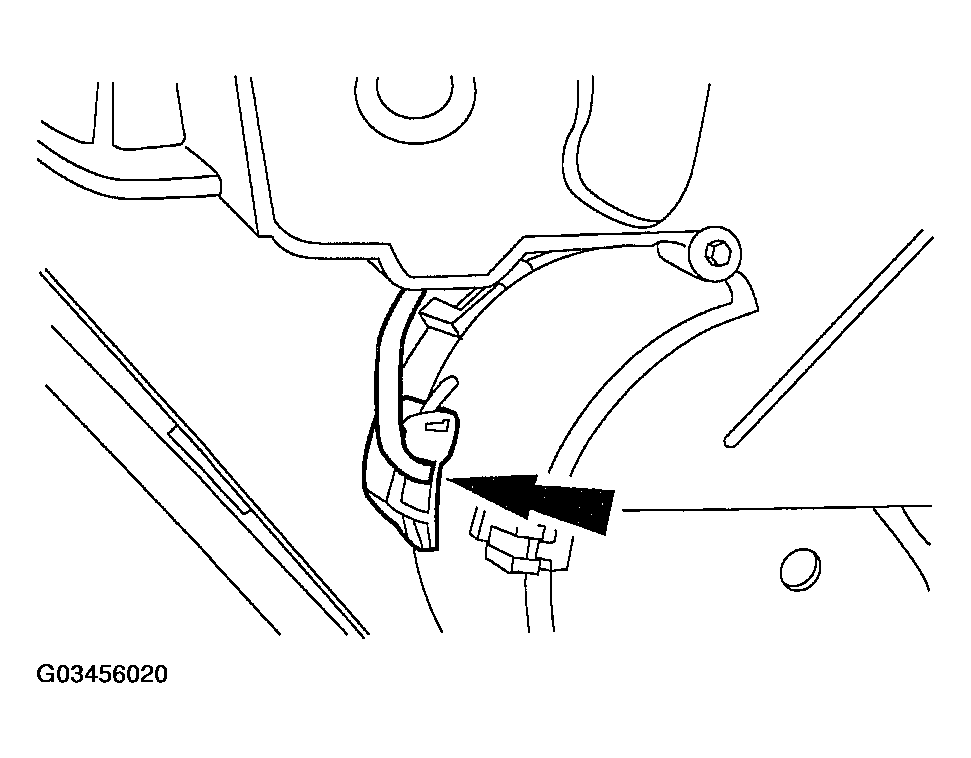

    Fig 1: Releasing Position Sensor From Actuator Drive Assembly
    G03456020Courtesy of FORD MOTOR CO.
  7. Disconnect the connector.

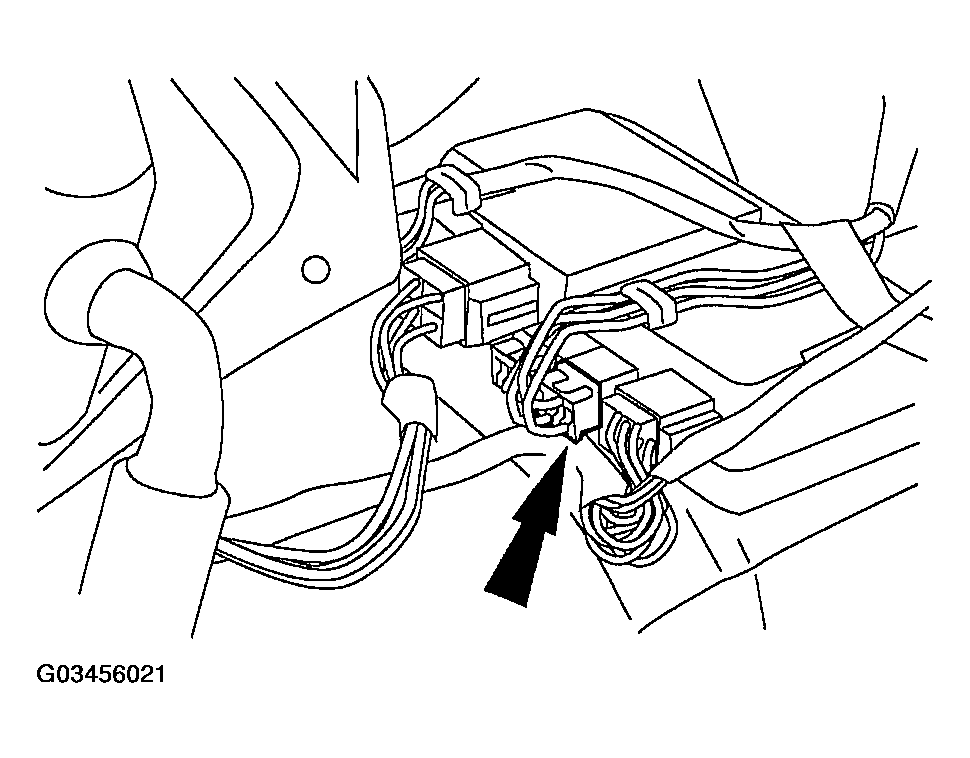

    Fig 2: Disconnecting Connector
    G03456021Courtesy of FORD MOTOR CO.
  8. Release the position sensor wiring from the harness and remove the position sensor.
