Door - Liftgate: Notes

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: An assistant is required to carry out this procedure.

Support the liftgate door in an open position.
Remove the hydraulic liftgate cylinder.

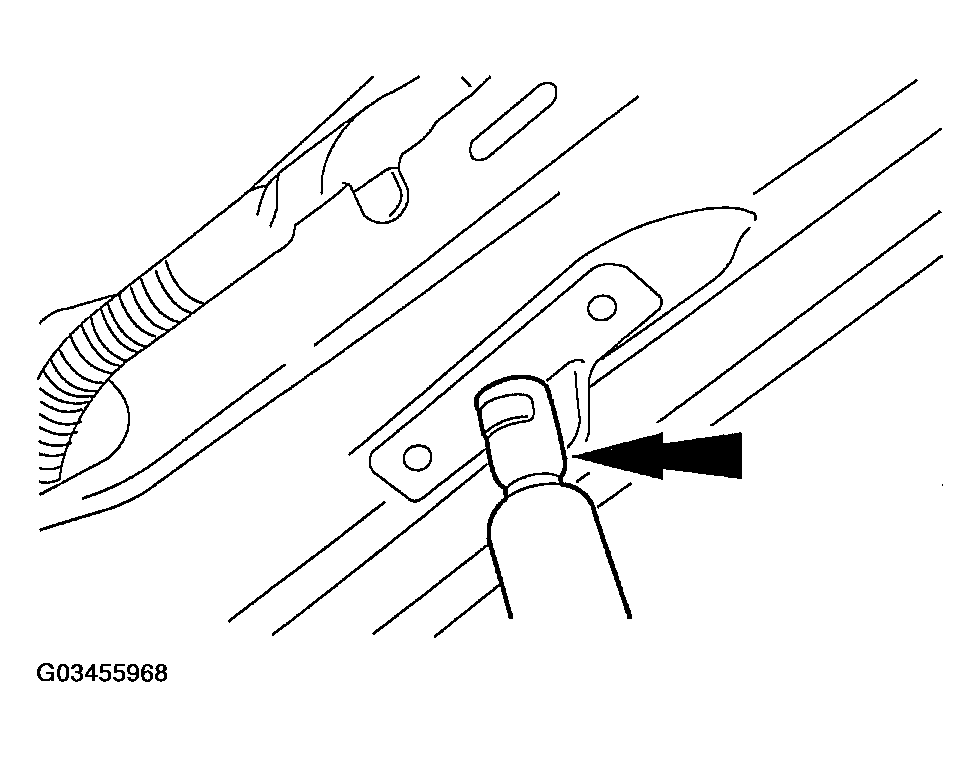

Fig 1: Removing Hydraulic Liftgate Cylinder
Courtesy of FORD MOTOR CO.
Lower the headliner.
1. Remove the pin-type retainers.
2. Remove the light.
3. Lower the headliner.

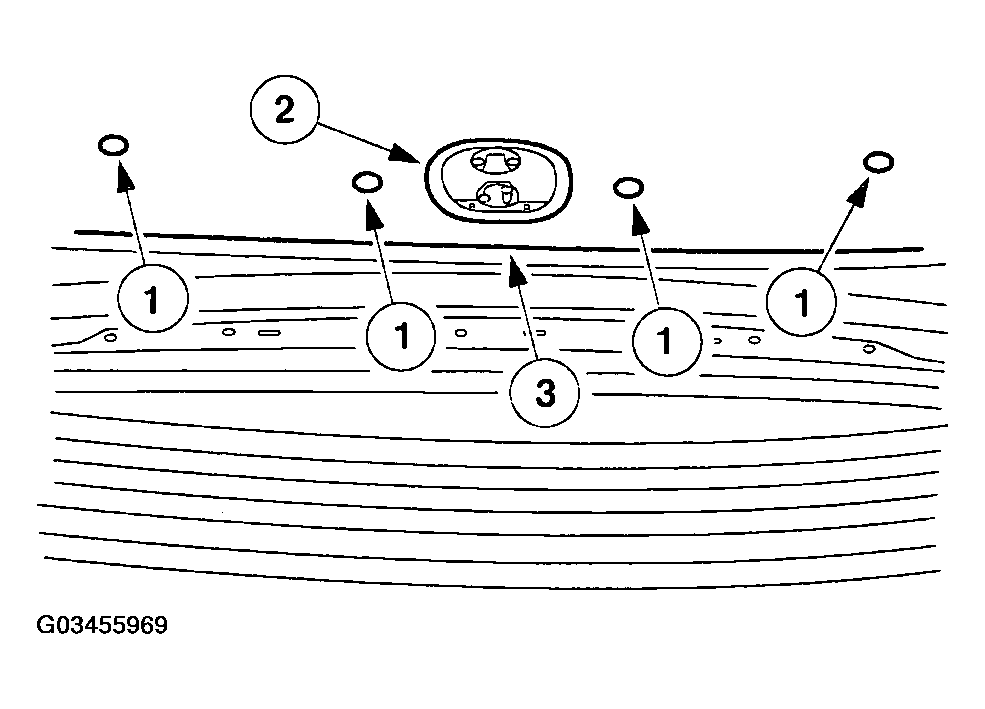

  Fig 2: Removing Light
  Courtesy of FORD MOTOR CO.
Remove the grommet.

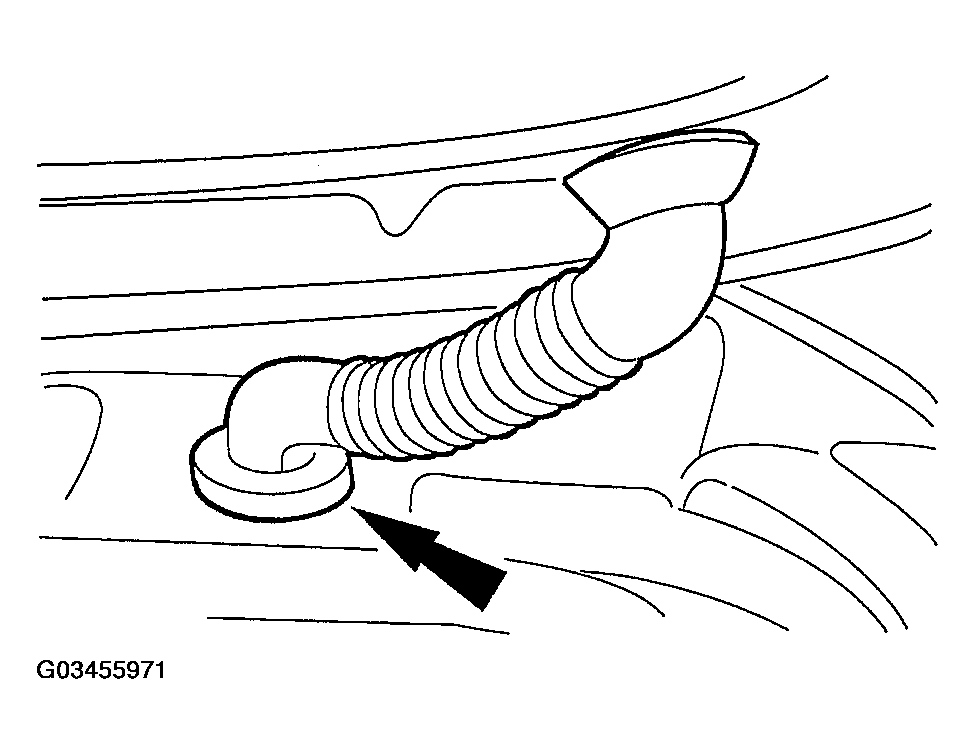

Fig 3: Removing Grommet
Courtesy of FORD MOTOR CO.
Remove the grommet.

Fig 4: Removing Grommet
Courtesy of FORD MOTOR CO.
Remove the liftgate door.

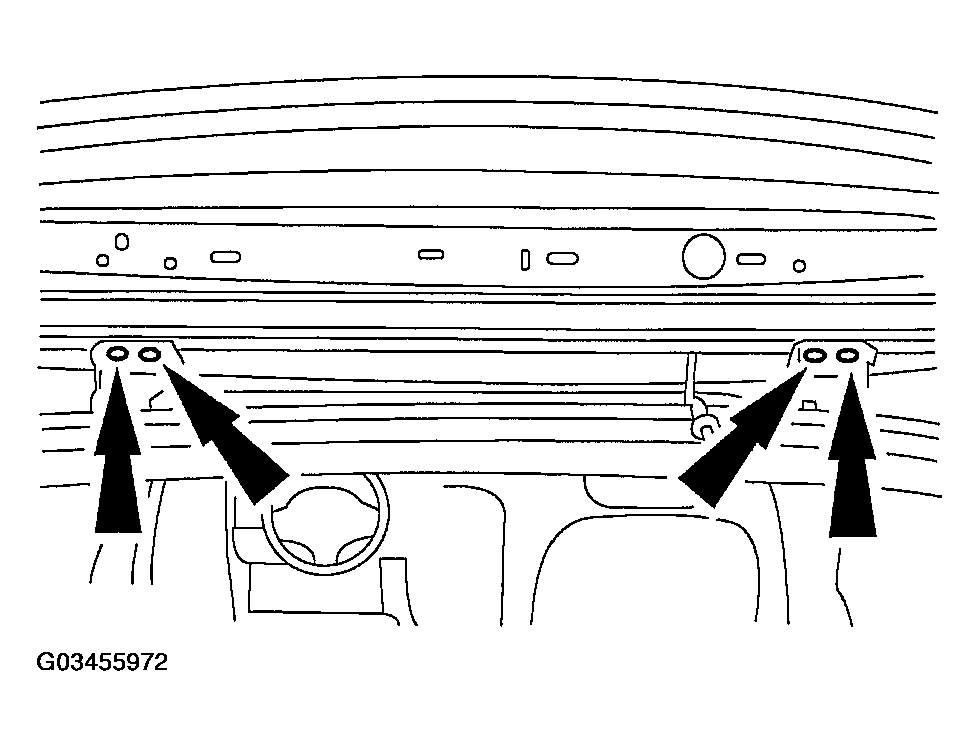

- Remove the bolts.
- Disconnect the electrical connectors.
- Disconnect the hose.

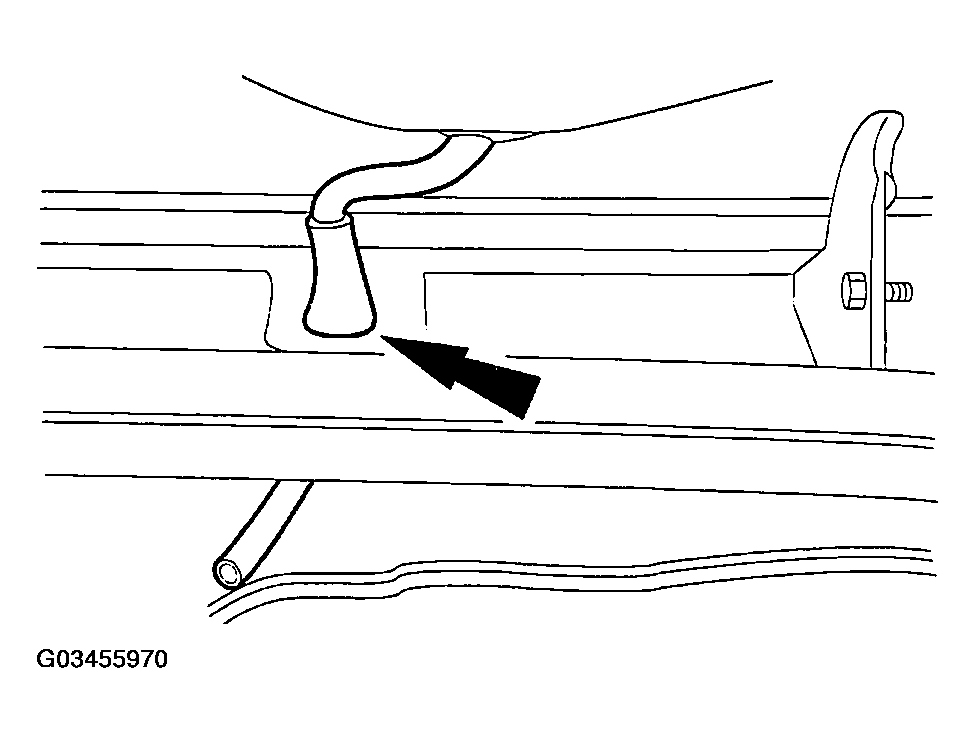

  Fig 5: Disconnecting Hose
  Courtesy of FORD MOTOR CO.
