Valve Seat Inspection

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
GENERAL EQUIPMENT

Valve seat width scale
  1. Measure the width of the valve seat.
    • Measure the valve seat width using the Valve seat width scale.
    • If the value is not to specification rework the valve seat.

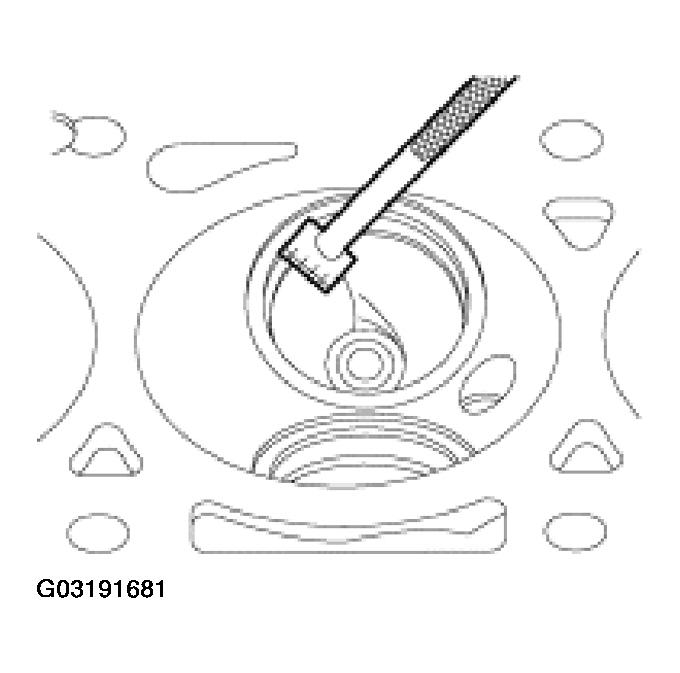

    Fig 1: Measuring Width Of Valve Seat
    G03191681Courtesy of FORD MOTOR CO.
