A/C Cycling Switch: Removal

WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the A/C cycling pressure switch electrical connector.

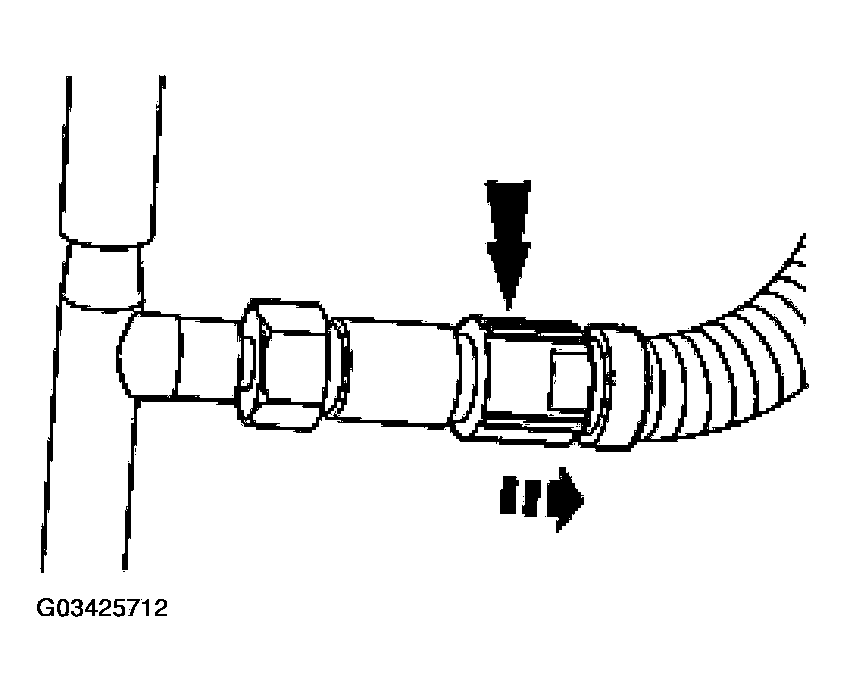

Fig 1: Disconnecting A/C Cycling Pressure Switch Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the A/C cycling switch (19E561).

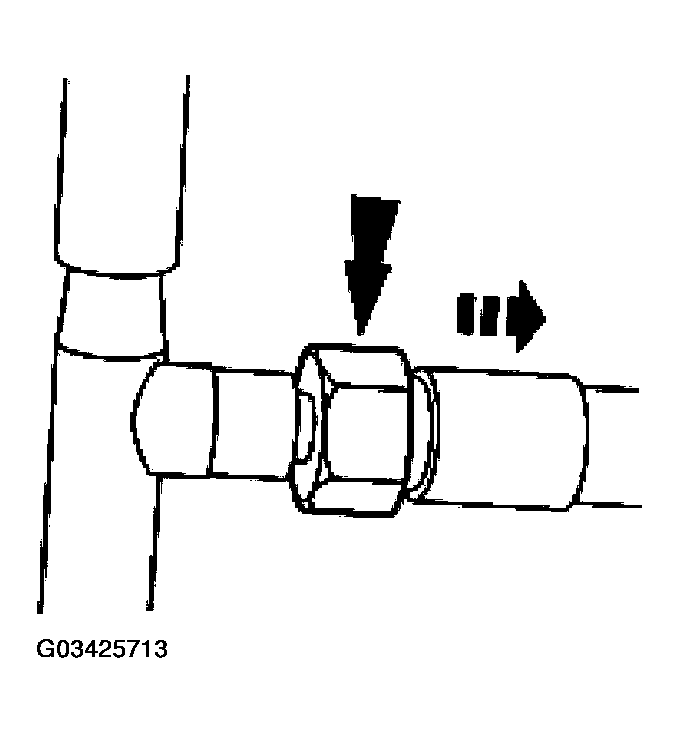

Fig 2: Removing A/C Cycling Switch
Courtesy of FORD MOTOR CO.
