Valve Seals: Removal

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve springs. For additional information, refer to VALVE SPRINGS .
  2. Remove and discard the valve stem seal.

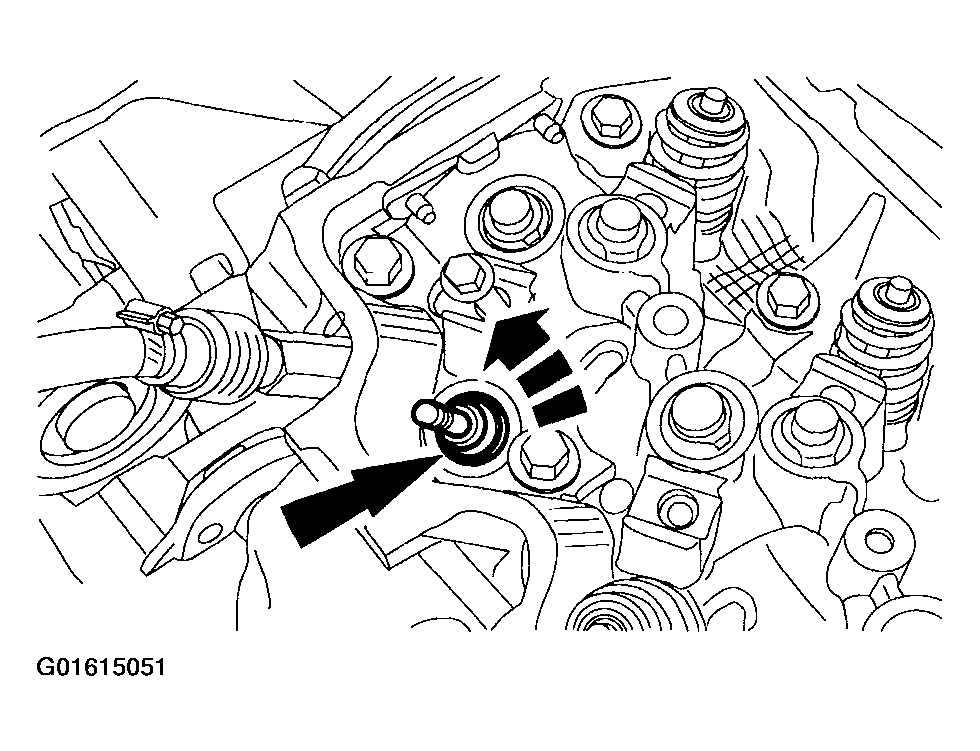

    Fig 1: Removing Valve Stem Seal
    G01615051Courtesy of FORD MOTOR CO.
