Oil Pan: Removal

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the three-way catalytic converter (TWC). For additional information, refer to EXHAUST SYSTEM .
Remove the bolts and the two brackets.

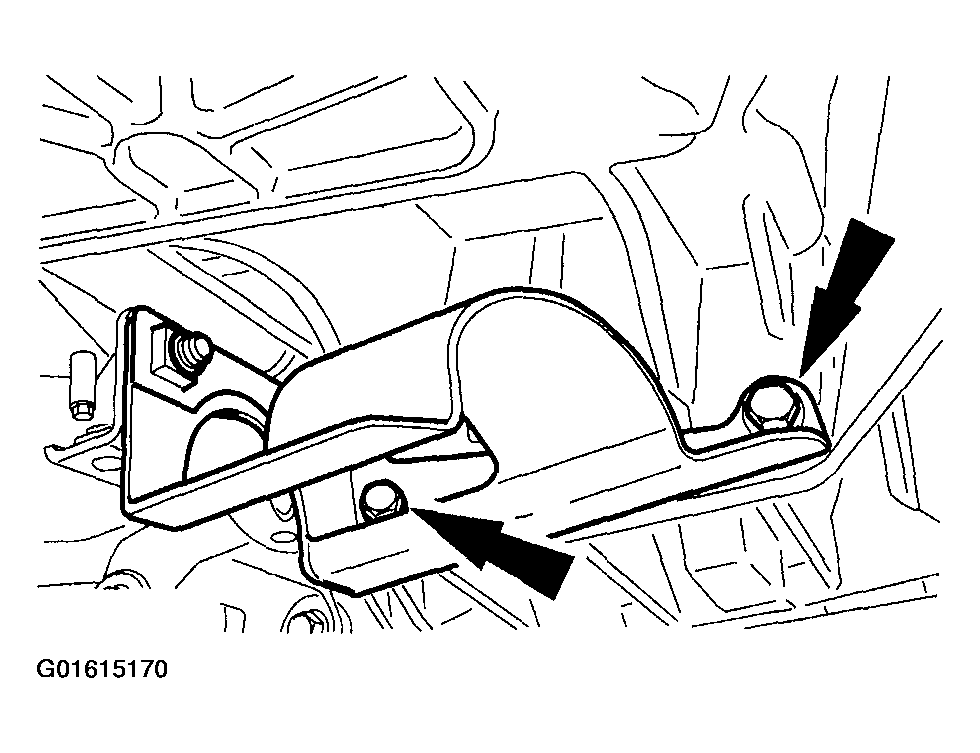

Fig 1: Removing Two Brackets
Courtesy of FORD MOTOR CO.
Remove the intake manifold bracket.

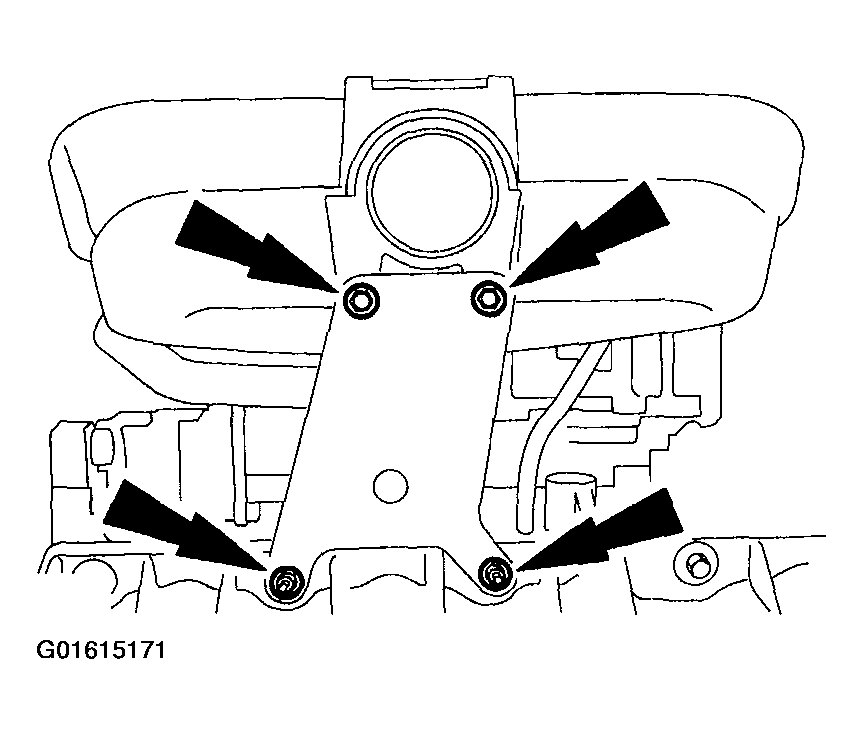

Fig 2: Removing Intake Manifold Bracket
Courtesy of FORD MOTOR CO.
Remove the axleshaft bracket clamp.

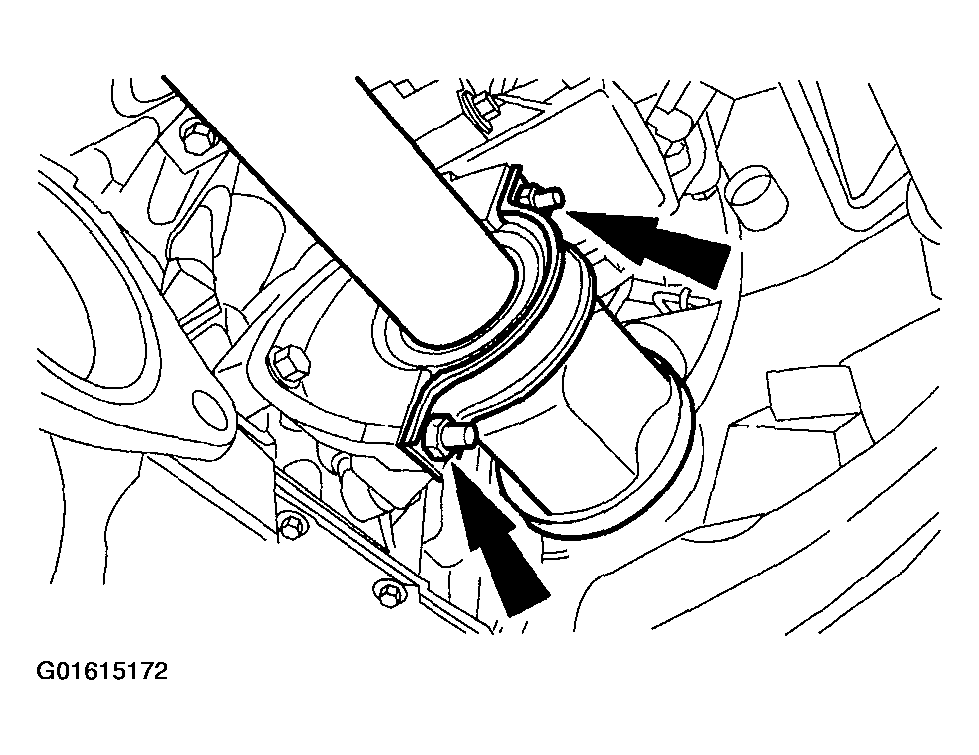

Fig 3: Removing Axleshaft Bracket Clamp
Courtesy of FORD MOTOR CO.
Remove the axleshaft bracket.

Fig 4: Removing Axleshaft Bracket
Courtesy of FORD MOTOR CO.
Remove the coolant tube bolt.

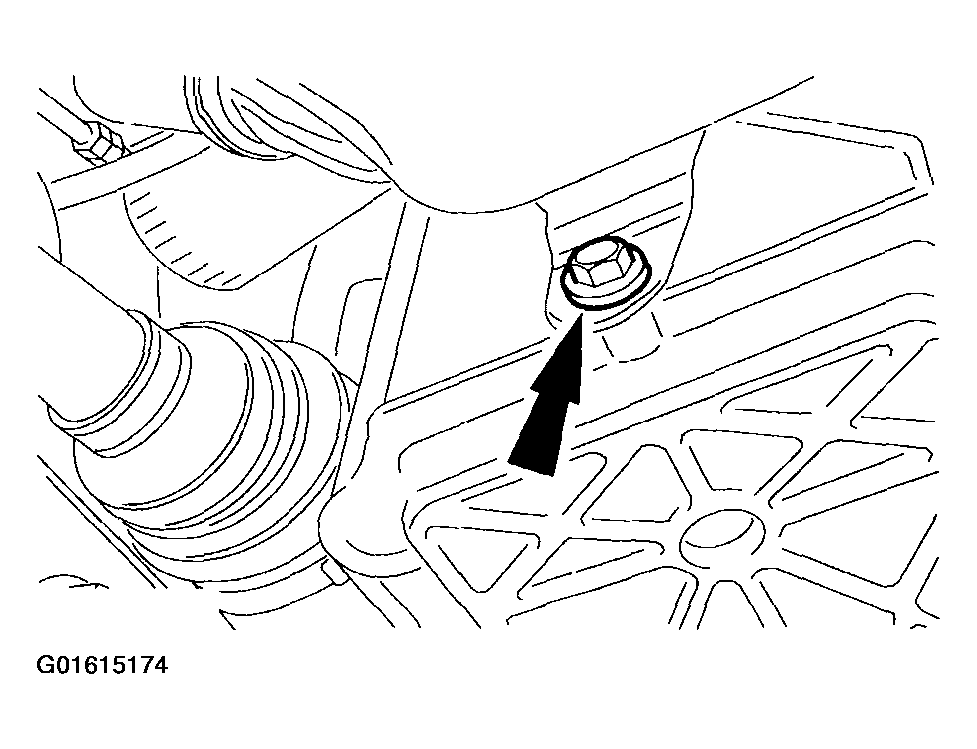

Fig 5: Removing Coolant Tube Bolt
Courtesy of FORD MOTOR CO.
Remove the oil pan drain plug and drain the engine oil. Install the drain plug.

NOTE: Note position of stud bolts for assembly reference.

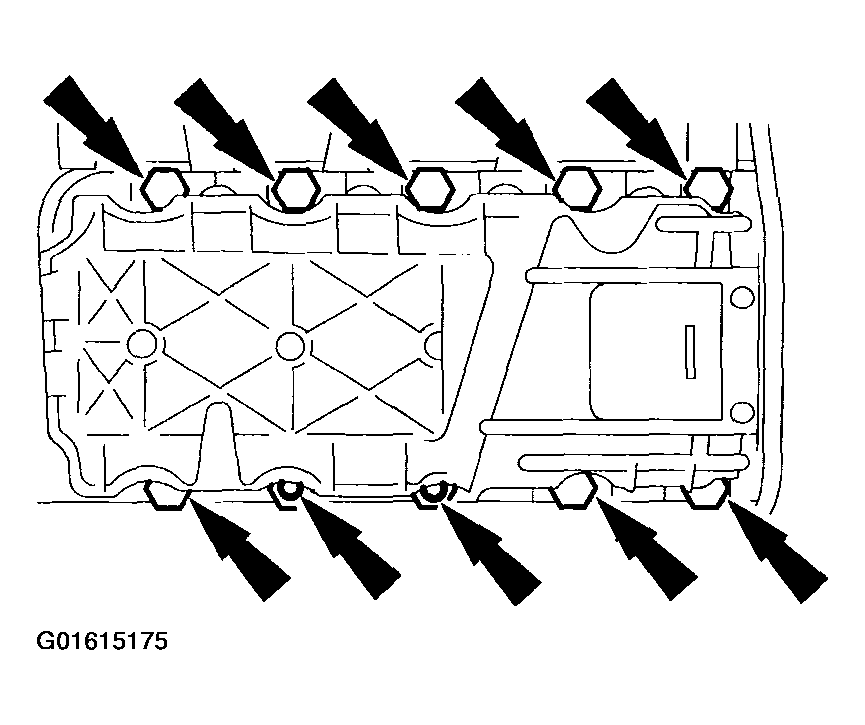

Remove the oil pan.
- Discard the gasket.
