Seat - Exploded View, Rear

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Seat backrest with armrest shown, seat backrest without armrest similar.

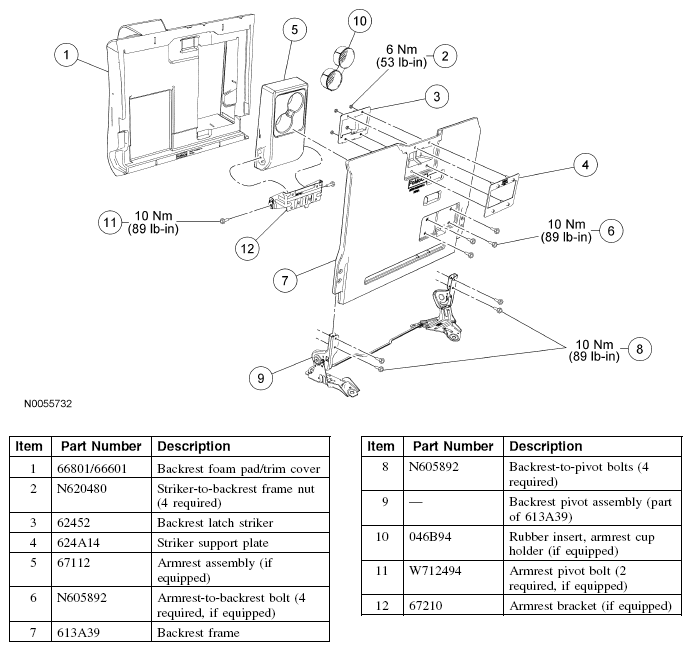

Fig 1: Exploded View Of Rear Seat Rear Seat Backrest, 60 Percent With Torque Specifications

Courtesy of FORD MOTOR CO.

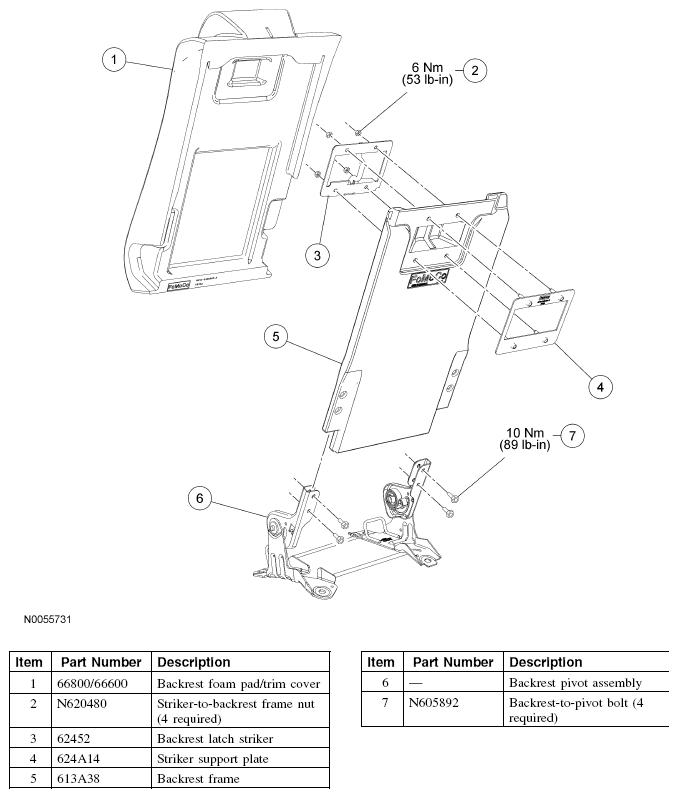

Fig 2: Exploded View Of Rear Seat Rear Seat Backrest, 40 Percent With Torque Specifications

Courtesy of FORD MOTOR CO.

For additional information, refer to the appropriate procedure.
