Pinpoint Test A: No Communication With The Stability Assist Module

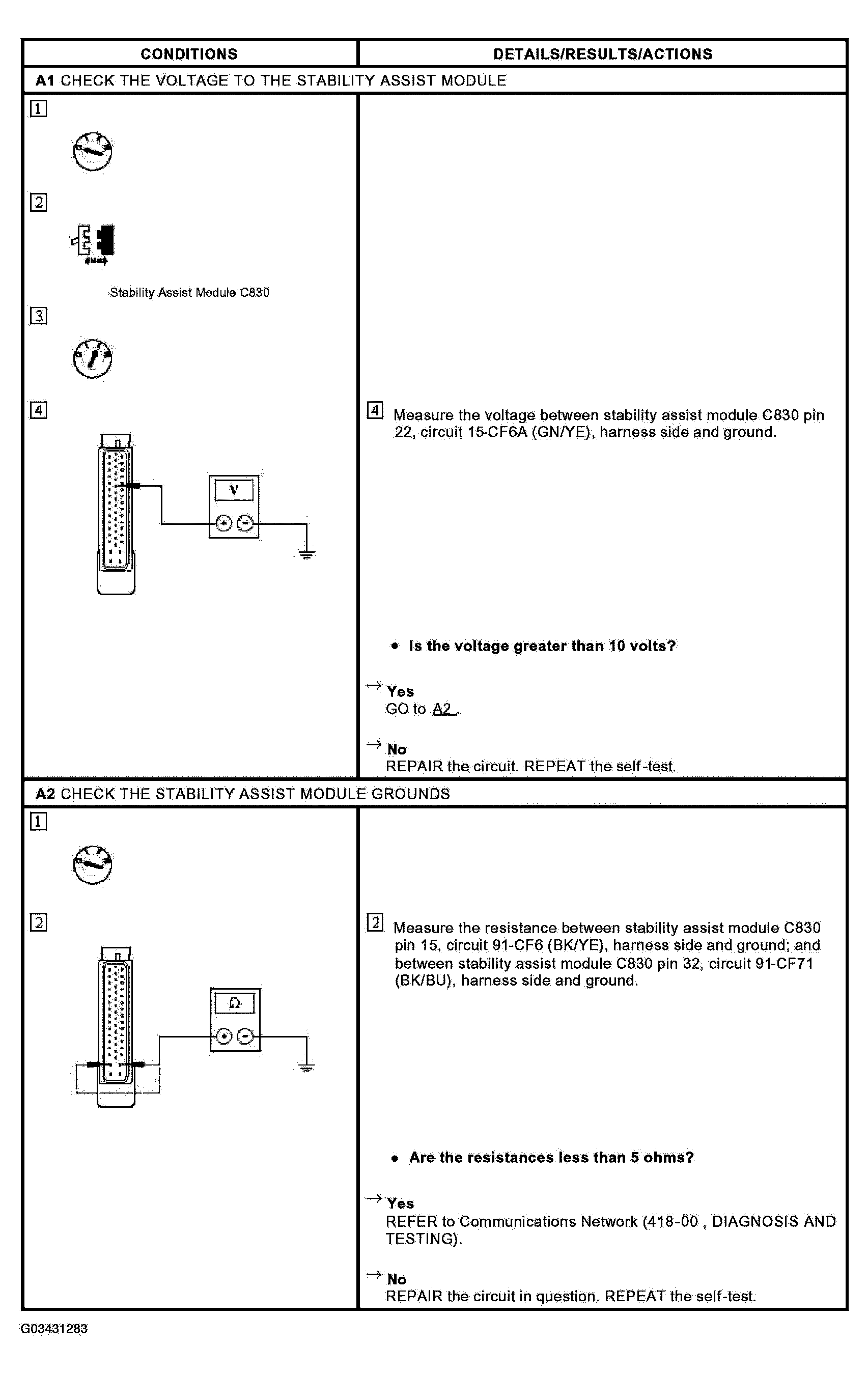

Fig 1: Pinpoint Test A Chart - No Communication With Stability Assist Module

G03431283

Courtesy of FORD MOTOR CO.
