Specifications
>>
Torque Specifications
Torque Specifications

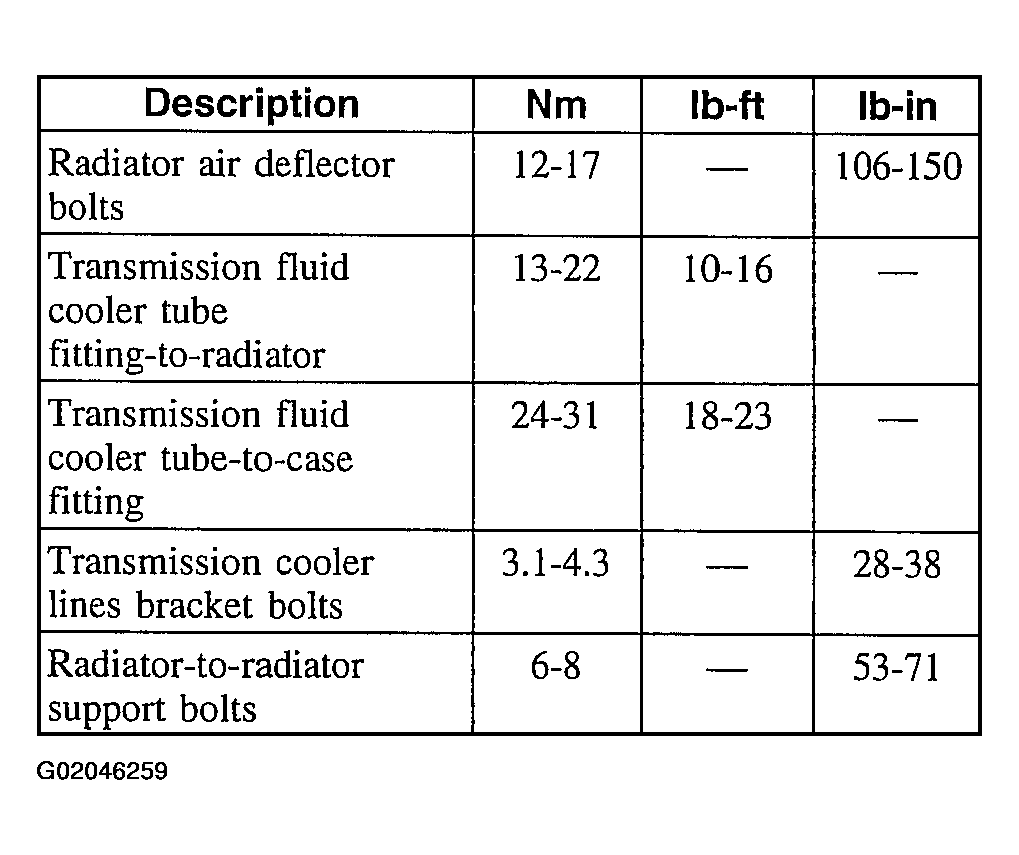

Fig 1: Transmission Cooling Torque Specifications
Courtesy of FORD MOTOR CO.
Fig 2: Transmission Cooling Torque Specifications
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
