LEMON Manuals
: Even more car manuals for everyone
Home
>>
Ford
>>
2002
>>
Explorer Sport 4.0 K, 4WD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission
>>
Specifications
>>
Shift Speed
Shift Speed

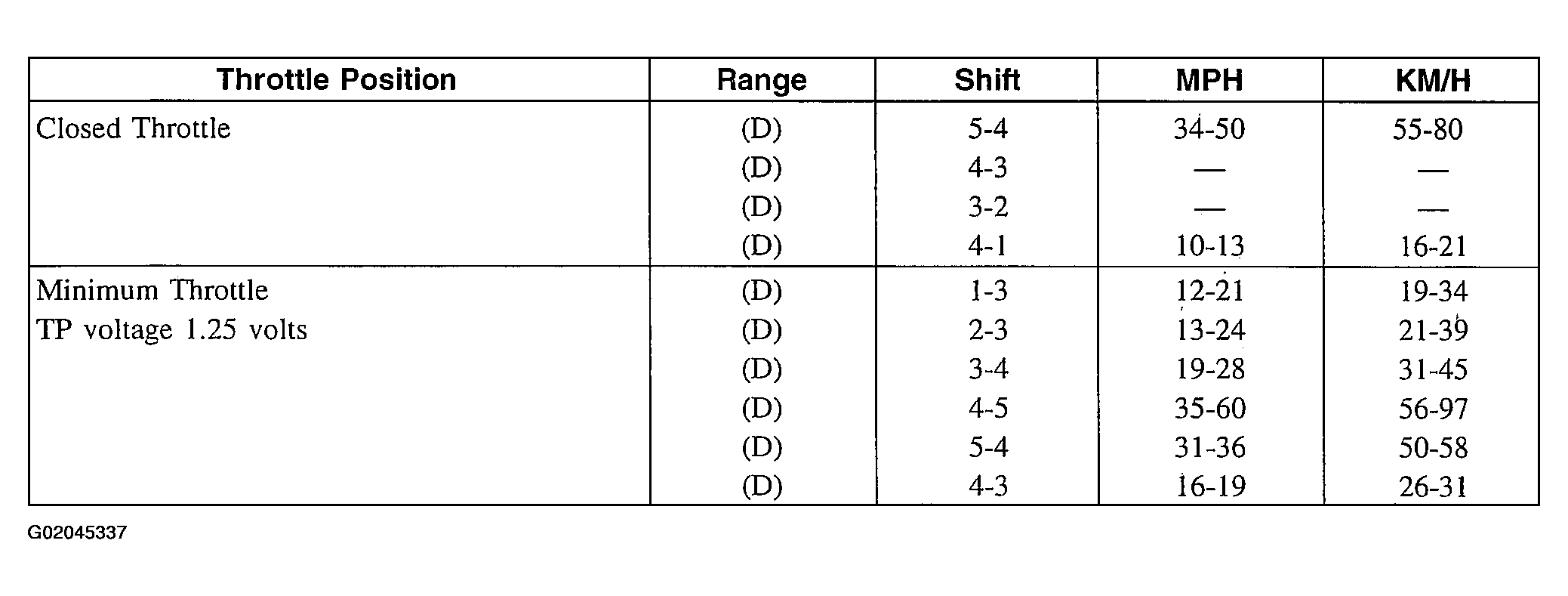

Fig 1: Shift Speed Chart (1 Of 2)
Courtesy of FORD MOTOR CO.

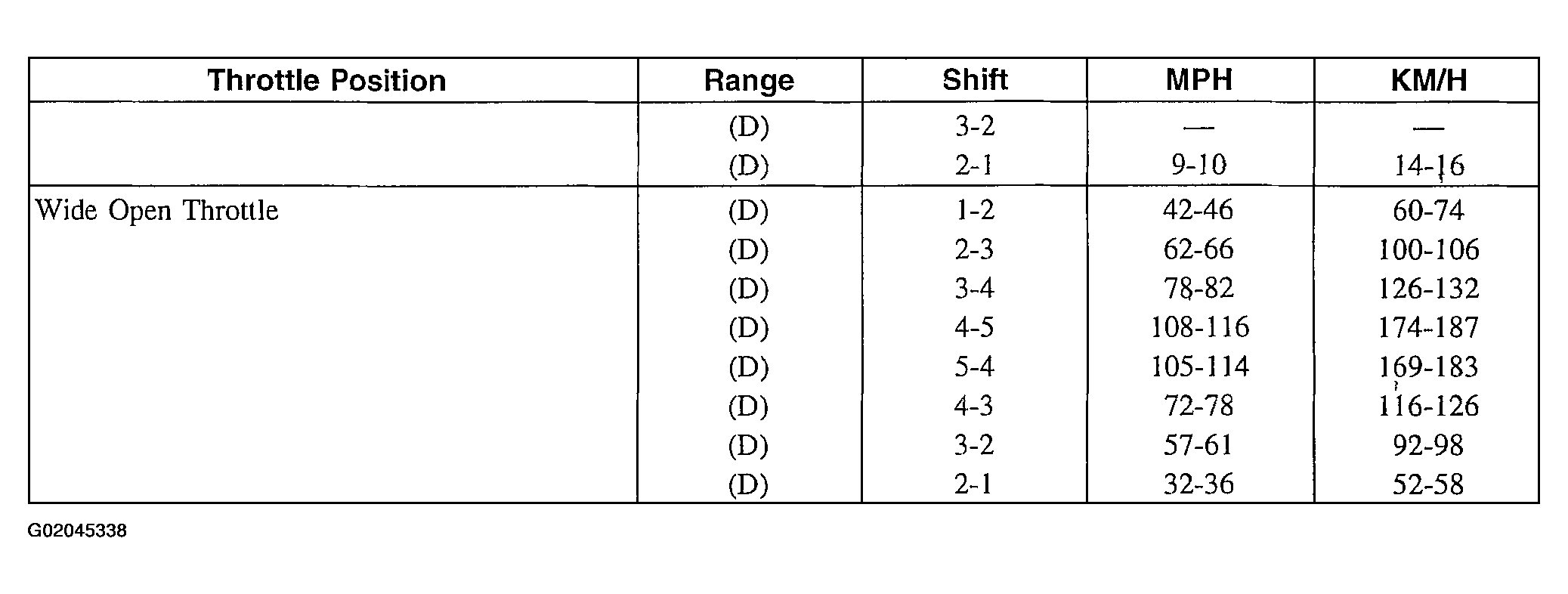

Fig 2: Shift Speed Chart (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
