Automatic Transmission
>>
Specifications
>>
End Play Specifications
End Play Specifications

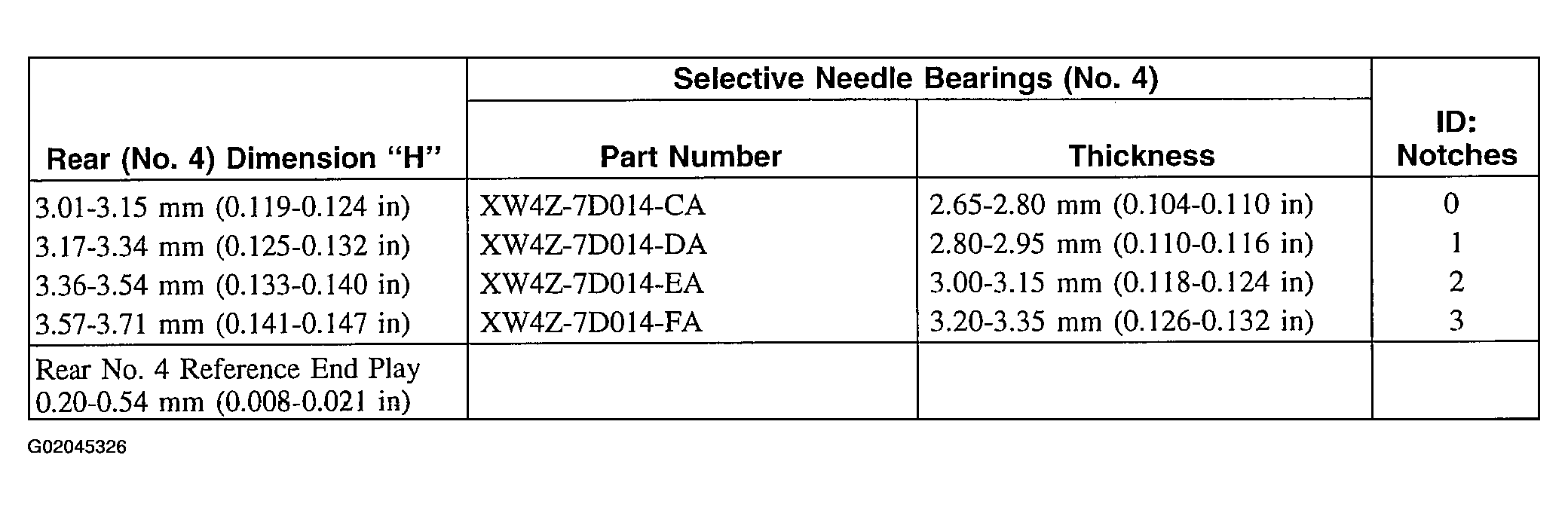

Fig 1: End Play Specifications (1 Of 2)
Courtesy of FORD MOTOR CO.

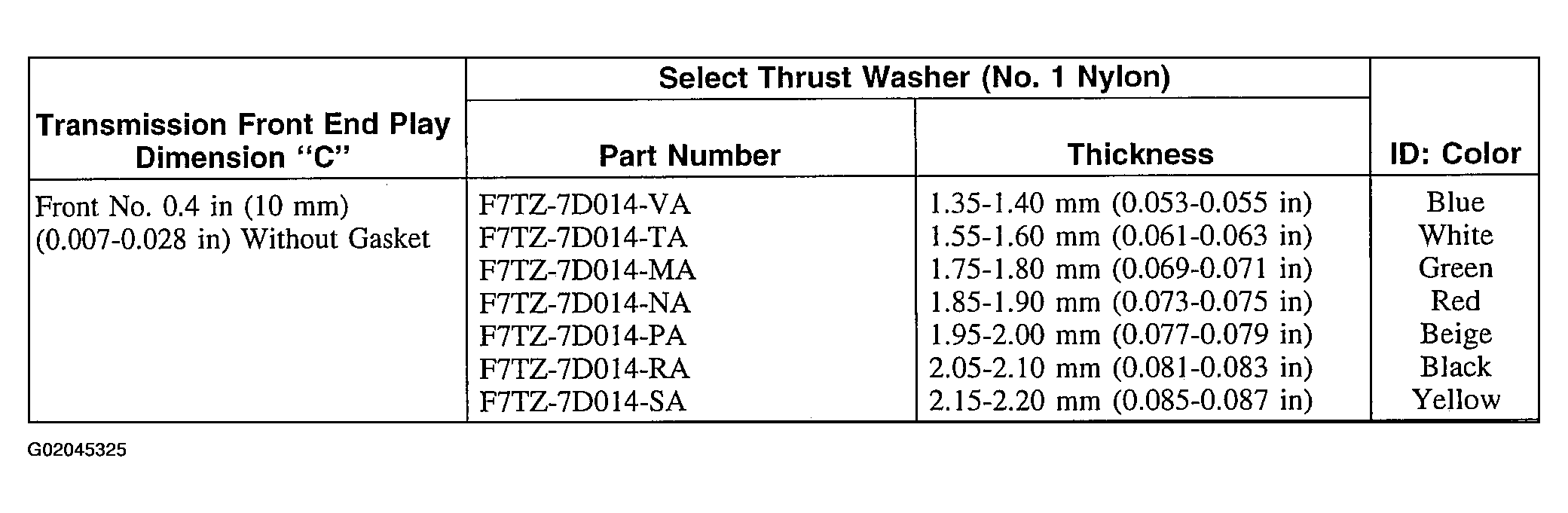

Fig 2: End Play Specifications (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
