Automatic Transmission: Installation: Transmission

Fig 1: Identifying Transmission Installation Materials

Courtesy of FORD MOTOR CO.

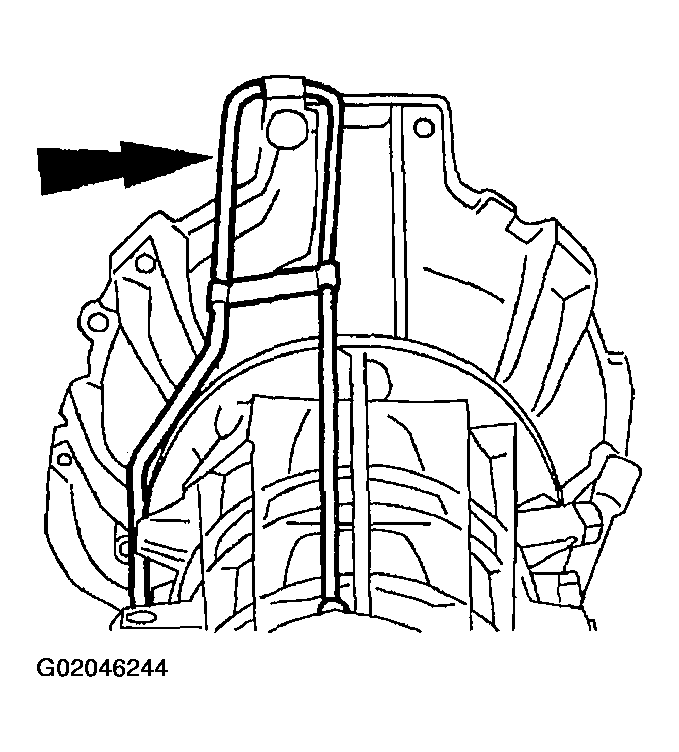

1. On 4x4 models, install the vent tube assembly.
   Fig 2: Installing Vent Tube Assembly

   Courtesy of FORD MOTOR CO.
WARNING: Secure the transmission to the transmission jack with a safety chain. Failure to follow these instructions can result in personal injury.
2. Raise and position the transmission.
3. Remove the special tool.
   Fig 3: Removing Special Tool

   Courtesy of FORD MOTOR CO.
NOTE: Align the flexplate to converter marks made at removal.

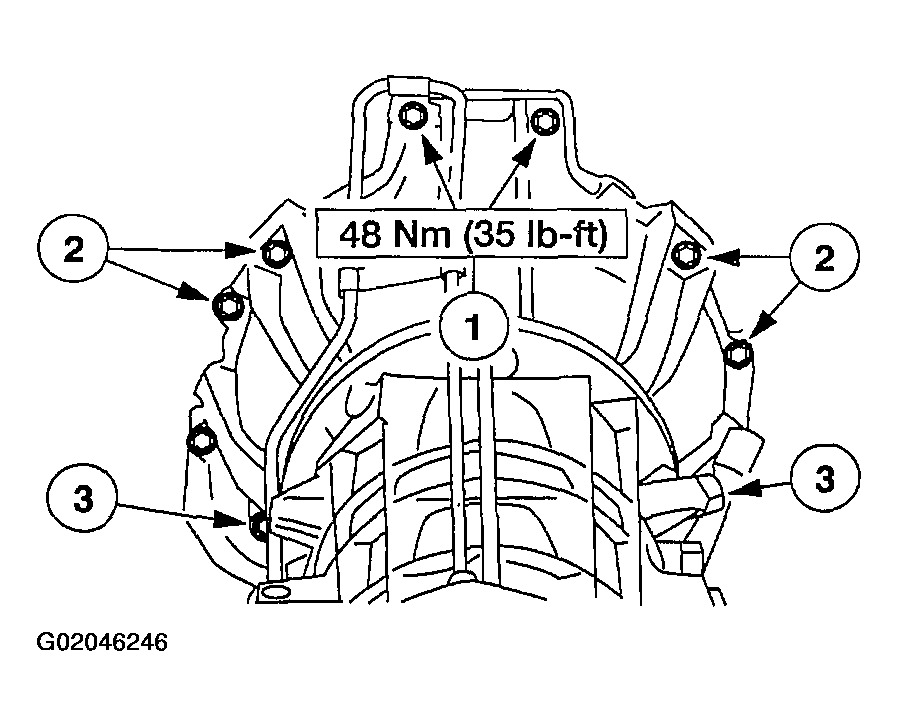

Fig 4: Installing Transmission-To-Engine Screws
Courtesy of FORD MOTOR CO.
4. Install the transmission-to-engine screws.
   1. Install 2 M10 x 40 mm (1.6 in) screws.
   2. Install 4 M10 x 50 mm (2 in) screws.
   3. Install 2 M10 x 75 mm (3 in) screws.
5. If equipped, install the transfer case. For additional information, refer to TRANSFER CASE - AUTOMATIC SHIFT .

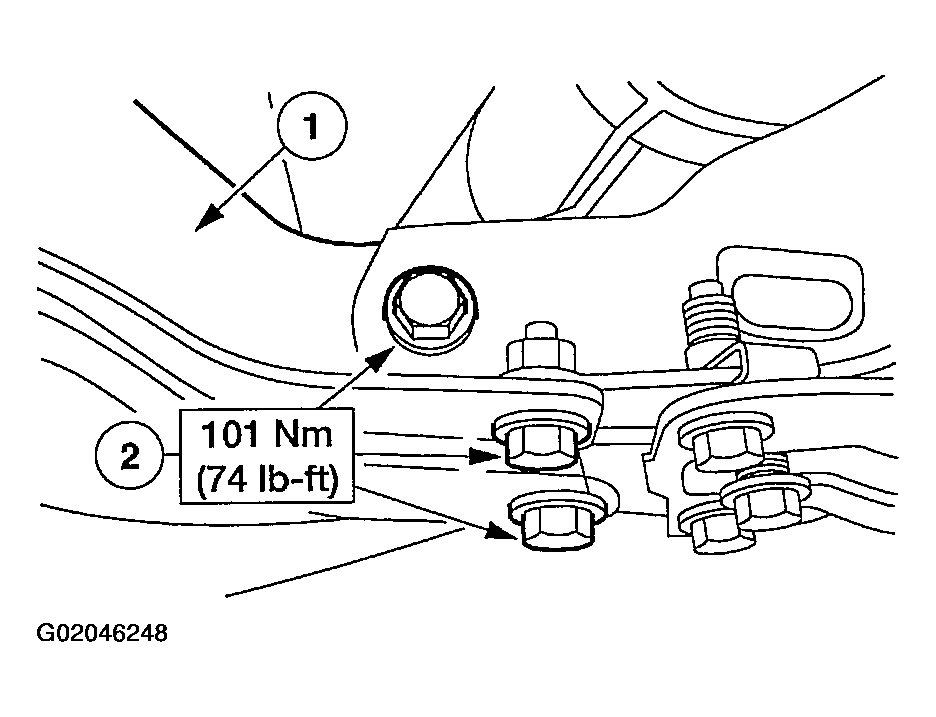

6. Install the transmission mount screws.
   1. Install the exhaust bracket.
   2. Install the screws.
   Fig 5: Installing Transmission Mount Screws

   Courtesy of FORD MOTOR CO.
7. Install the crossmember.
   1. Position the crossmember.
   2. Install the six crossmember bolts (three each side).
   Fig 6: Installing Crossmember

   Courtesy of FORD MOTOR CO.

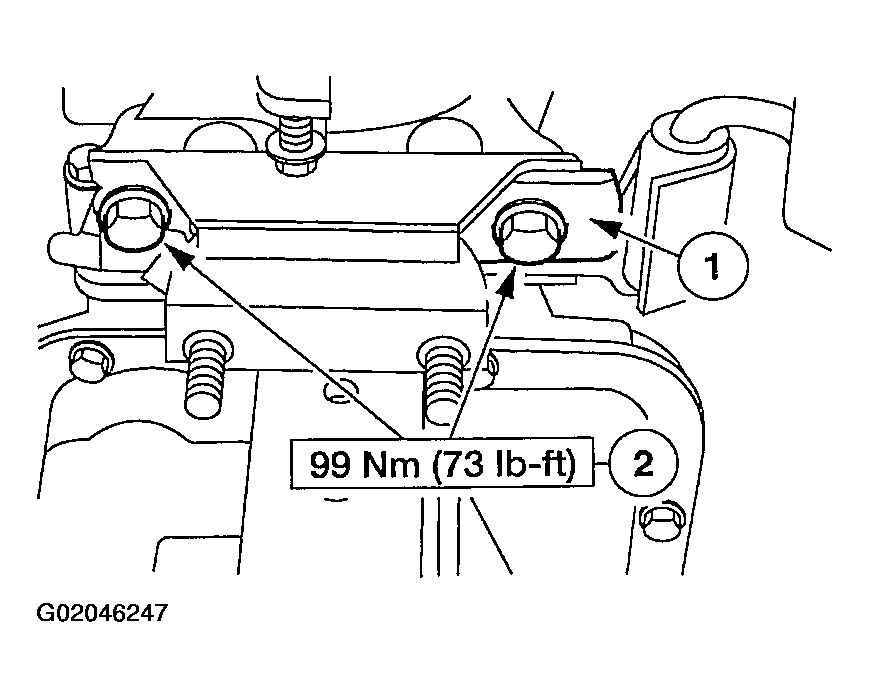

8. Install the transmission mount into the crossmember and tighten the nuts.
   Fig 7: Installing Transmission Mount

   Courtesy of FORD MOTOR CO.
9. Remove the High-Lift Transmission Jack.
CAUTION: Use care not to bend or otherwise damage the cooler lines.
Fig 8: Installing Transmission Cooler Lines
Courtesy of FORD MOTOR CO.
10. Hold the case fitting and install the transmission cooler lines.
11. Install the four torque converter-to-flexplate nuts.
    • Rotate the crankshaft as needed to gain access to all the nuts.
    Fig 9: Installing Four Torque Converter-To-Flexplate Nuts

    Courtesy of FORD MOTOR CO.
12. Install the starter motor. For additional information, refer to STARTER MOTOR .
13. Install the catalytic converter assembly and crossover pipe nuts.

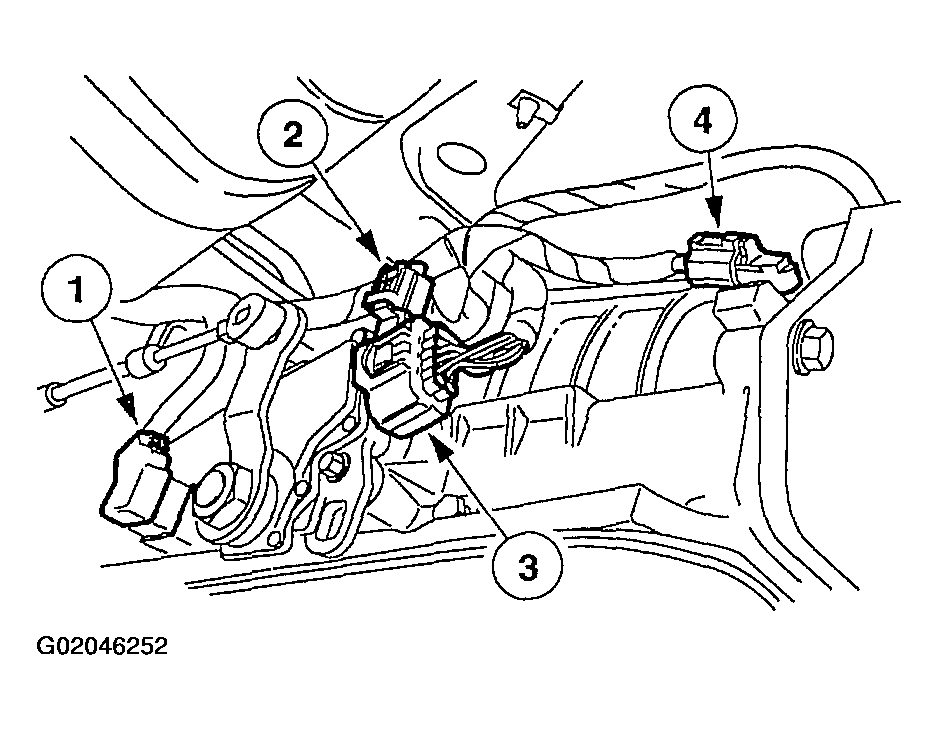

14. Connect the transmission wiring harness.
    1. Connect the transmission connector.
    2. Connect the intermediate shaft speed (ISS) sensor.
    3. Connect the digital transmission range (TR) sensor connector.
    4. Connect the output shaft speed (OSS) sensor
    Fig 10: Connecting Transmission Wiring Harness

    Courtesy of FORD MOTOR CO.

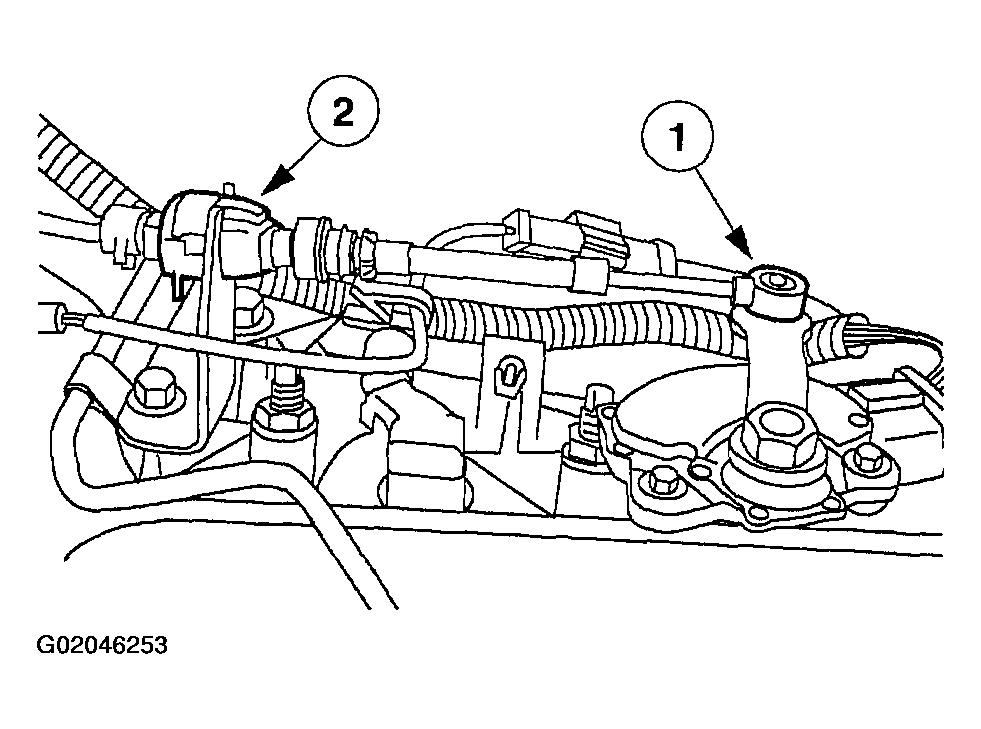

15. Install the shift cable.
    1. Connect the shift cable to the manual control lever.
    2. Connect the shift cable to the bracket.
    Fig 11: Installing Shift Cable

    Courtesy of FORD MOTOR CO.
NOTE: Align the driveshaft with the marks made during removal to make sure balance is correct.
Fig 12: Installing Rear Driveshaft Bolts
Courtesy of FORD MOTOR CO.
16. Install the rear driveshaft bolts.
NOTE: Install a new in-line fluid filter or filter kit under the following conditions:
• Installation of a new transmission.
• Installation of a remanufactured transmission.
• Installation of new internal components (i.e., clutch plates, bands, torque converter or gears)
NOTE: If the vehicle was not equipped with a fluid filter, install a fluid filter kit. Follow the instructions supplied in the kit. If the vehicle was equipped with a filter, install a new filter.
Fig 13: Installing New In-Line Fluid Filter
Courtesy of FORD MOTOR CO.
17. Install a new in-line transmission fluid filter kit or filter.
18. Lower the vehicle.

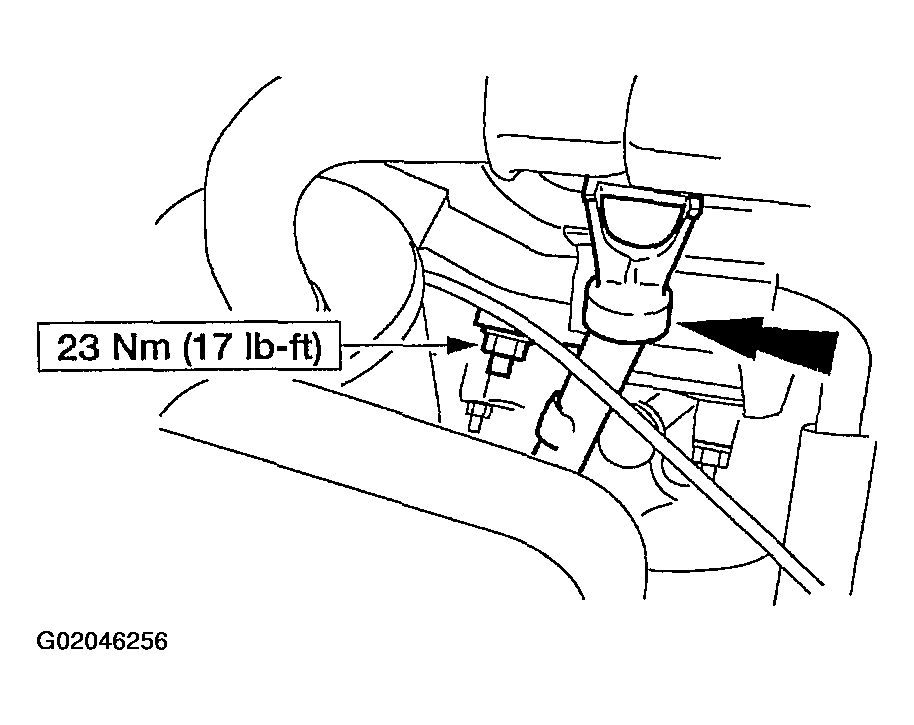

19. Install the upper fluid filler tube and bracket screw.
    Fig 14: Installing Upper Fluid Filler Tube & Bracket Screw

    Courtesy of FORD MOTOR CO.
NOTE: When the battery has been disconnected and reconnected, some abnormal drive symptoms can occur while the vehicle relearns its adaptive strategy. The customer needs to be notified that they may experience slightly different upshifts (either soft or firm) and that this is a temporary condition that will eventually return to normal operating condition.
20. Connect the battery ground cable.
21. Fill the transmission with clean automatic transmission fluid and inspect for correct operation.
22. Verify that the shift cable is correctly adjusted. For additional information, refer to EXTERNAL CONTROLS .
