Main Control Valve Body: Assembly

CAUTION: Do not lose parts when cleaning or servicing.

Thoroughly clean all parts in solvent and blow dry with moisture free compressed air.

CAUTION: Do not stone, file or sand the valves. This will remove the anodized finish and may result in further main control or transmission damage.

After cleaning the main control valve body, carry out the following:
- Inspect all valve and plug bores for scoring or burrs.
- Check all fluid passages for obstructions.
- Inspect all valves and plugs for burrs.
- Inspect all mating surfaces for burrs or distortion.
- Inspect all springs for distortion.
- Check all valves and plugs for free movement in their respective bores.
  - Valves and plugs, when dry, must fall from their own weight into their respective bores.
- Roll the manual valve on a flat surface to check for a bent condition.
Clean and inspect the EPC solenoid screens.

Fig 1: Inspecting EPC Solenoid Screens
Courtesy of FORD MOTOR CO.
Remove and install new shift solenoid O-rings.

Fig 2: Identifying New Shift Solenoid O-Rings
Courtesy of FORD MOTOR CO.
Clean and inspect the torque converter clutch solenoid.

Fig 3: Inspecting Torque Converter Clutch Solenoid
Courtesy of FORD MOTOR CO.
Install the four main control valve body check balls.

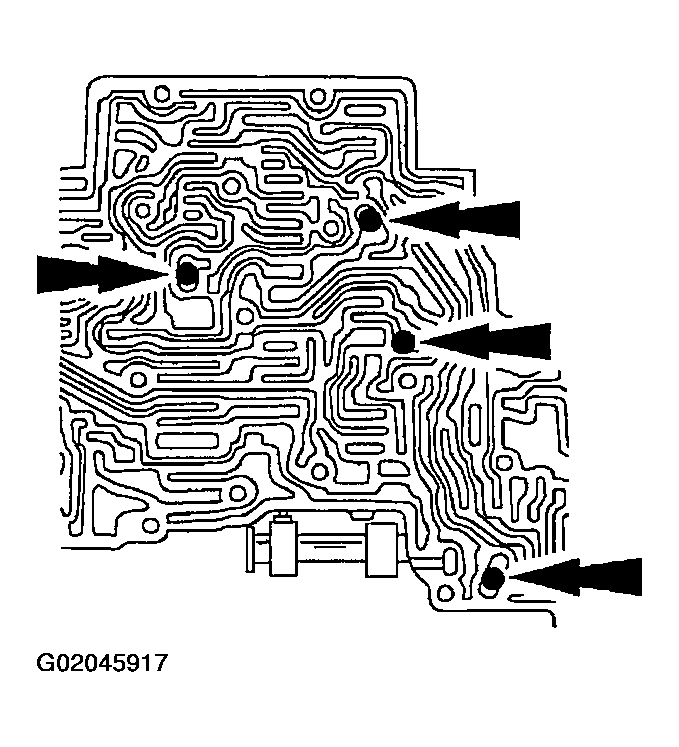

Fig 4: Installing Four Main Control Valve Body Check Balls
Courtesy of FORD MOTOR CO.
Install the dark color plastic converter relief valve and spring.

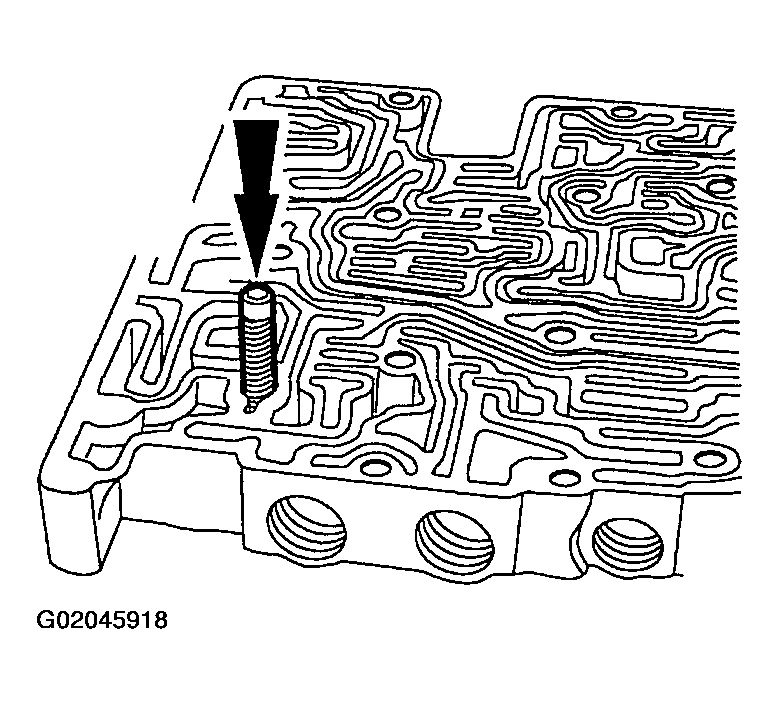

Fig 5: Installing Dark Color Plastic Converter Relief Valve & Spring
Courtesy of FORD MOTOR CO.
Install the extension housing lube orifice.

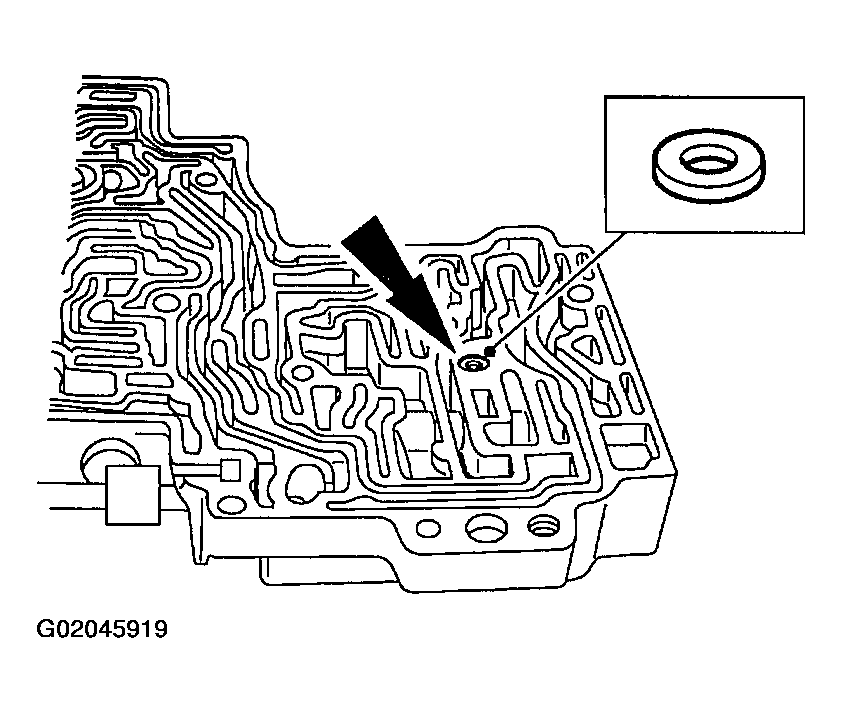

Fig 6: Installing Extension Housing Lube Orifice
Courtesy of FORD MOTOR CO.

NOTE: Apply petroleum jelly on the valve body separator plate to hold it in place on the main control.

NOTE: Use new bonded separator plate to main control.

Fig 7: Installing Main Control Valve Body Separator Plate-To-Main Control

Courtesy of FORD MOTOR CO.

Install the main control valve body separator plate to the main control.
Install the special tools into the main control valve body.

Fig 8: Installing Valve Body Aligners Into Main Control Valve Body
Courtesy of FORD MOTOR CO.
Tighten the screws.

Fig 9: Tightening Screws
Courtesy of FORD MOTOR CO.
Remove the special tools from the main control valve body.

Fig 10: Removing Valve Body Aligners From Main Control Valve Body
Courtesy of FORD MOTOR CO.
Rotate the main control valve body so the valve body separator plate is facing down.

CAUTION: All solenoid electrical connectors must face upward on installation.

NOTE: All shift solenoids are interchangeable.

NOTE: If the TCC valve came out during disassembly, use caution when installing the torque converter clutch solenoid.

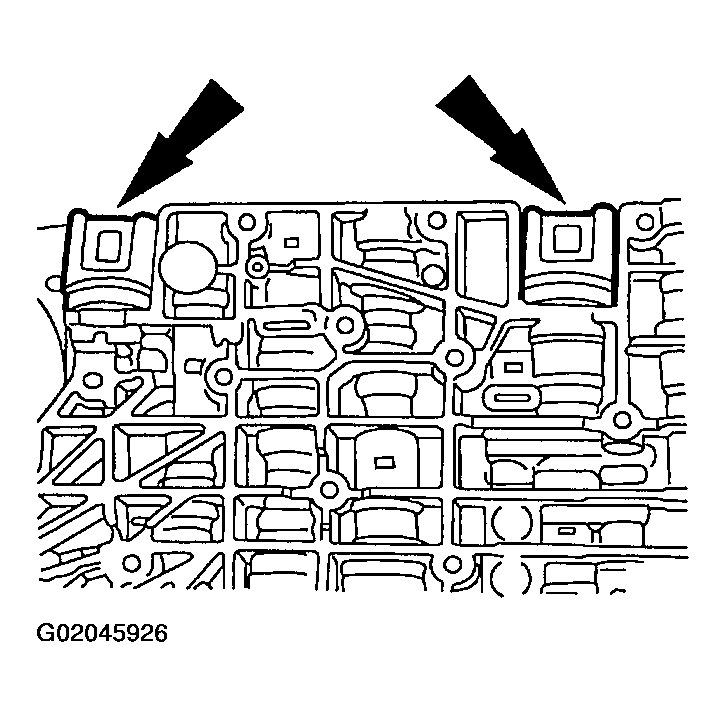

Fig 11: Installing SSB, SSD, TCC & EPC Solenoids

Courtesy of FORD MOTOR CO.

Install the SSB, SSD, TCC and EPC solenoids.
1. Install the TCC solenoid.
2. Install the SSB and SSD solenoids.
3. Install the EPC solenoid.

CAUTION: The solenoid clamp must be installed in the TCC and EPC solenoid grooves, shift solenoid pockets and the No. 204 plug.

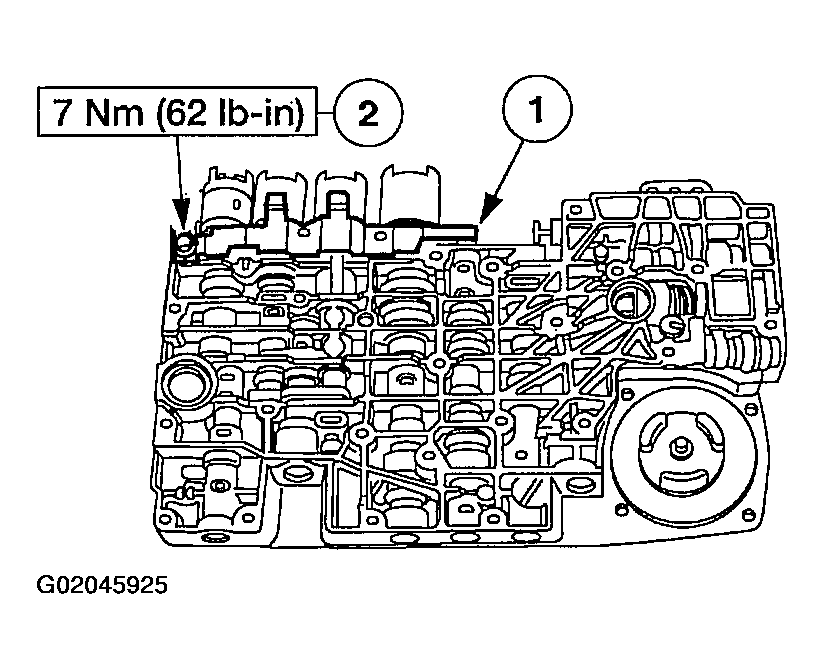

Fig 12: Installing Solenoid Clamp

Courtesy of FORD MOTOR CO.

Install the solenoid clamp and the screw.
1. Position the solenoid clamp on the main control valve body.
2. Install the screw.

CAUTION: The shift solenoid electrical terminals must face up on installation.

NOTE: The shift solenoids are interchangeable.

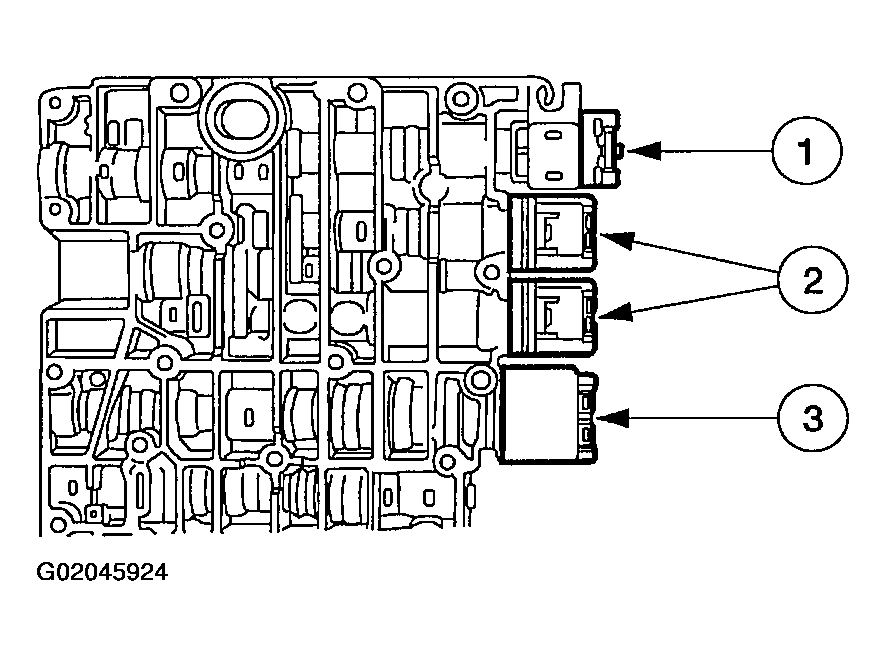

Fig 13: Installing SSA & SSC Shift Solenoids

Courtesy of FORD MOTOR CO.

Install the SSA and the SSC shift solenoids.
Install the solenoid clamp and the screw.
1. Position the solenoid clamp on the main control valve body.
2. Install the screw.

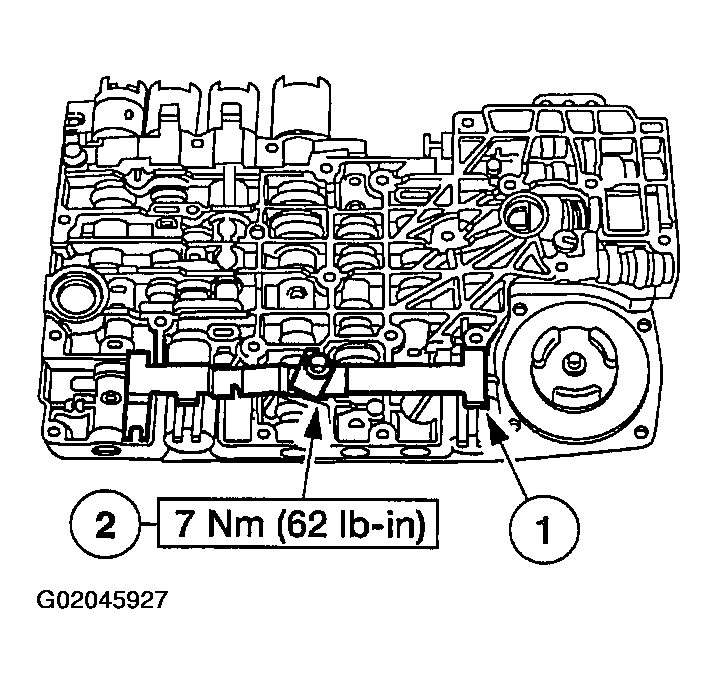

Fig 14: Installing Solenoid Clamp
