Overdrive Planetary Gears: Assembly

    NOTE: Thoroughly clean all parts and blow dry with moisture-free compressed air.
    NOTE: Use petroleum jelly to hold the No. 2 overdrive planetary thrust bearing in place.
  1. Install the No. 2 overdrive planetary thrust bearing.

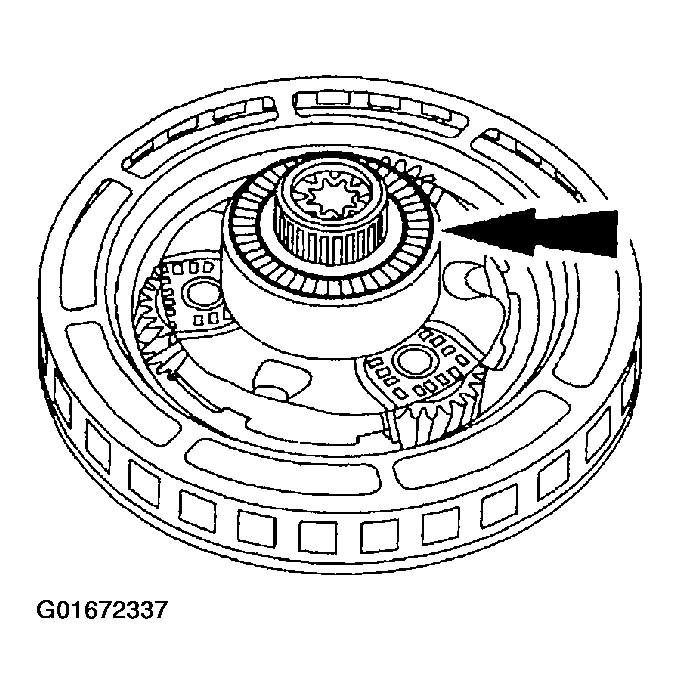

    2. Fig 1: Installing Overdrive Planetary Thrust Bearing
    G01672337Courtesy of FORD MOTOR CO.
  2. Install the overdrive planetary gear carrier into the center shaft and overdrive.

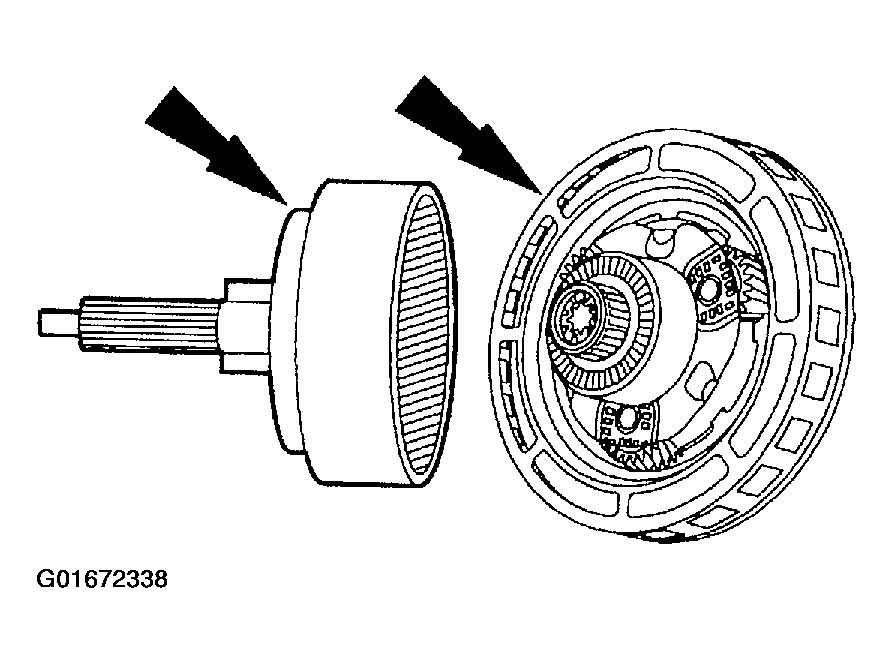

    3. Fig 2: Installing Overdrive Planetary Gear Carrier
    G01672338Courtesy of FORD MOTOR CO.
  3. Install the overdrive sun gear with the recessed gear teeth facing toward the adapter.

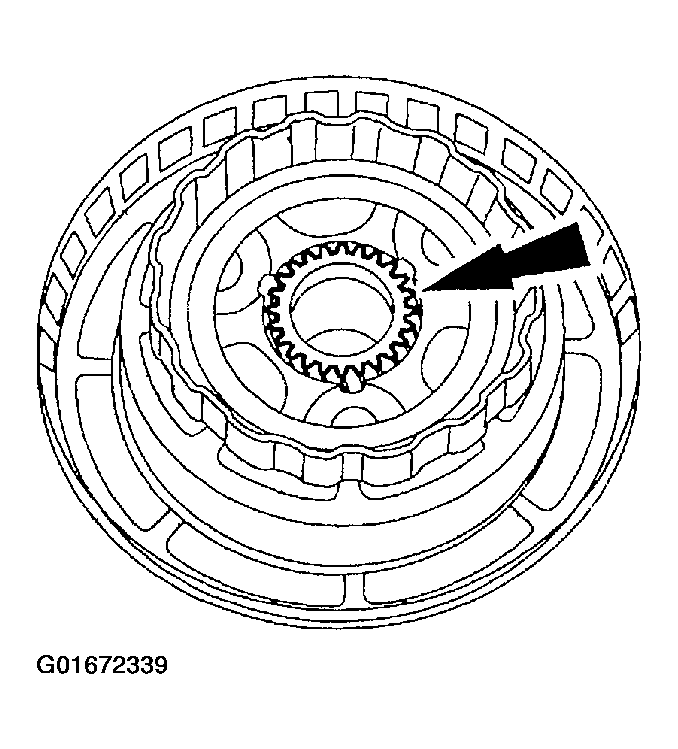

    4. Fig 3: Installing Overdrive Sun Gear
    G01672339Courtesy of FORD MOTOR CO.
    NOTE: Inspect the sun gear for damaged or worn teeth.
  4. Install the coast clutch-to-overdrive carrier adapter.

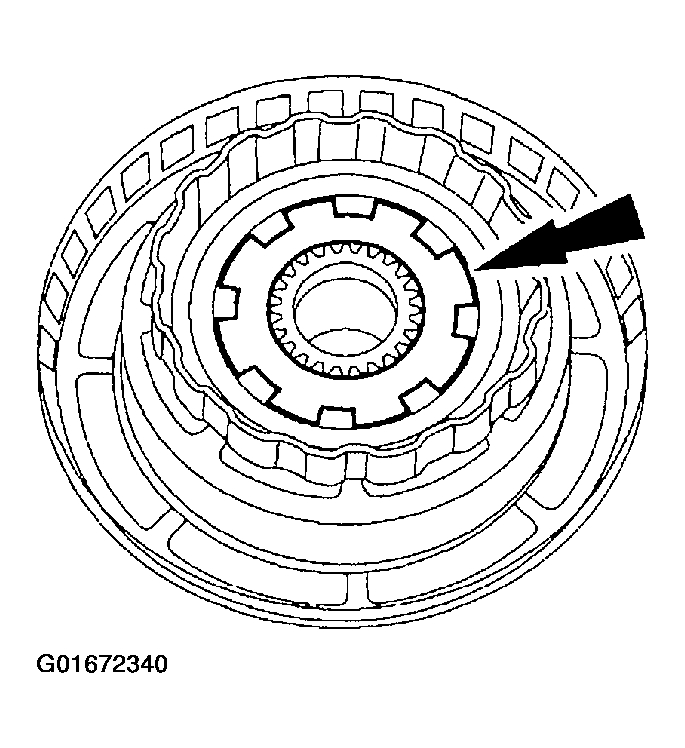

Fig 4: Installing Coast Clutch-To-Overdrive Carrier Adapter
G01672340Courtesy of FORD MOTOR CO.
