Switch, Push Button 4x4 Mode

WARNING: This page is about a different variant/trim than selected.

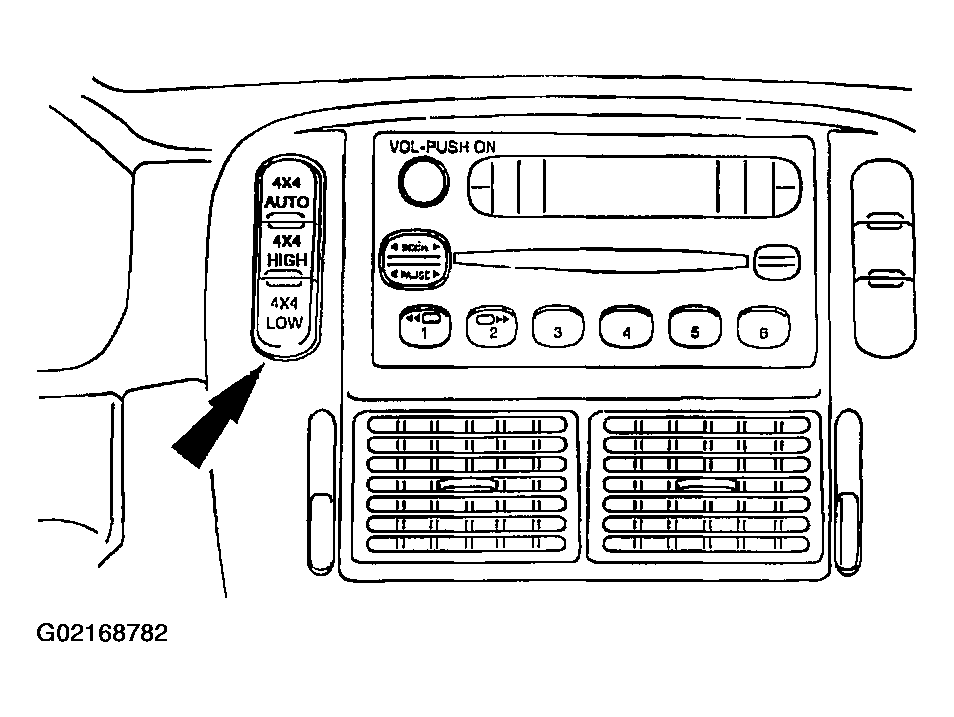

Fig 1: Identifying Switch, Push Button 4X4 Mode

Courtesy of FORD MOTOR CO.

The push button 4x4 mode switch, mounted on the instrument panel, allows the operator to select the 4x4 Auto, 4x4 High, and 4x4 Low transfer case operating modes. The indicator light, on the instrument cluster push button, will illuminate only when the 4x4 Low position is engaged.
