Disassembly And Assembly Of Subassemblies: Mainshaft: Assembly

CAUTION: Press the input shaft bearing onto the shaft by the inner race only. Pressing on the outer race will damage the bearing.

Using the special tools, press the input shaft bearing on the input shaft.
- Make sure the bearing is installed against fifth gear.

  Fig 1: Installing Fifth Gear Needle Bearing And Fifth Gear
  Courtesy of FORD MOTOR CO.
Place the special tool in a vise, then install the input shaft Install the input shaft locknut.

Fig 2: Installing Input Shaft Locknut
Courtesy of FORD MOTOR CO.

NOTE: Place the Bearing/Oil Seal Plate in a vise.

Rotate the input shaft and place it in the bearing/oil seal plate.

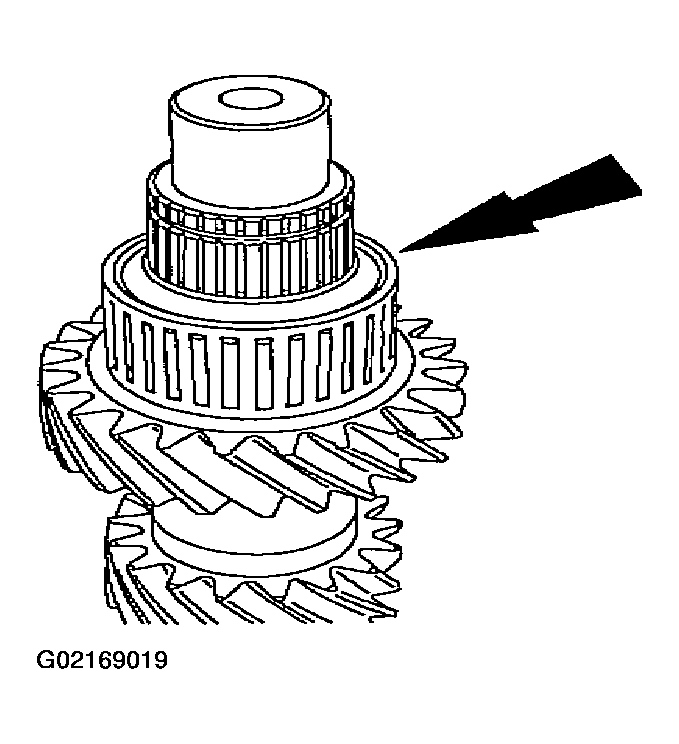

Install the third gear needle bearing.

Fig 3: Installing Third Gear Needle Bearing
Courtesy of FORD MOTOR CO.

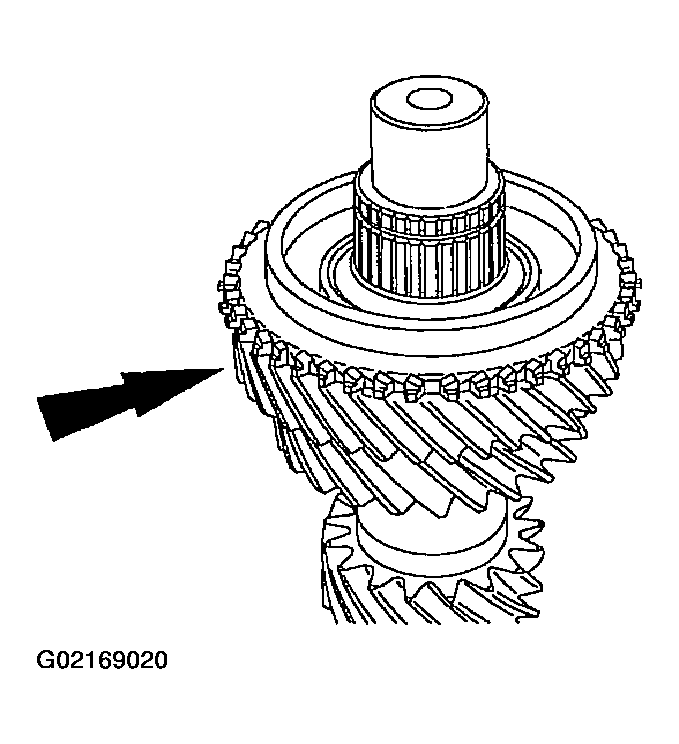

Install third gear.

Fig 4: Installing Third Gear
Courtesy of FORD MOTOR CO.
Assemble the third and fourth gear synchronizer.

Fig 5: Assembling Third And Fourth Gear Synchronizer
Courtesy of FORD MOTOR CO.

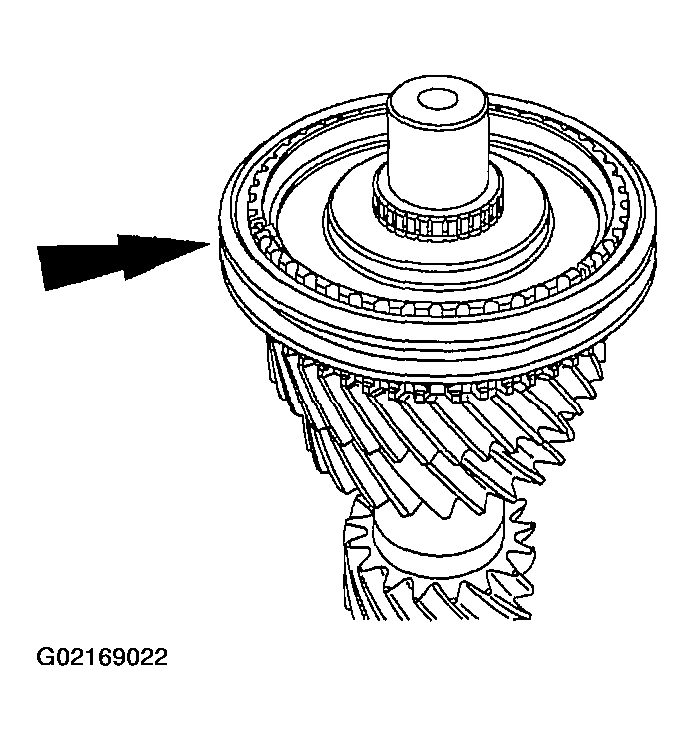

Install the third and fourth gear synchronizer assembly.
- Move the synchronizer sliding sleeve to the center position.

  Fig 6: Installing Third And Fourth Gear Synchronizer Assembly
  Courtesy of FORD MOTOR CO.

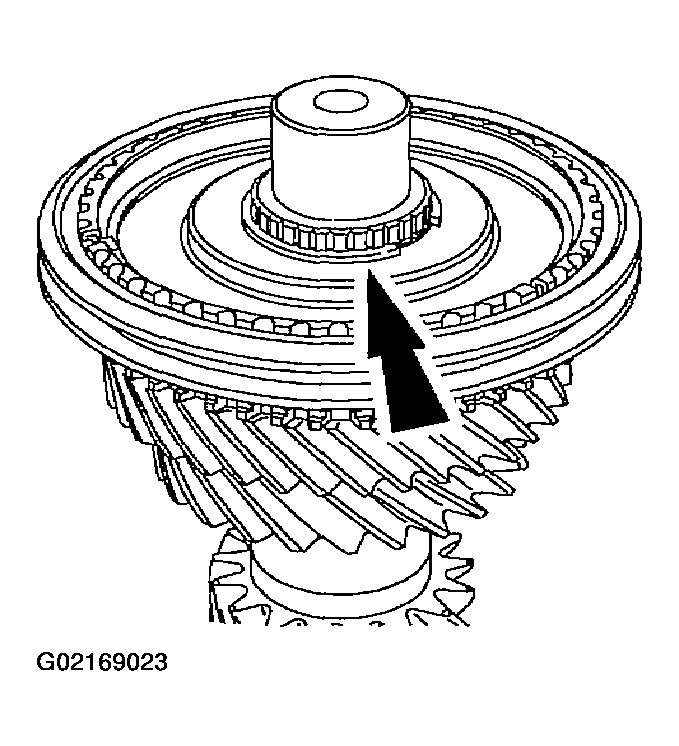

Install the retaining ring.

Fig 7: Installing Retaining Ring
Courtesy of FORD MOTOR CO.

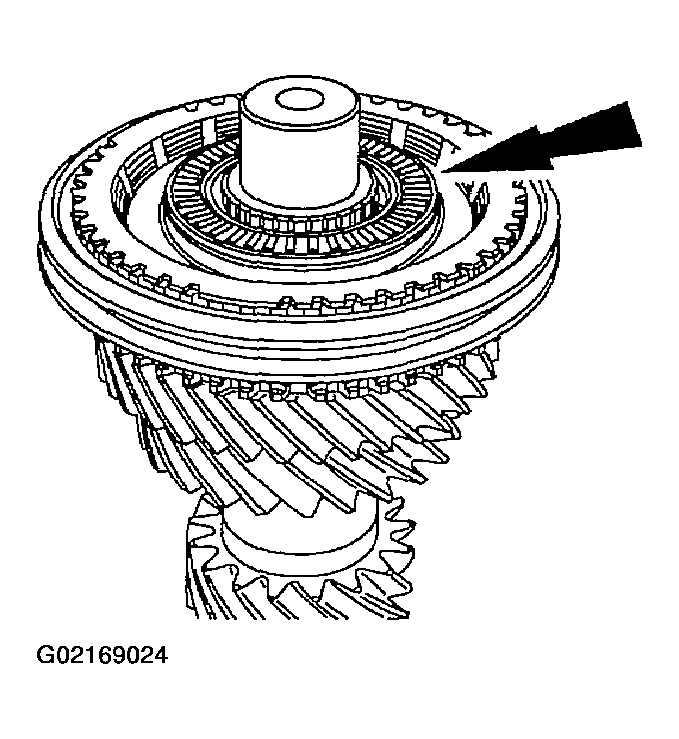

Install the needle bearing.

Fig 8: Installing Needle Bearing
Courtesy of FORD MOTOR CO.

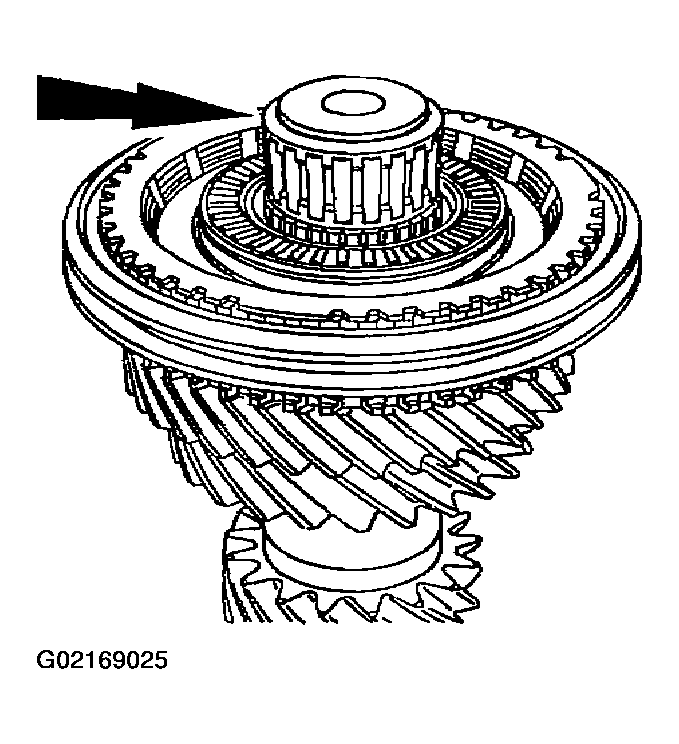

Install the input shaft needle bearing.

Fig 9: Installing Input Shaft Needle Bearing
Courtesy of FORD MOTOR CO.
