Front Toe Adjustment

  1. Start the engine (6007) and center the steering wheel (3600).
    Fig 1: Identifying Steering Wheel Position
    G03428273Courtesy of FORD MOTOR CO.
  2. Turn the engine off, and hold the steering wheel in the "straight forward" position using a suitable holding device.
    3. NOTE: Do not allow the steering gear bellows to twist when the front wheel spindle tie-rod (3280) is rotated.

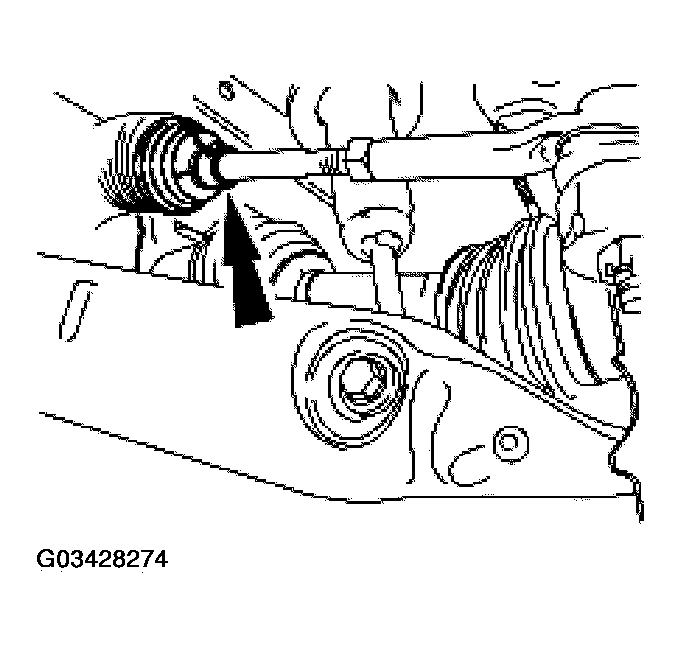

    Fig 2: Locating Clamp
    G03428274Courtesy of FORD MOTOR CO.
  3. Remove the clamps.
  4. Loosen the nuts.
    • Clean and lubricate the nut(s) and front wheel spindle tie-rod threads.

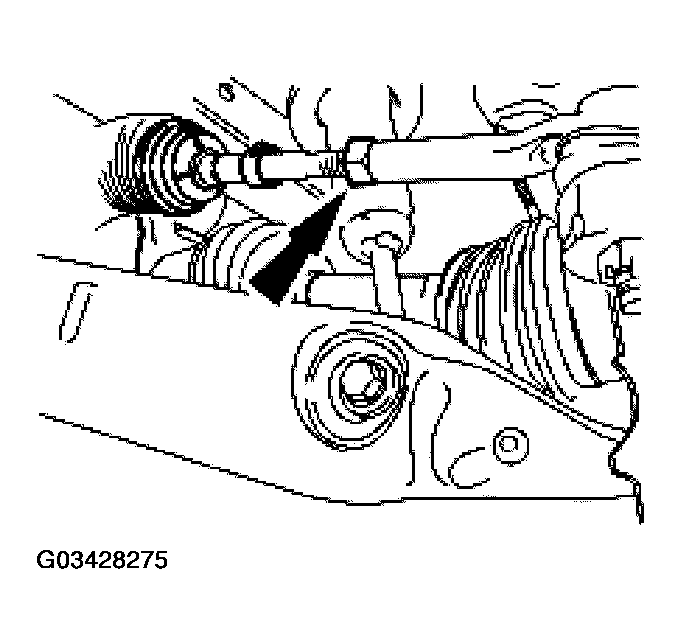

    Fig 3: Locating Nut
    G03428275Courtesy of FORD MOTOR CO.
  5. Rotate the front wheel spindle tie-rods.

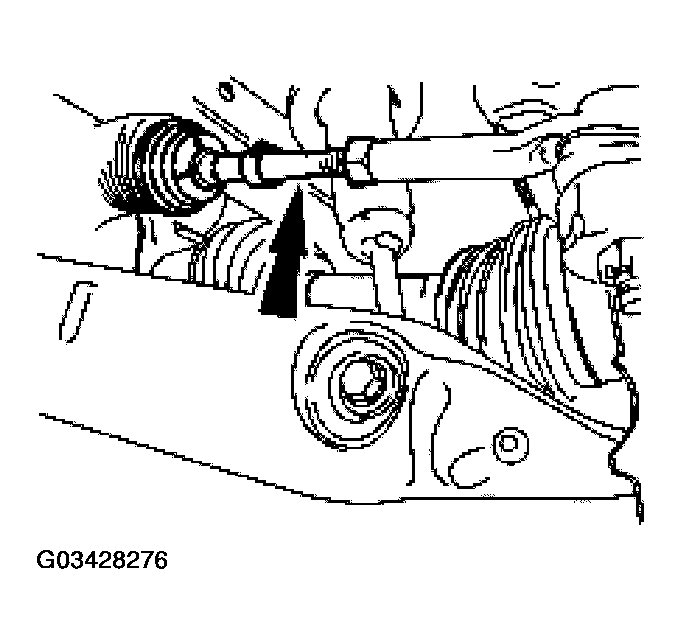

    Fig 4: Identifying Front Wheel Spindle Tie-Rods
    G03428276Courtesy of FORD MOTOR CO.
  6. Start the engine and recenter the steering wheel.
    • Recheck the toe settings and adjust if necessary.
    Fig 5: Centering Steering Wheel
    G03428277Courtesy of FORD MOTOR CO.
    7. CAUTION: Make sure to hold the tie-rod end stationary with a wrench while tightening the nut or damage to the boot can occur.
    NOTE: Make sure that the toe settings are not disturbed while tightening the nuts.

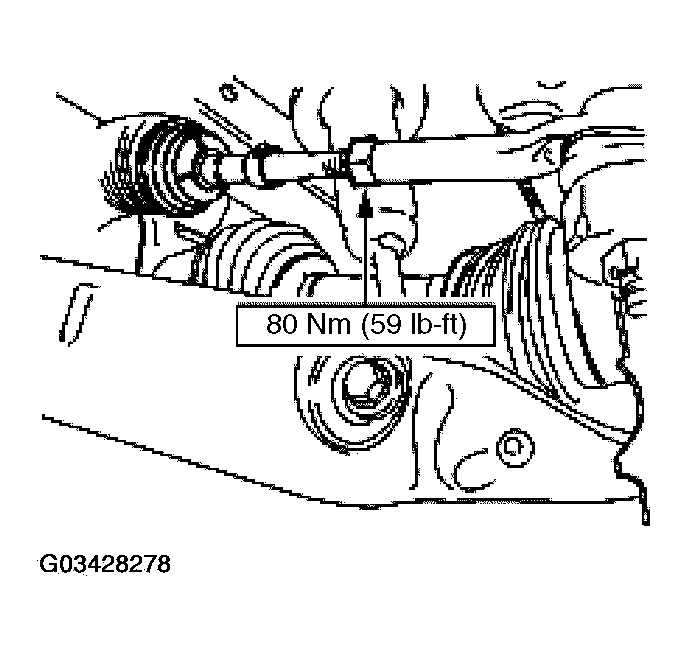

    Fig 6: Locating Nut
    G03428278Courtesy of FORD MOTOR CO.
  7. Tighten the nuts.
  8. Install the clamps.
    Fig 7: Installing Clamp
    G03428279Courtesy of FORD MOTOR CO.
