Symptom Chart

NOTE: Refer to the Wiring Diagrams for connector numbers stated in the Pinpoint Tests.

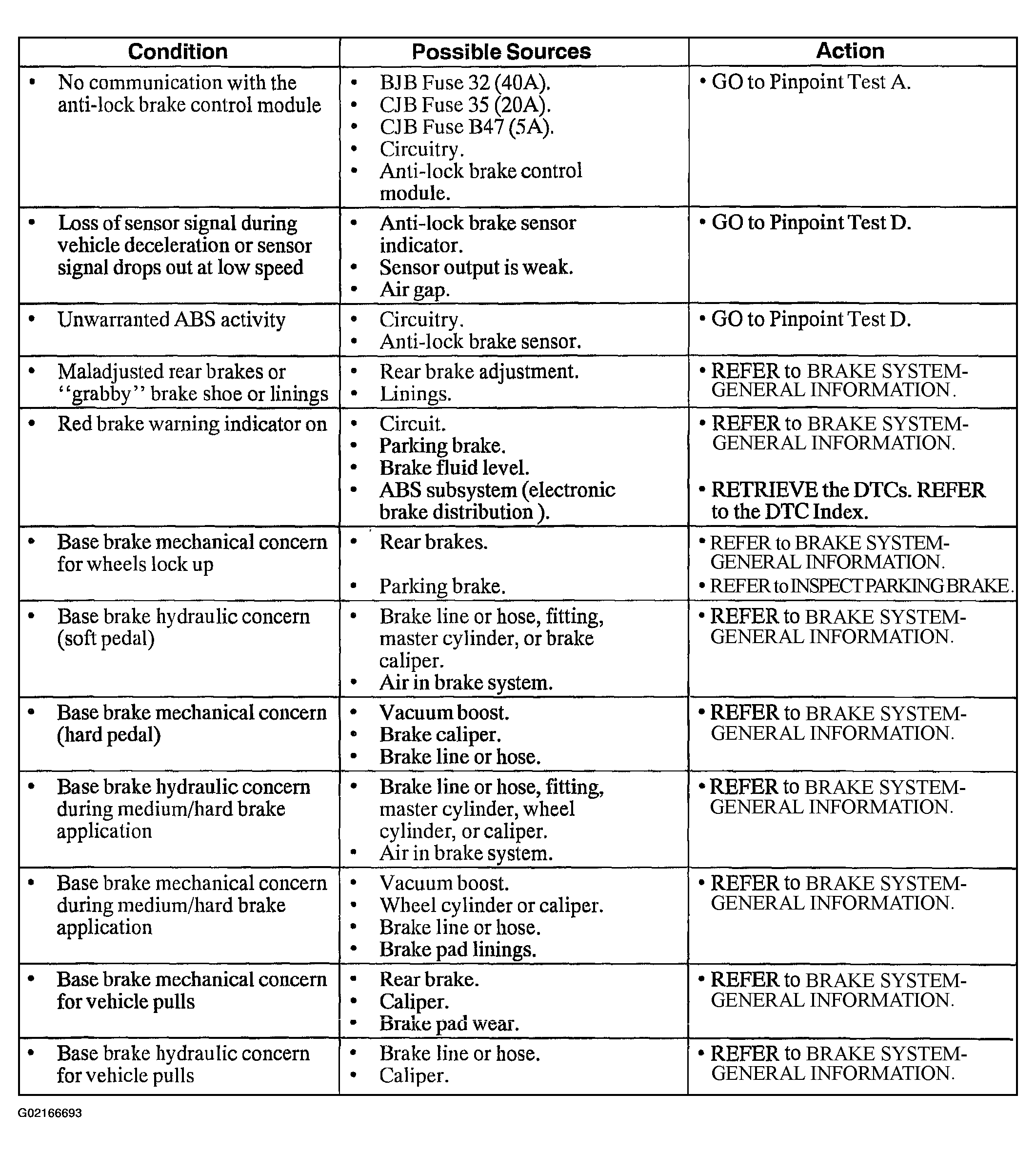

Fig 1: Symptom Diagnosing And Testing Chart (1 Of 2)
G02166693Courtesy of FORD MOTOR CO.

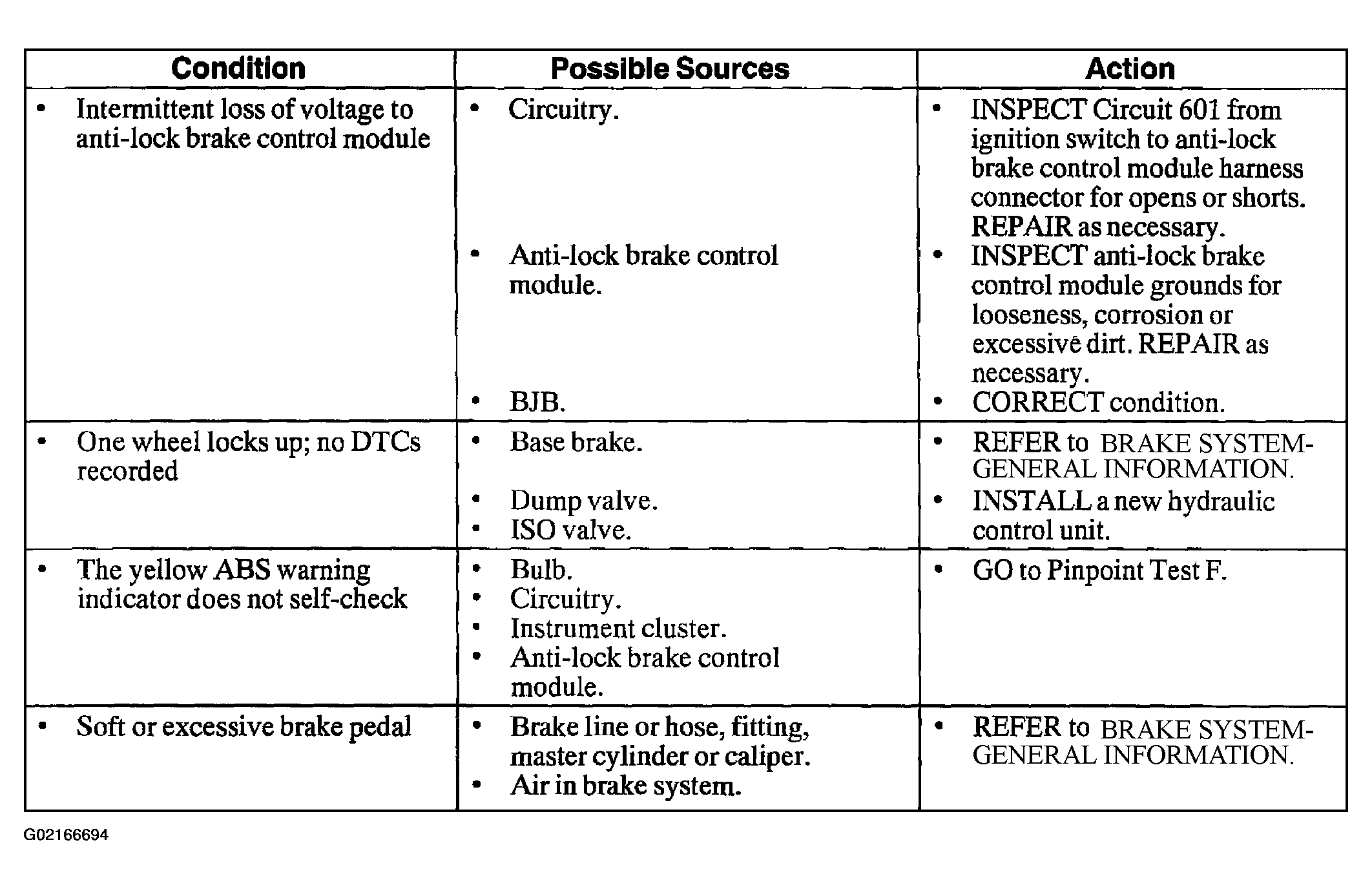

Fig 2: Symptom Diagnosing And Testing Chart (1 Of 2)
G02166694Courtesy of FORD MOTOR CO.
