In-Vehicle Repair: Flexplate: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Position the flexplate (6375) and install the bolts.

    Tighten the bolts in two stages:

    • Stage 1: Loosely install the bolts.
    • Stage 2: Tighten the bolts in sequence shown.

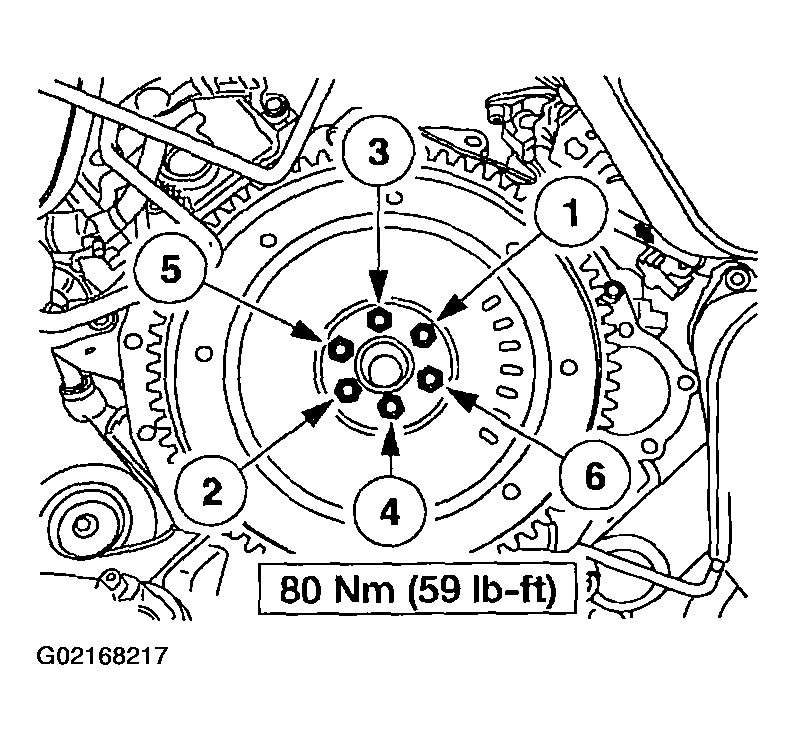

      Fig 1: Positioning Flexplate And Install Bolts
      G02168217Courtesy of FORD MOTOR CO.
  2. Install the transmission. For additional information, refer to REMOVAL & INSTALLATION - A/T .
