Reverse Brake Drum: Check

    NOTE: The reverse one-way clutch is part of the reverse brake drum assembly. Install a new reverse brake drum as an assembly only.
  1. Inspect the reverse brake drum assembly and install a new reverse brake drum assembly if damaged.
    1. Inspect the reverse brake drum sprags.
    2. Inspect the reverse brake drum rollers.
    3. Inspect the reverse brake drum.

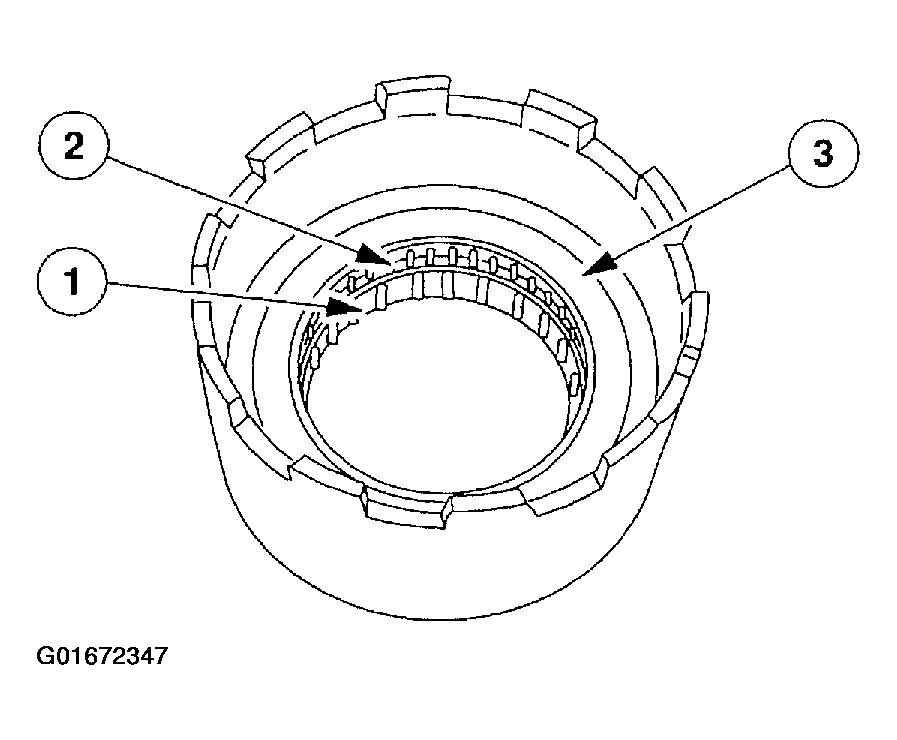

Fig 1: Inspecting Reverse Brake Drum
G01672347Courtesy of FORD MOTOR CO.
