Overdrive Planetary and One-Way Clutch Assembly: Assembly

  1. Install the center shaft and one-way clutch.
    1. Install the center shaft and one-way clutch.
    2. Install the center shaft retaining ring.

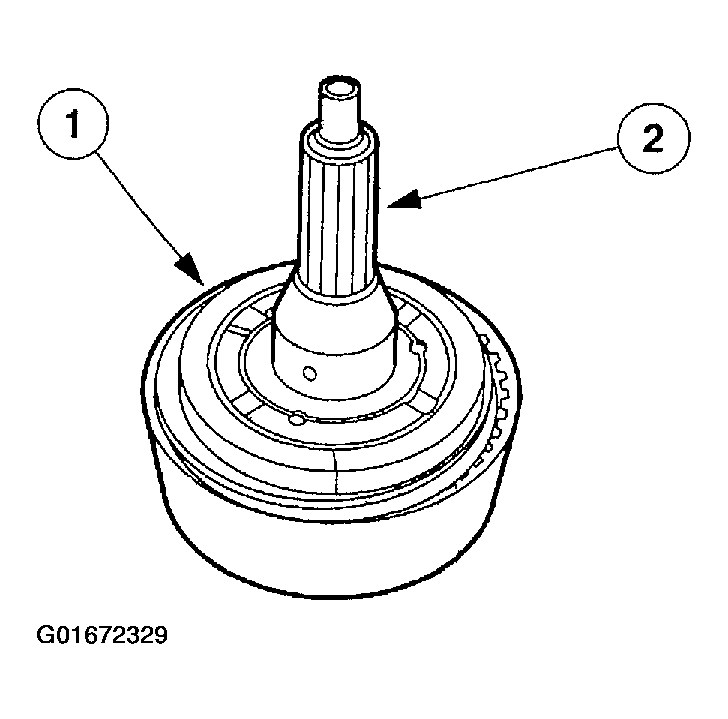

Fig 1: Installing Center Shaft & One-Way Clutch
G01672329Courtesy of FORD MOTOR CO.
