Pinpoint Test F: The Yellow Abs Warning Indicator Does Not Self-Check

CAUTION: Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.

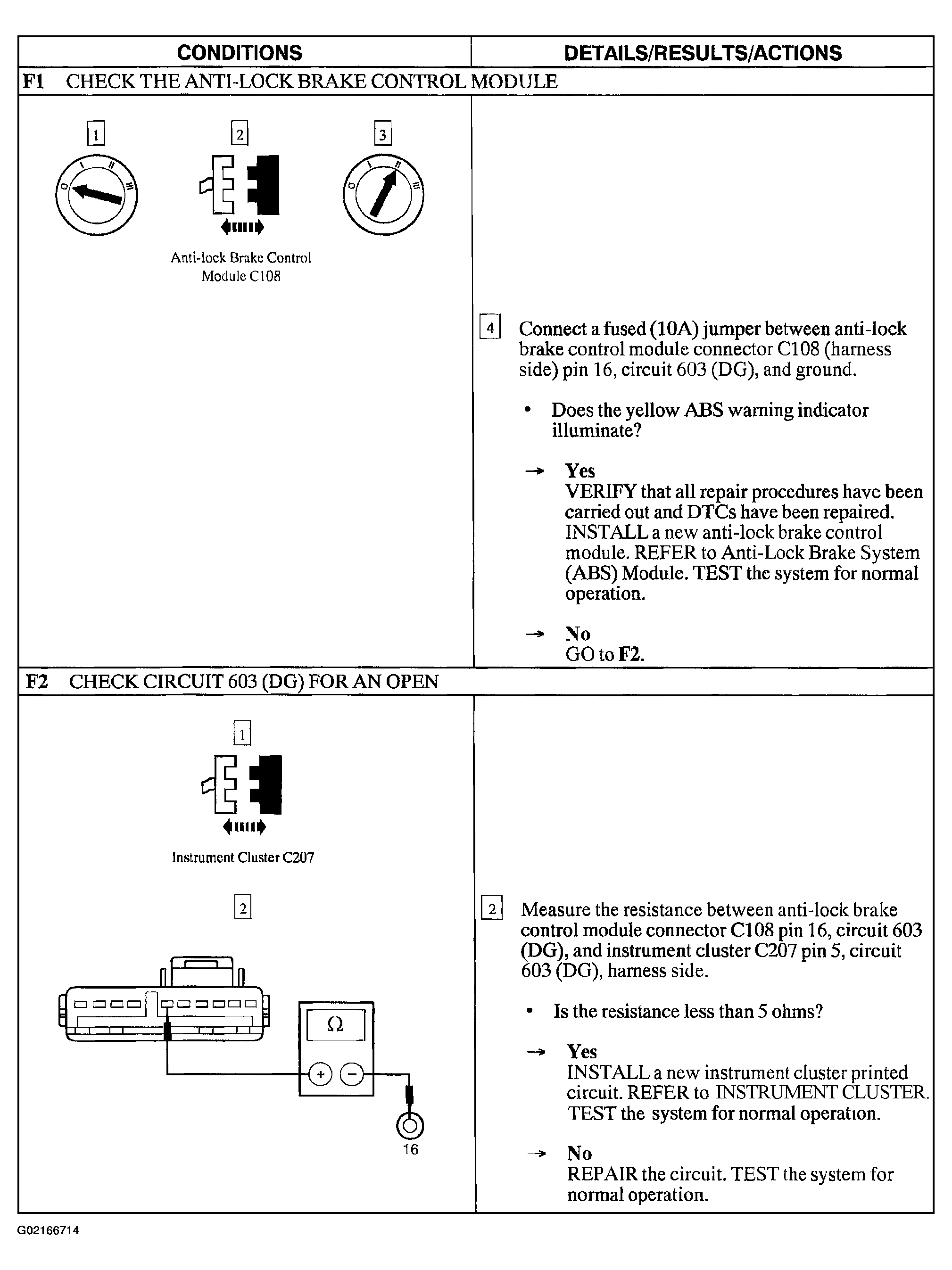

Fig 1: Pinpoint Test F Chart: Yellow ABS Warning Indicator Does Not Self-Check

Courtesy of FORD MOTOR CO.
