Transmission Case: Assembly

  1. Install a new seal and the case plug.

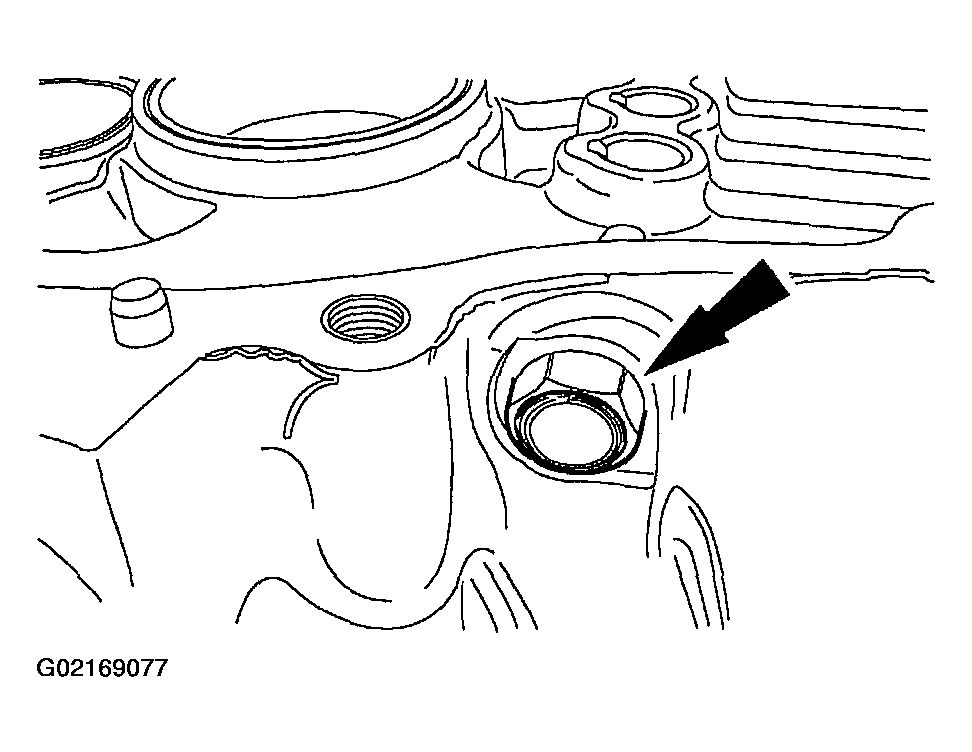

    Fig 1: Installing New Seal
    G02169077Courtesy of FORD MOTOR CO.
  2. Using the special tool, install a new input shaft oil seal.

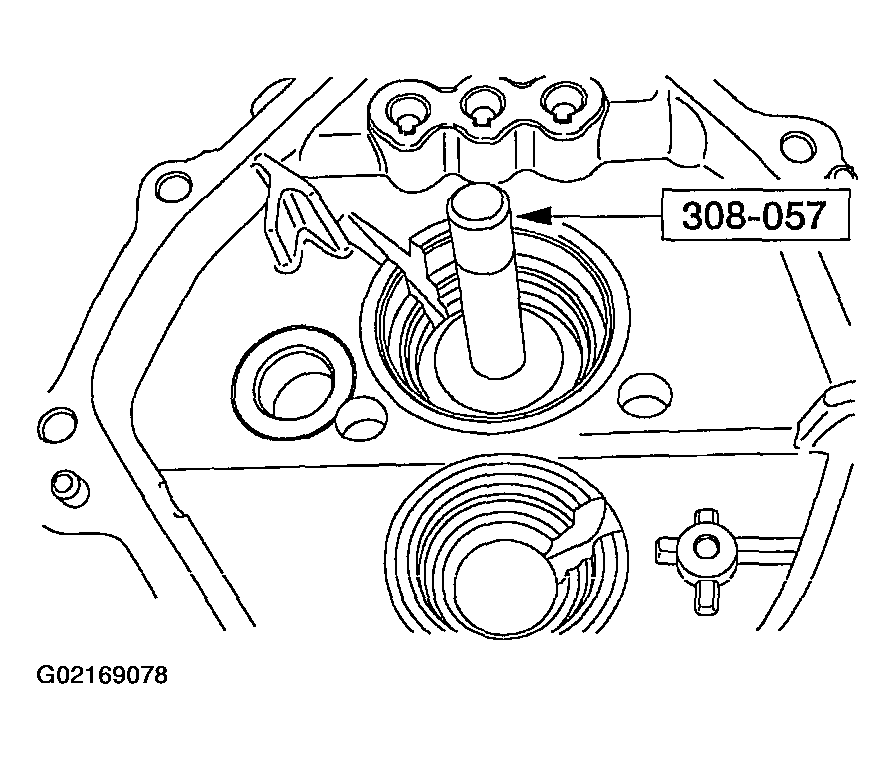

    Fig 2: Installing New Input Shaft Oil Seal
    G02169078Courtesy of FORD MOTOR CO.
  3. Install the input shaft bearing cup and countershaft front bearing cup.

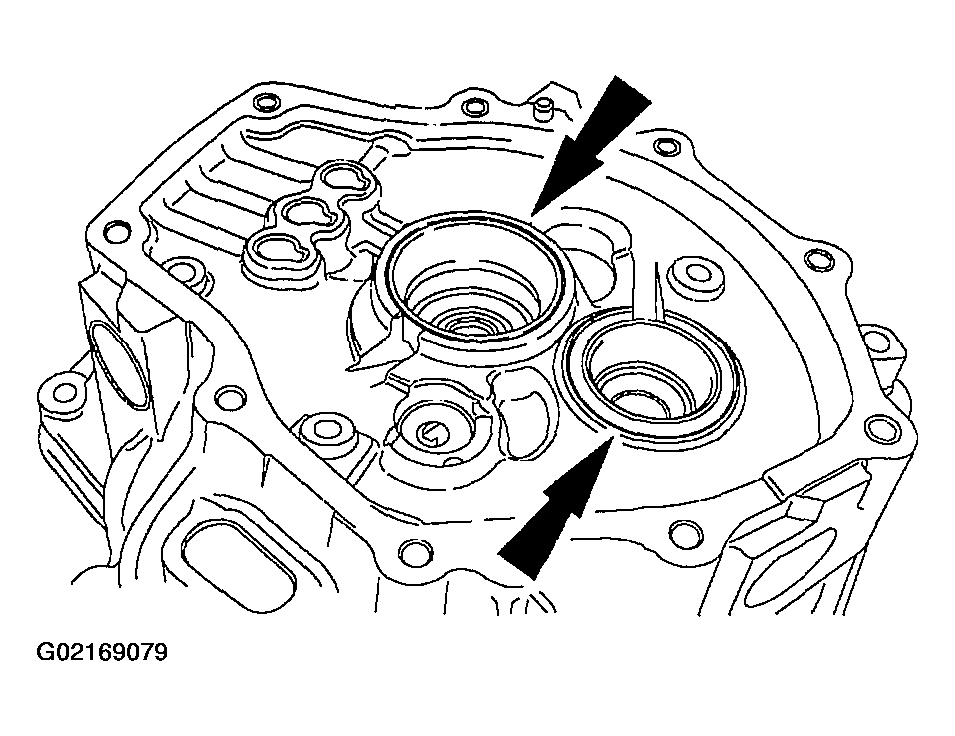

    Fig 3: Installing Input Shaft Bearing Cup
    G02169079Courtesy of FORD MOTOR CO.
  4. Install the oil troughs.

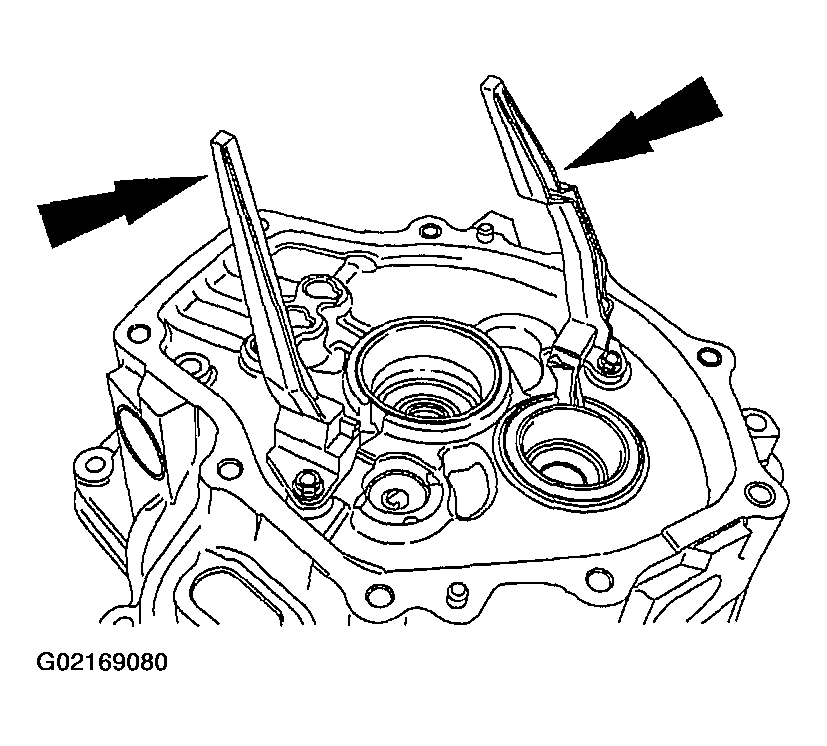

    Fig 4: Installing Oil Troughs
    G02169080Courtesy of FORD MOTOR CO.
