Removal and Installation

CAUTION: Use a shop cloth or equivalent to prevent damage to the instrument panel when prying the instrument panel center finish panel.

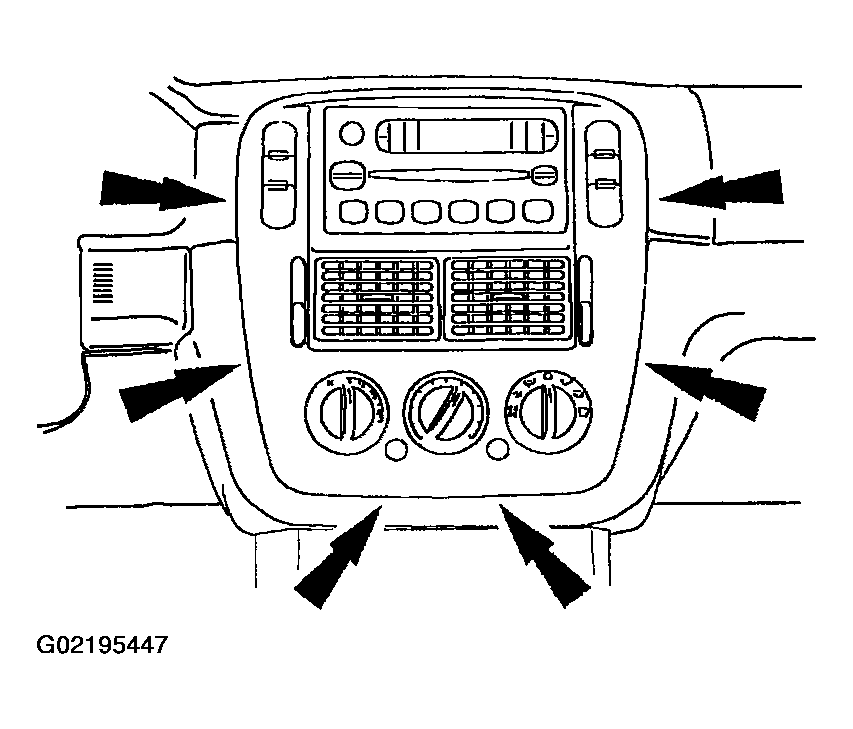

Fig 1: Disengaging Center Instrument Panel Finish Panel Retaining Clips

Courtesy of FORD MOTOR CO.

Carefully pry and disengage the center instrument panel finish panel retaining clips.
Disconnect the electrical connector.

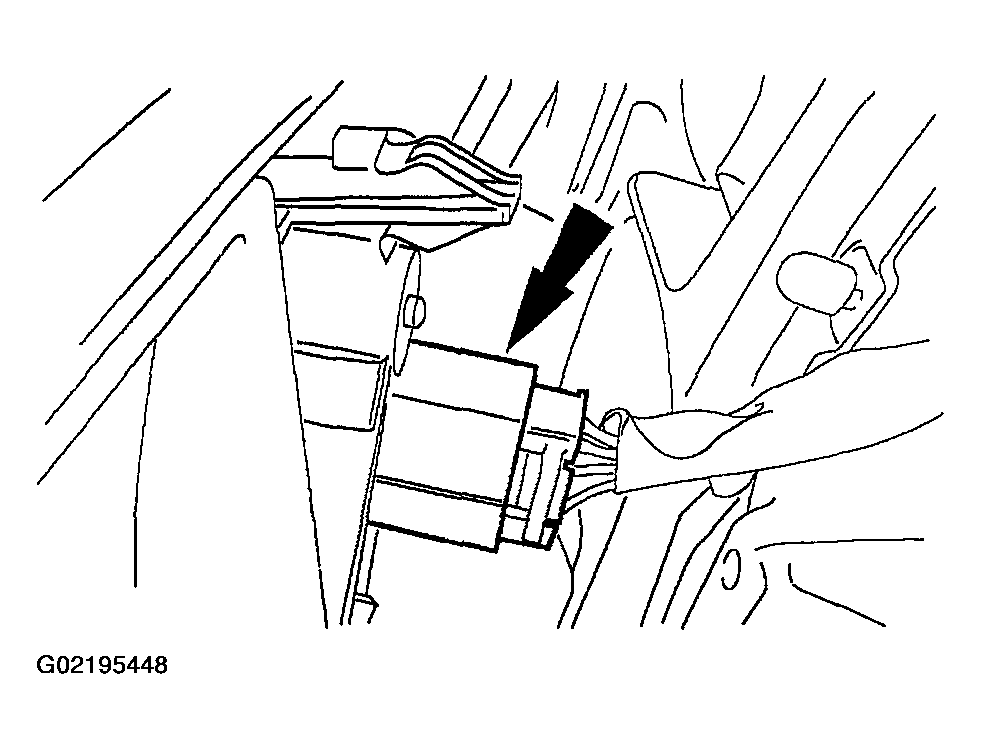

Fig 2: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.
Disconnect the electrical connectors and the vacuum connector.

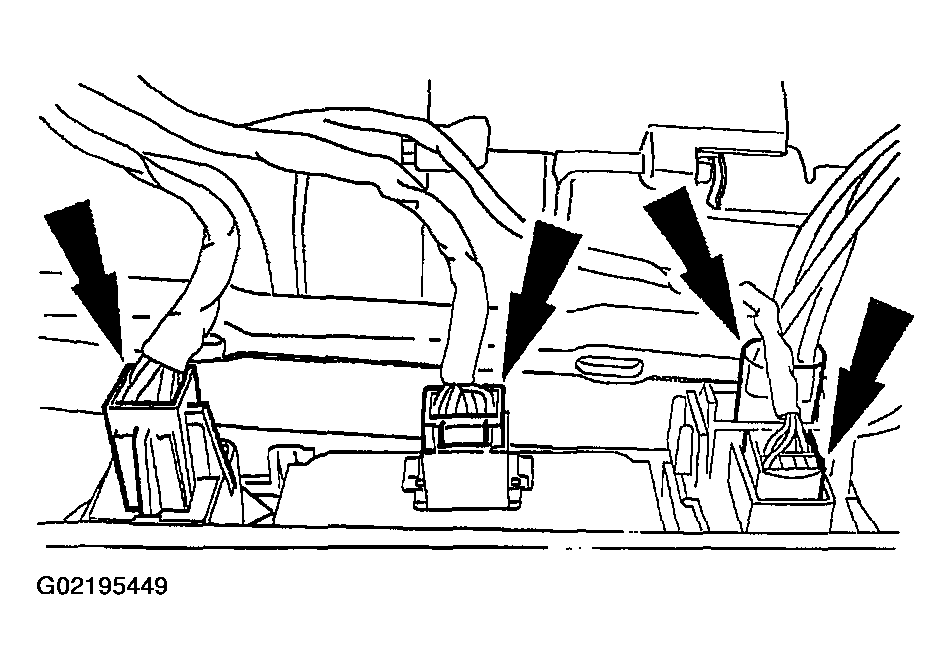

Fig 3: Disconnecting Electrical Connectors And Vacuum Connector
Courtesy of FORD MOTOR CO.
Remove the screws and remove the manual climate control assembly.
- Remove the function selector switch if needed. For additional information, refer to FUNCTION SELECTOR SWITCH .
- Remove the blower motor switch if needed. For additional information, refer to BLOWER MOTOR SWITCH .

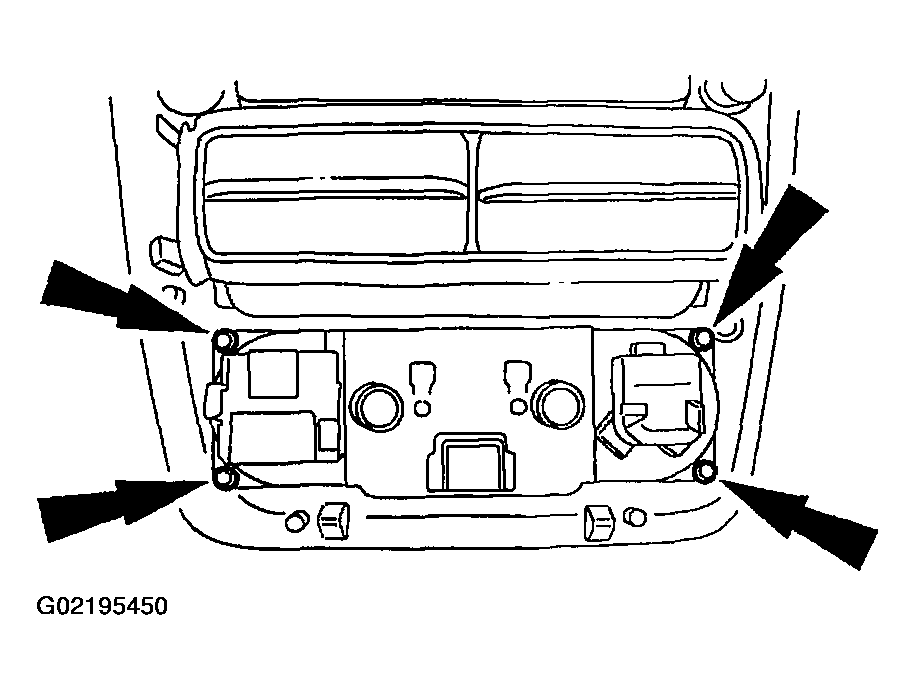

Fig 4: Removing Manual Climate Control Assembly
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
