Removal and Installation

Disconnect the battery ground cable (14301). For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the window control switch plate assembly from the door trim panel (14B133).
- Pry the front of the plate assembly upward to release the front hold down clip.
- Slide the plate assembly forward to release rear tab.
- Remove the plate assembly.

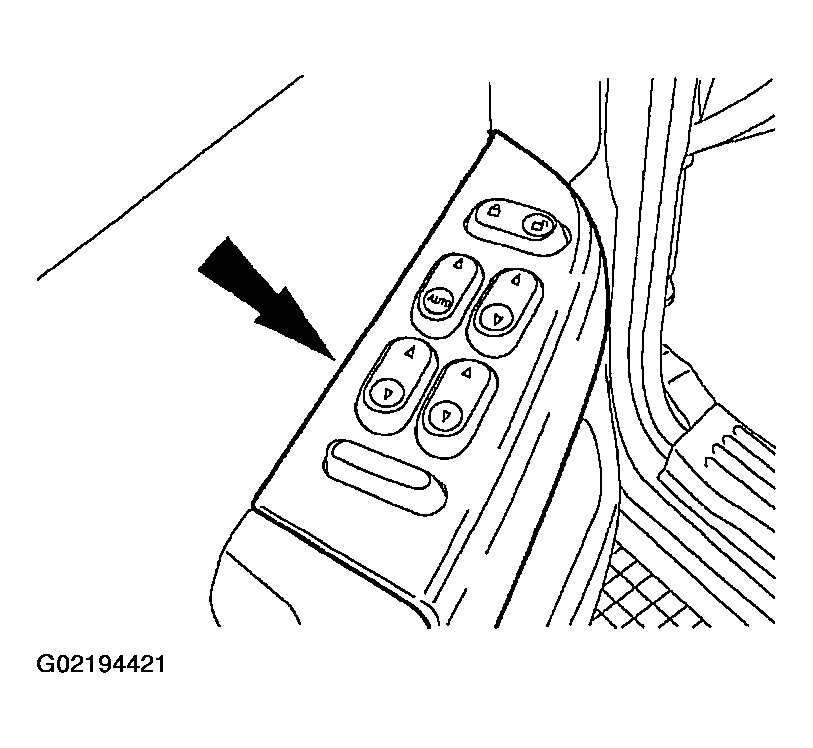

Fig 1: Removing Window Control Switch Plate Assembly From Door Trim Panel
Courtesy of FORD MOTOR CO.
Disconnect the window switch electrical connectors.

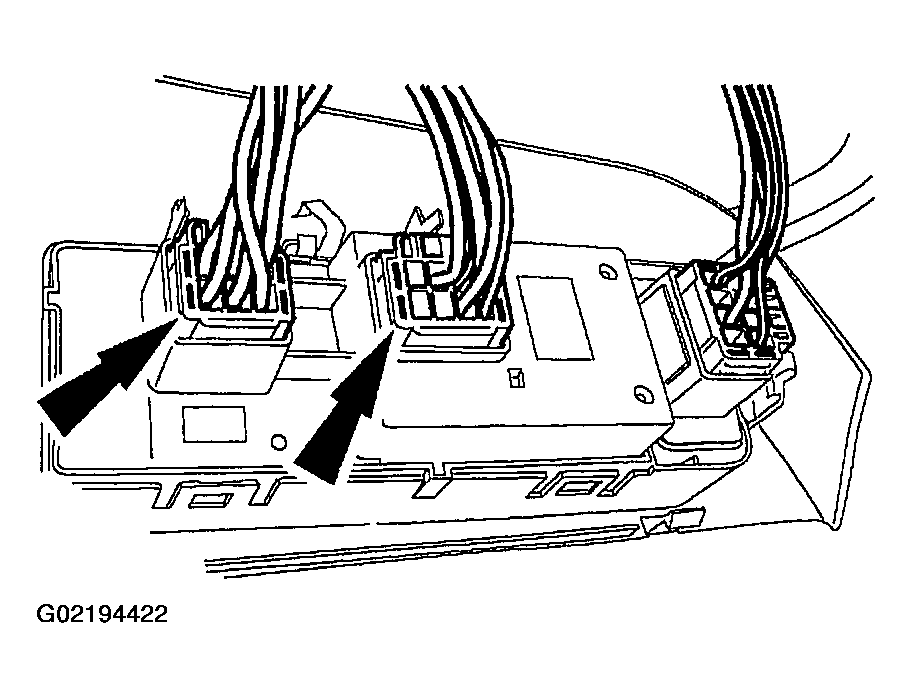

Fig 2: Disconnecting Window Switch Electrical Connectors
Courtesy of FORD MOTOR CO.
Remove the window control switch from the plate.
- Pry the release tabs.
- Remove the window control switch.

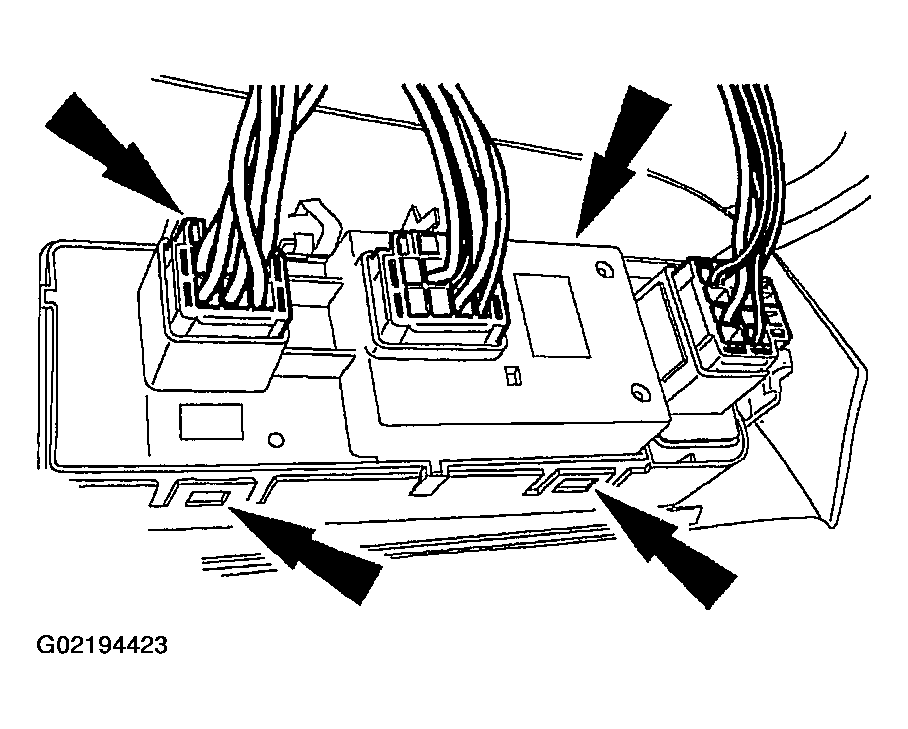

Fig 3: Removing Window Control Switch From Plate
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
